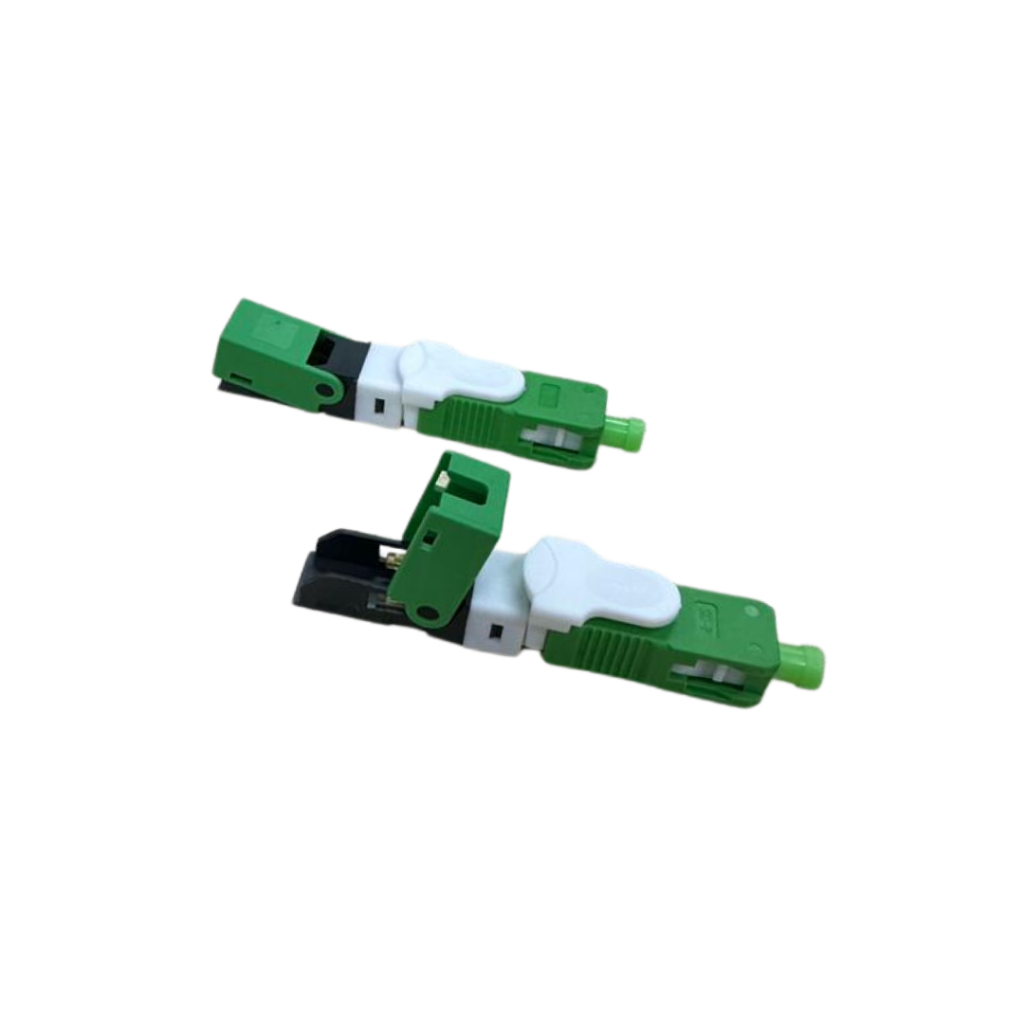

100 Pcs FTTH SC APC Fiber Optic Connector FASC Connector FC101

🔧 100 Pcs FTTH SC/APC Fiber Optic Fast Connector (FASC) – FC101
Upgrade your FTTH installation with this SC/APC Fast Connector, designed for quick, reliable, and low-loss fiber termination without the need for fusion splicing. Ideal for technicians, contractors, and field installations.

🔴 Key Features
✔ Fast Installation (No Splicing Required)
Easy to install within minutes using simple tools – perfect for on-site termination.

✔ High Performance & Low Loss
Insertion Loss (IL): ≤ 0.3 dB (1310 / 1490 / 1550 nm)
Return Loss (RL): ≥ 55 dB (1310 / 1490 / 1550 nm)
Ensures stable signal transmission with minimal attenuation.

✔ Pre-Polished Ferrule
Factory-polished for consistent quality and reliable connection performance.

✔ Reusable Design
Can be re-terminated if installation needs adjustment.

✔ Wide Compatibility
Suitable for FTTH drop cable and indoor fiber cable (typically 2.0×3.0mm / 3.0mm).

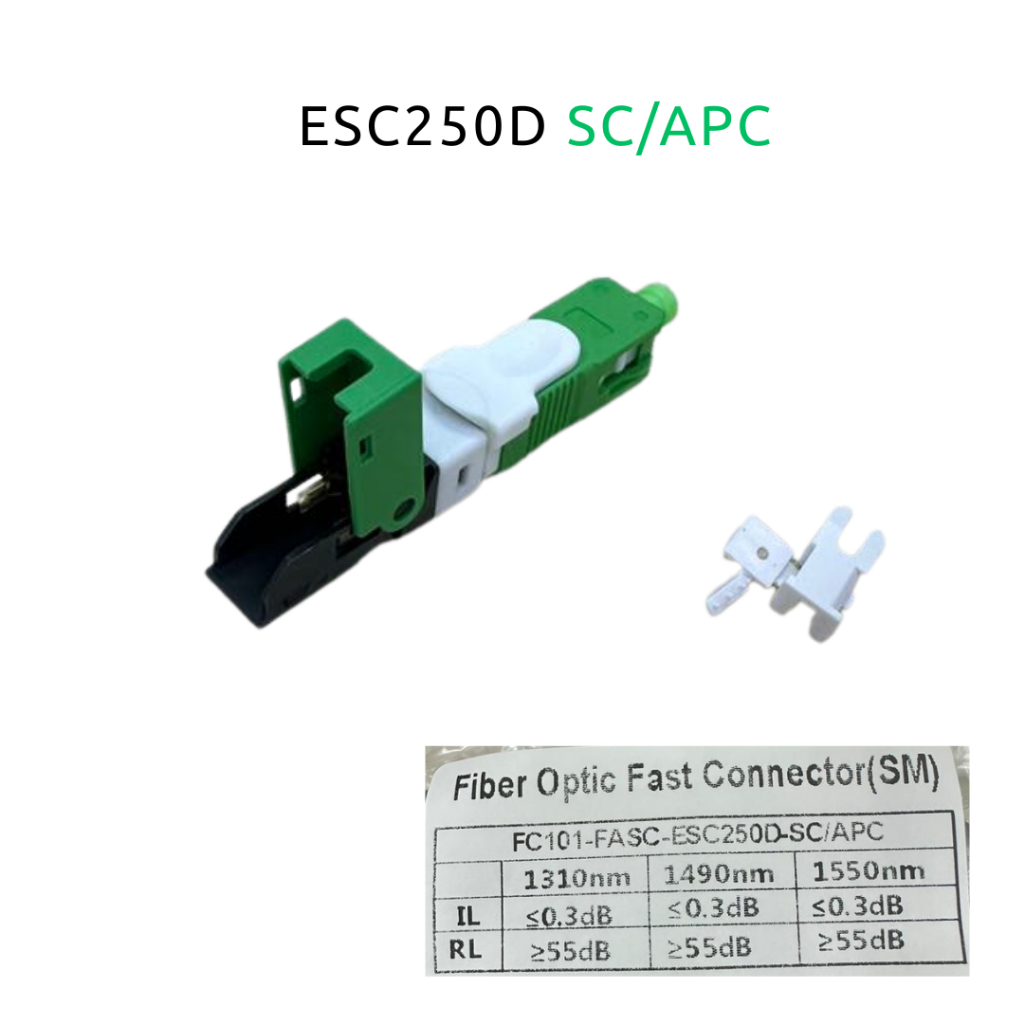

📦 Product Specifications
Connector Type: SC/APC
Type: Fast Connector (FASC)
Applicable Fiber: Single Mode
Cable Diameter: 2.0×3.0mm
Insertion Loss (IL): ≤ 0.3 dB
Return Loss (RL): ≥ 55 dB
Wavelength: 1310nm / 1490nm / 1550nm
Color: Green (SC/APC standard)

🧰 Application
FTTH (Fiber To The Home) installation
Telecom network deployment
Fiber patch cord repair
Emergency fiber restoration
Field termination work

📦 Package Includes

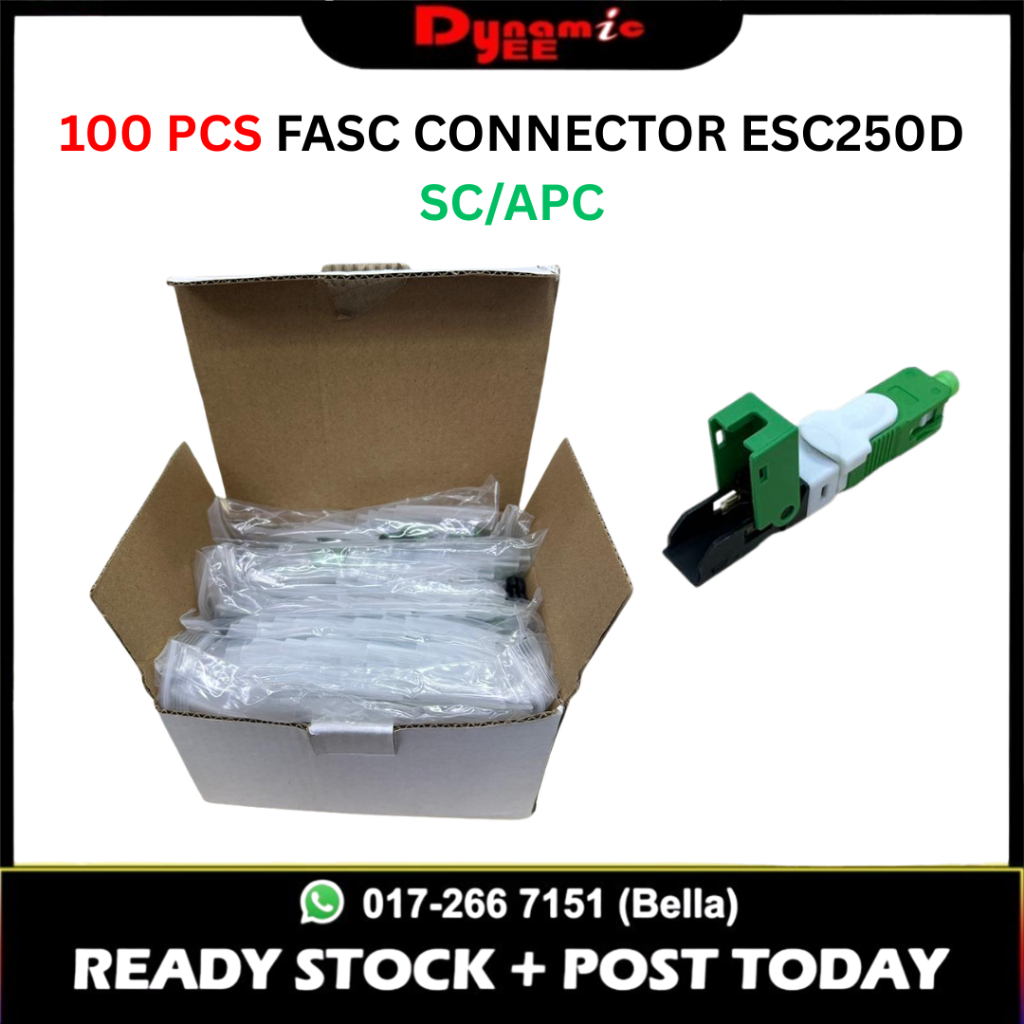

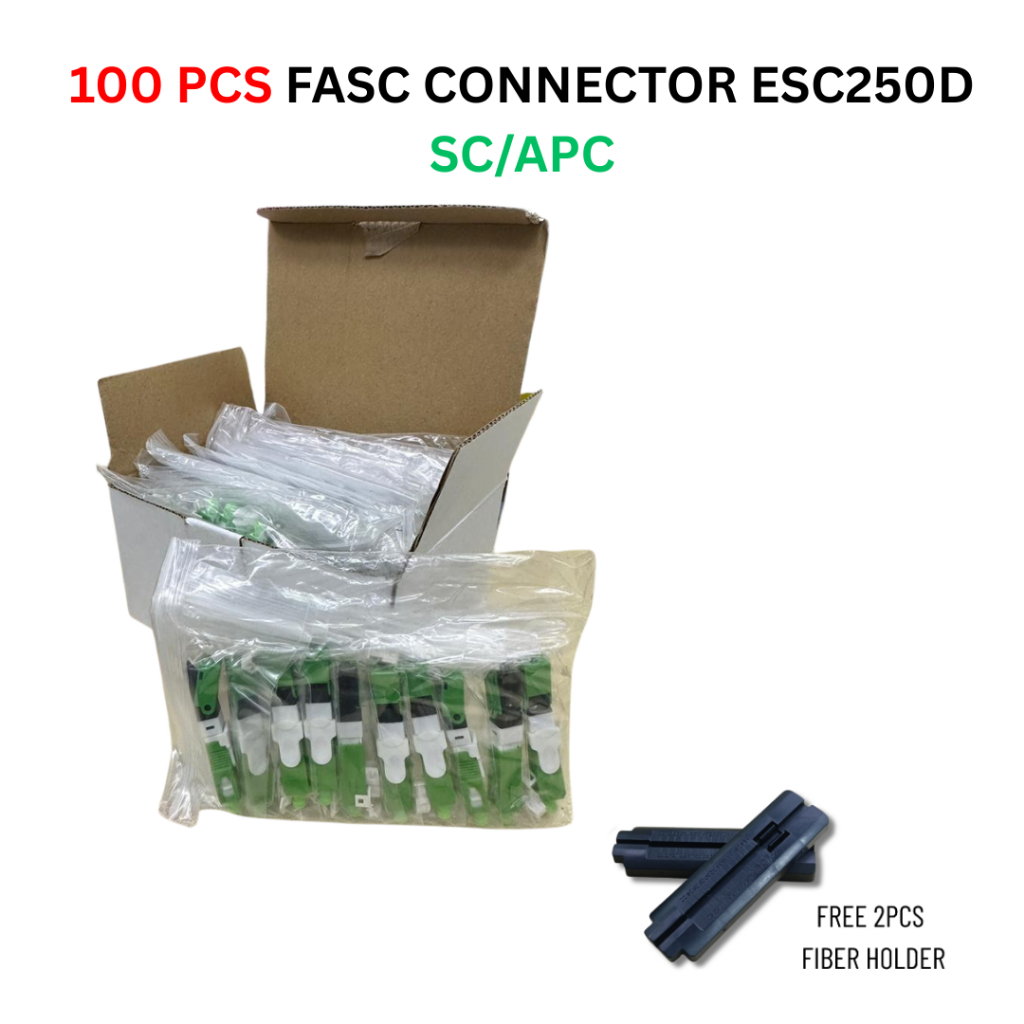

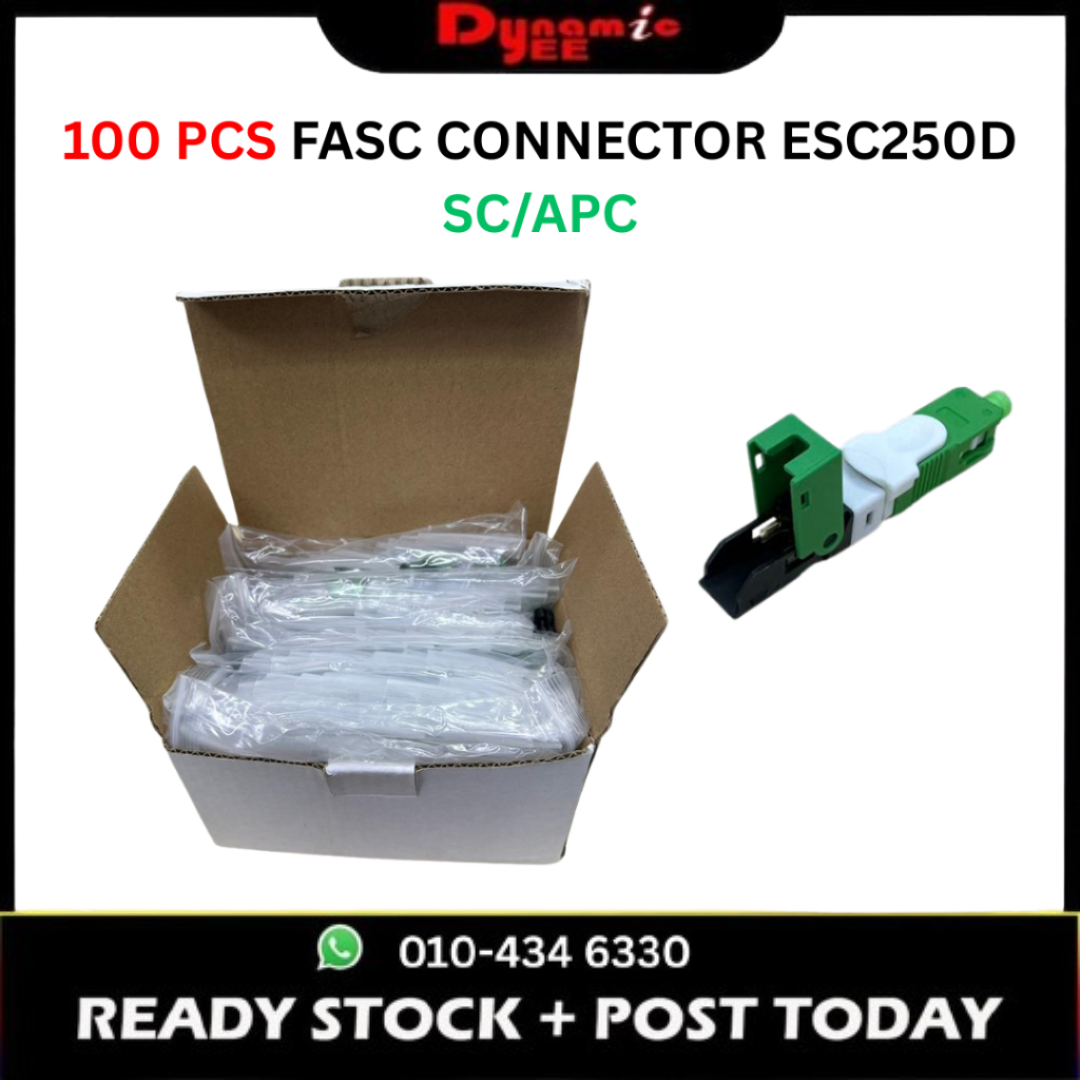

100 × SC/APC Fast Connector (FASC)
