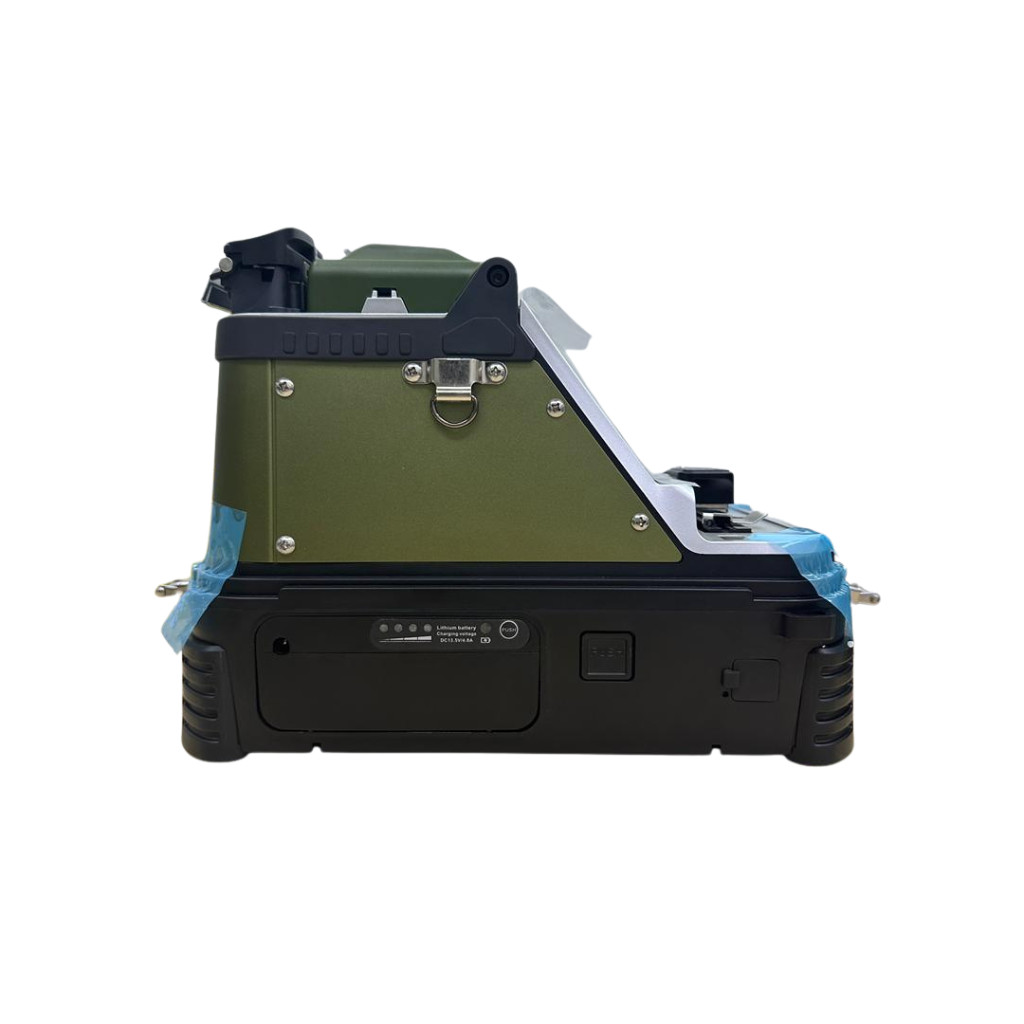

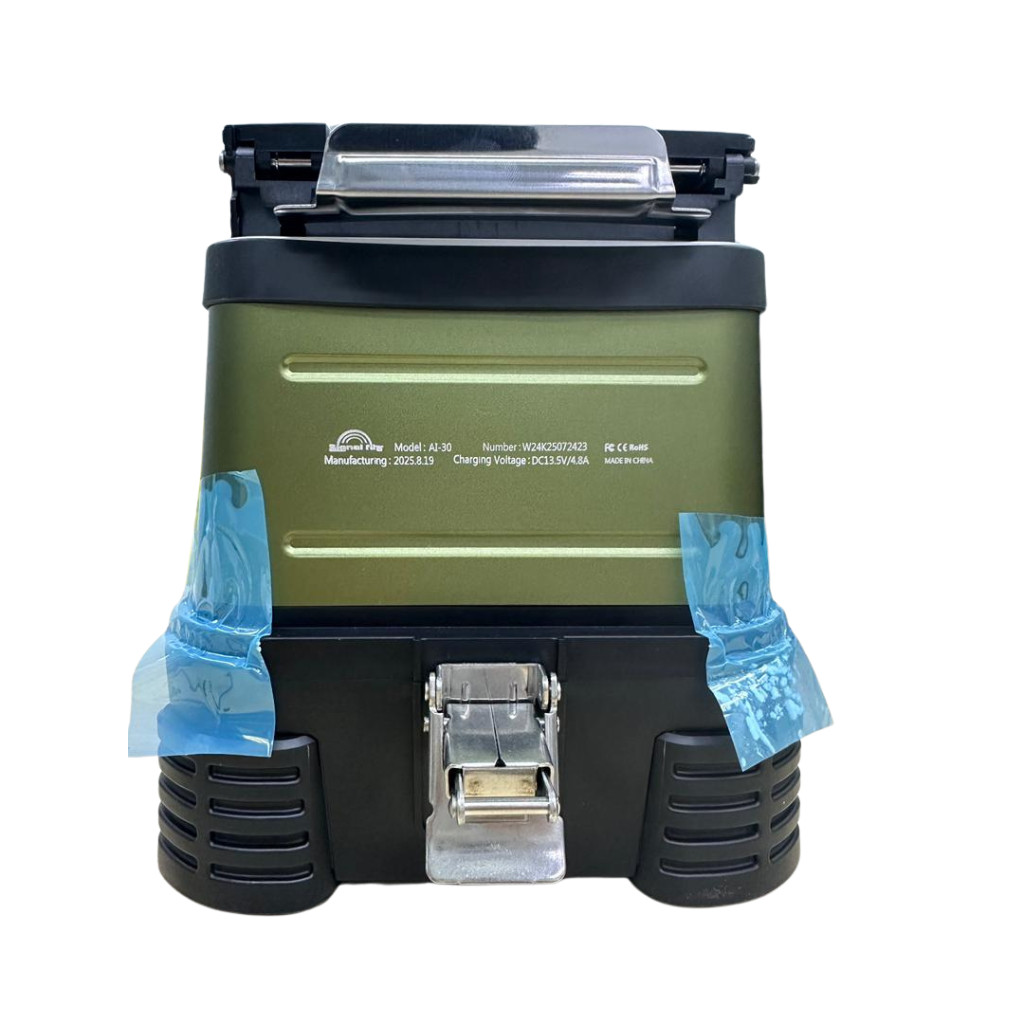

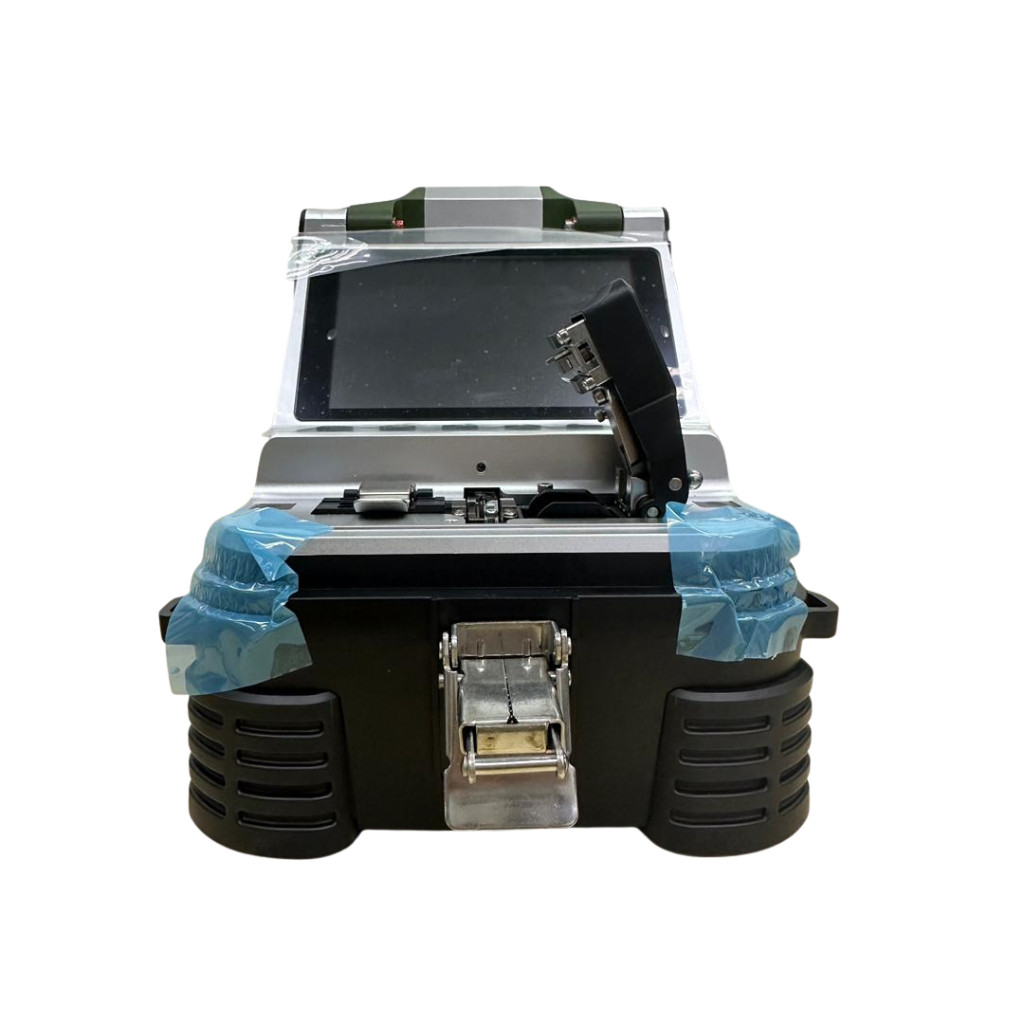

📌 Signal Fire AI-30 – 4th Generation Fiber Fusion Splicer
The AI-30 is Signal Fire’s latest 6-motor core alignment fusion splicer, designed for mainline fiber projects, FTTH, telecom and data centers. Compact, intelligent, and highly integrated, it combines splicing, heating, cleaving, OPM, and VFL functions in one professional tool.
🔹 Key Features
6 Motors Core Alignment – precision up to 0.05 µm for stable, low-loss splicing
Ultra-fast Speed – splicing in ~6 s, heating in ~15 s

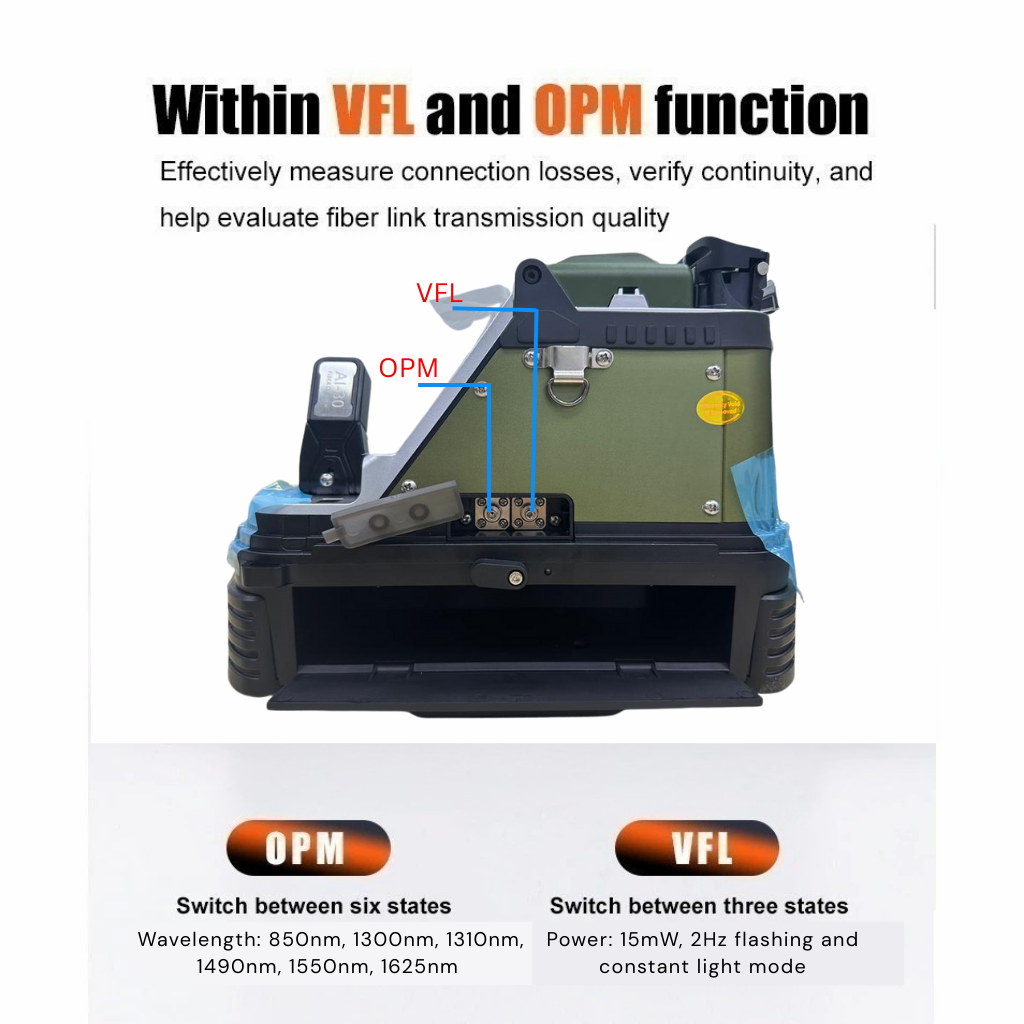

Built-in OPM & VFL – power meter range –50 to +30 dBm; VFL 15 mW, up to 10 km detection
High-Capacity Battery – 7800 mAh, supports ~240 splices & heat cycles per charge
5-inch TFT LCD – HD display with 320× magnification for clear fiber viewing
One-Step Electric Cleaver – automatic delayed return prevents fiber scratching
APP Bluetooth Control – record management, software upgrade, and splicing data export
Multi-Fiber Compatibility – works with SM, MM, DS/NZDS, bare fiber, drop cable, pigtails, jumpers, and more
Rugged & Portable – compact tool case (4.5 kg with accessories), waterproof, dustproof, and drop-resistant
🔹 Technical Specs (Highlights)
Alignment: Core/cladding, real-time luminous flux assisted alignment
Splice Loss: <0.02 dB (SM), <0.01 dB (MM), <0.04 dB (DS/NZDS)
Cladding Diameter: 80–150 µm
Coating Diameter: 100–1000 µm
Heat Shrink Tube: 25/40/50/60 mm supported
Tensile Test: 2 N standard
Boot Time: 1 s
Storage: 1000 records onboard, unlimited via app/cloud

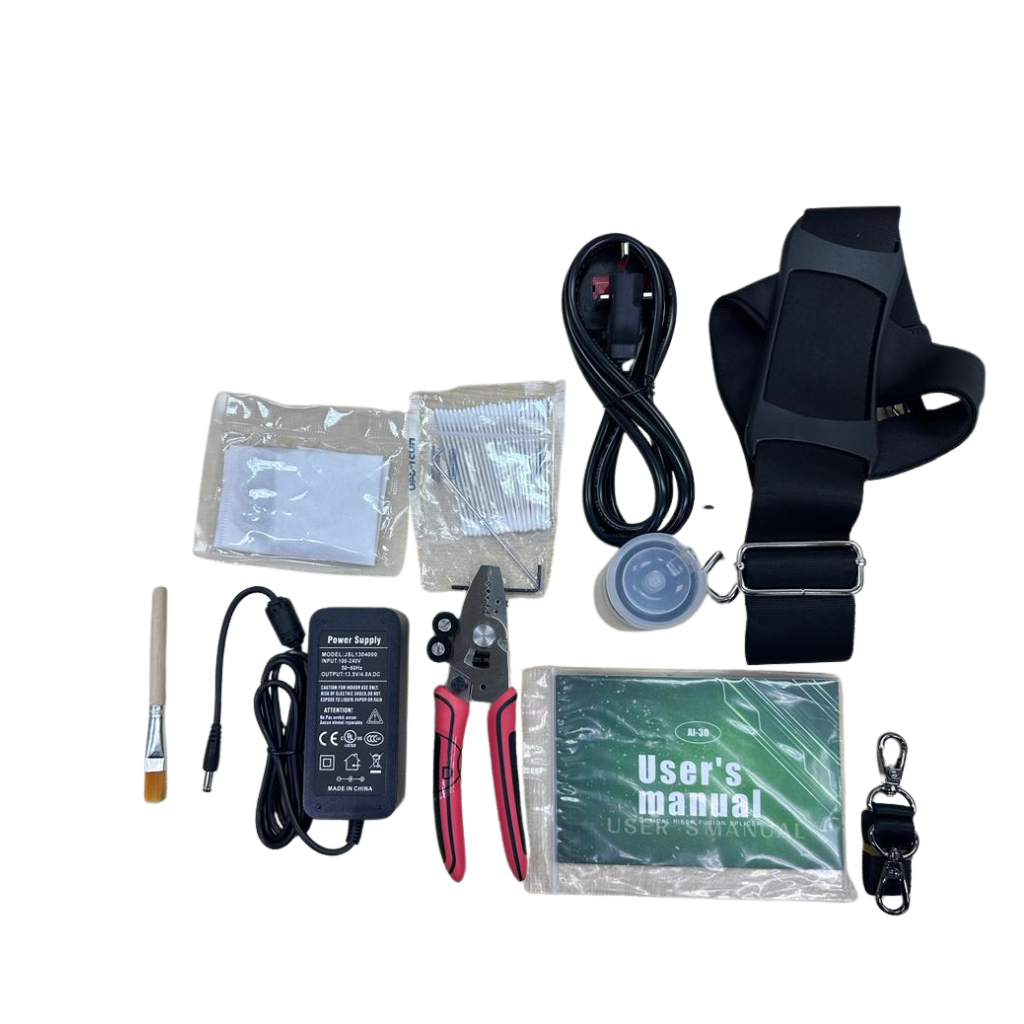

🔹 Package Includes
✔ AI-30 Fusion Splicer
✔ High-precision one-step cleaver
✔ Signal Fire 9-in-1 stripper
✔ Spare electrodes
✔ Alcohol bottle, brush & cleaning kit
✔ Hanging chain & belt
✔ Power adapter & charging cable
✔ User manual, warranty card, toolbox
✅ Why Choose AI-30?
All-in-one integration – splicer + cleaver + OPM + VFL
Faster & more precise – cut downtime with 6 s splice / 15 s heat
Long-lasting – 7800 mAh battery for heavy field use
Smart app support – real-time data, upgrades, and record management
Rugged design – works in harsh environments (–15 °C to +50 °C, up to 5000 m altitude)
✅ Why Choose From Us?
We are an Authorized Distributor of Signal Fire – guaranteeing 100% original products, 1-year official warranty, and reliable local after-sales support. Please keep your invoice for warranty claims. Buy with confidence knowing you’re getting genuine equipment direct from the authorized channel.
