AI-9 Fiber Optic Welding Splicing Machine Optical Fiber Fusion Splicer Fully Automatic Signal Fire Ai 9 SM102

(4 customer reviews)

RM3,399.00

Availability: 17 in stock

SKU: SM102-SPLICING-AI9 Category:

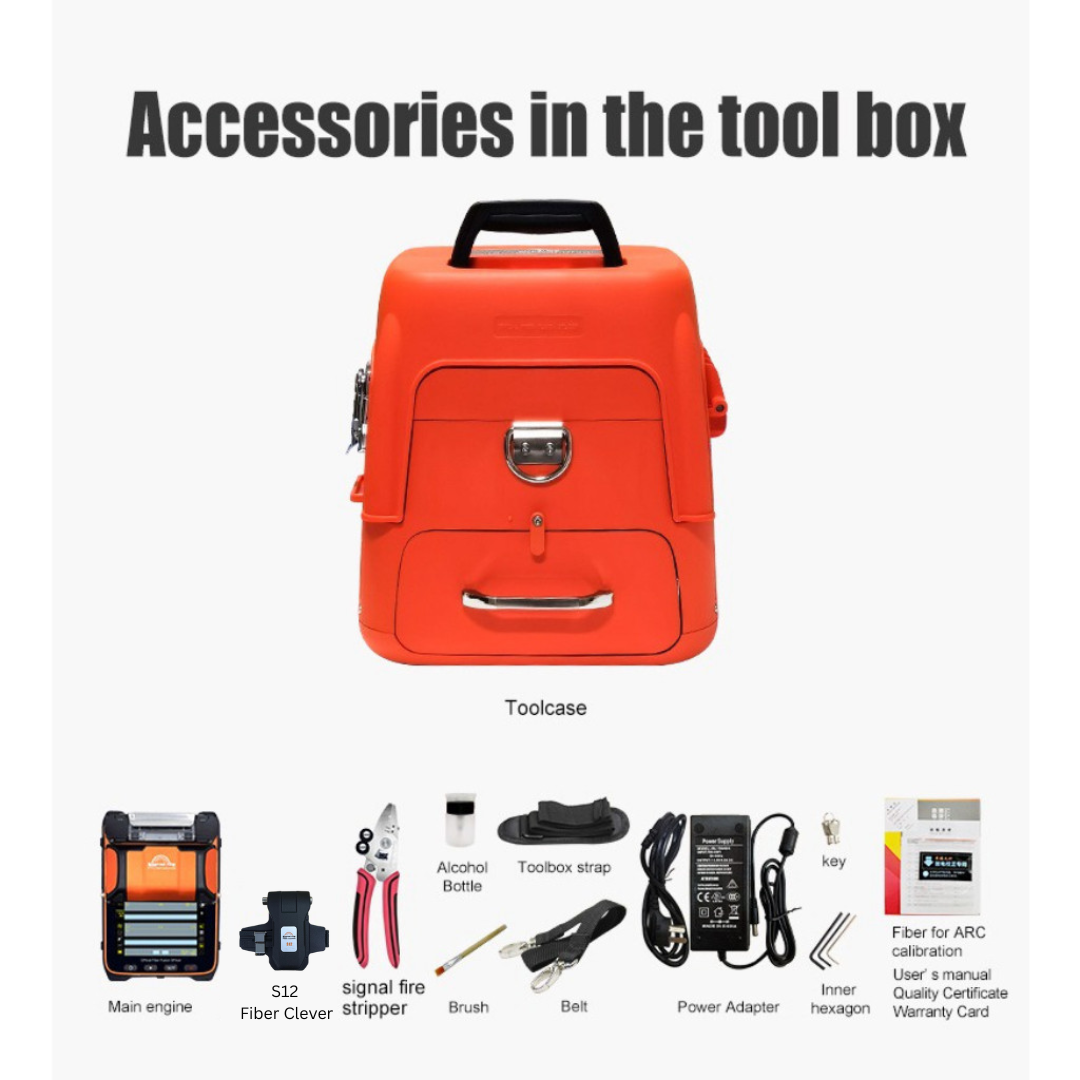

Signal Fire AI-9 use the latest core alignment technology with auto focus and six motors, it is a new generation of fiber fusion splicer. It is fully qualified with trunk construction of medium and short distance, FTTH project, security monitoring and other fiber cable splicing projects. The machine uses industrial quad-core CPU, fast response, is currently one of the fastest fiber splicing machine in the market; with 5-inch 800X480 high-resolution screen, the operation is simple and intuitively; and up to 300 times focus magnifications, making it is very easy to observe the fiber with naked eyes. 5 seconds speed core alignment splicing, 15 seconds heating, the working efficiency increased by 50% compared to ordinary splicing machines. Under the conditions of rigorous testing, the performance is still outstanding; toolbox is small, exquisite, durable, and with unique bench design. The design of operating platform reflects the humanistic care; unique lighting design, it is convenient for night construction or repair. Screen brightness is adjustable and it is convenient for outdoor sunshine environment operation. The core parts are using imported brands, aviation metal body material with exquisite details. With the combination of advanced technology and design, the new generation of optical fiber fusion splicer will bring you a reliable and comfortable user experience.

BASIC PARAMETER

Plug type & Voltage US plug; AC100V-240V 50/60Hz

Applicable Fibers :SM(G.652&G.657), MM(G.651), DS(G.657), NZDS (G.655)

Tension Test ; Standard 2N

Splice Loss: 0.025dB (SM) , 0.01dB(MM)0.04dB(DS/NZDS)

Fiber holders :Multi function holders, Applicable for SM, MM, bare

fiber, pigtail, rubber-insulated, multi fiber cable

Focusing mode:Auto focusing

Magnification:300 for X or Y view, 150 for X or Y view

Fiber alignment: Core/cladding alignment Manual alignment

Screen: 5.1 inch TFT color display

Typical splicing time: 6S

Software upgrade: Mobile APP update,Turn on Bluetooth sync to the machine

Typical heating time: 15S

Splicing Mode: Normal / high precision splicing

Return loss> 60DB

Built-in battery:7800 mA high-capacity lithium battery, charging time ≤

3.5 hours, continuous splicing and heating about 200 times

Fiber diameter: Cladding Diameter 80-150μm, Coating Diameter 100-1000μm

Power supply: Input AC100-240V 50 / 60HZ, output DC13.5V / 4A, the

current power mode can be identified, real-time detection of battery power

Fiber Cleave Length

Coating less than 250μm: 8-16mm Coating less

m250-1000μm:16mm

Operating Conditions

Temperature -15 ~ +50 ℃

Weight 9.00 kg
