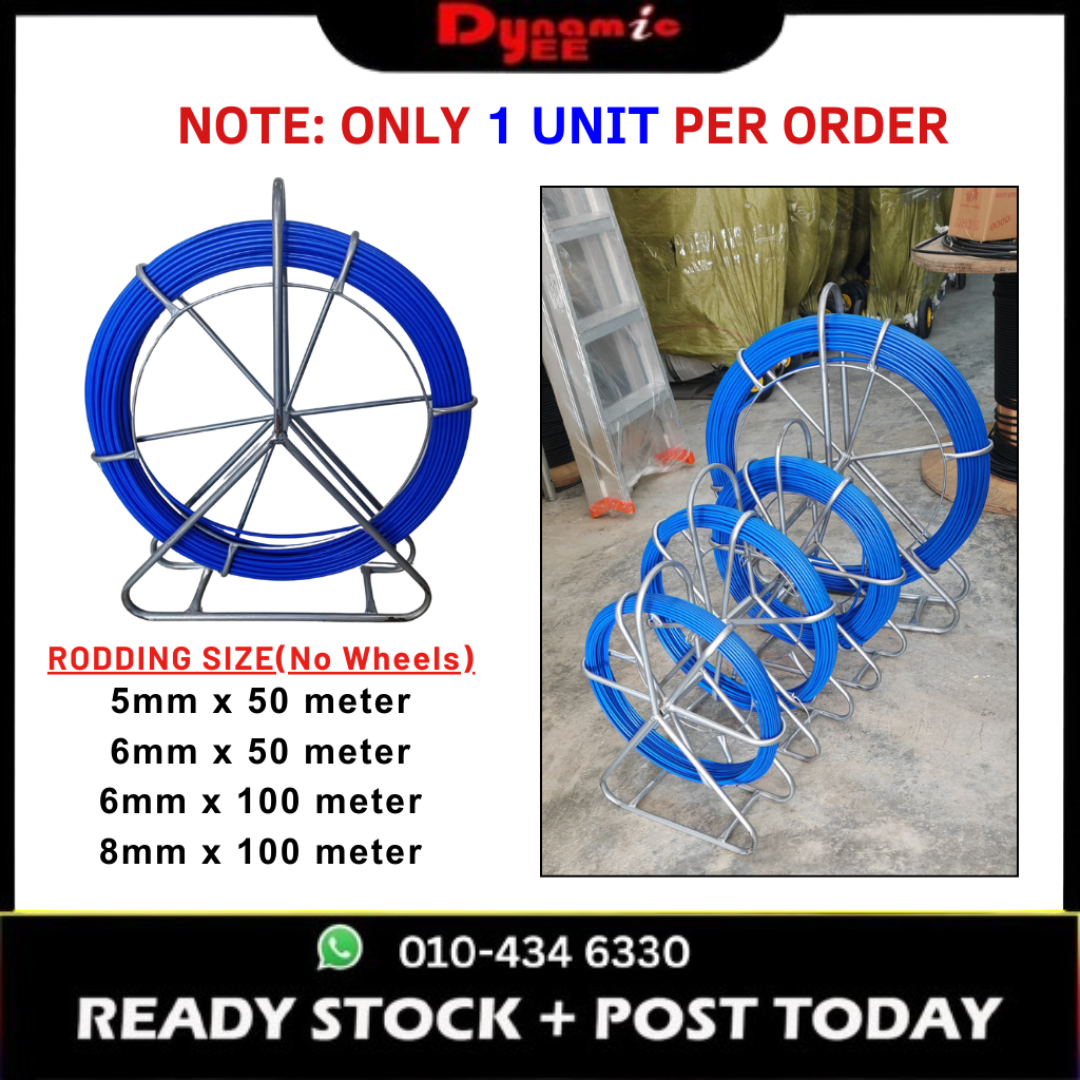

Fibreglass Duct Rodding Cable Puller(tiada roda) RD101

RODDING SIZE :

Type: Fiberglass Cable 5MM*50 meters

Color: Blue,  Yellow,  White, Red

Material: glass fiber + ABS

Temperature range:-40-+80 (°C)

Linear density: 210(g/m)

Minimum bending radius: 330(MM)

Tensile fracture: 4200KG

Traction fracture tension: 4.6 (T)

Cable diameter: approx. 5mm

Cable length: about 52*36*16CM

Weight： about 3000G

——————————

Type: Fiberglass Cable 6MM*50 meters

Color: Blue, Yellow, White, Red

Material: glass fiber + ABS

Temperature range: -40-+80 (°C)

Linear density: 210 (g/m)

Minimum bending radius: 330(MM)

Tensile fracture : 4200KG

Traction fracture tension: 4.6 (T)

Cable diameter: approx. 6mm

Cable length: about 60*44*16CM

Weight: about 5815G

——————————

Type: Fiberglass Cable 6MM*100m

Color: Blue, Yellow, White, Red

Material: glass fiber + ABS

Temperature range:-40-+80 (°C)

Linear density: 210(g/m)

Minimum bending radius: 330(MM)

Tensile fracture: 4200KG

Traction fracture tension: 4.6 (T)

Cable diameter: about 6 mm

Cable length: about 61*44*16CM

Weight: about 6000G

——————————

Type: Fiberglass Cable 8MM*100 meters plus steel wire

Color: Blue, Yellow, White, Red

Material: glass fiber + ABS

Temperature range: -40-+80 (°C)

Linear density: 210 (g/m)

Minimum bending radius: 330(MM)

Tensile fracture: 4200KG

Traction fracture tension: 4.6 (T)

Cable Diameter: Approx. 8mm

Cable length: about 82*62*16CM

Weight: about 11000G

Duct Rodders applies in tow lead-rope through

a pipe, it is auxiliary means. Surface smooth

and high resilience, so the FRP perforator

with ease passes the narrow channel.

perforator consists of two parts: the glass

fiber strengthen the level, the high-

pressured low density polyethylene protective

layer(smooth, firm , can resist the adverse

circumstance). It has time-saving reducing

effort, improving efficiency, etc , And can be

used for telecom cables, cable pipe and

cleaning and plastic pipe of cloths to put.

when use draws out the FPR pole by the

pulley, then with a corresponding metal

joint, penetrates in the pipeline. When

cleaning, guide-head will drive cleaning

tools to clean the pipe; When arranges the

cable, you may first leads the steel wire or

the iron wire, then enters the pipe with the

steel wire or the iron wire hauling cable.
