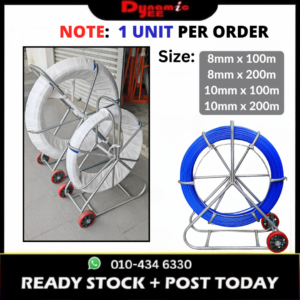

Fiberglass Duct Rodding Cable Rod Puller (roda) (big size) RD201

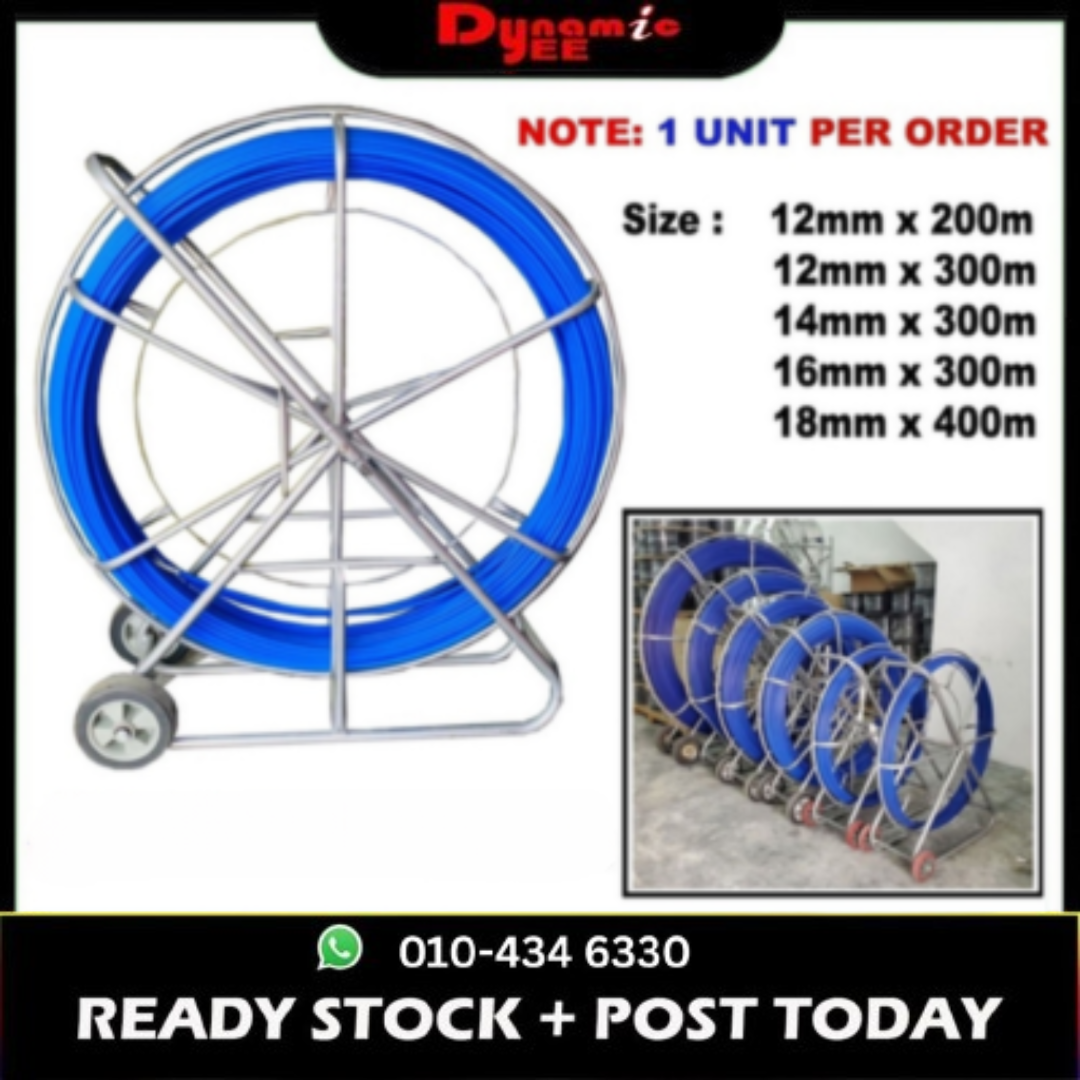

RODDING SIZE :

Type: Fiberglass Cable 12MM*200 meter plus steel wire

Color: Blue, Yellow, White, Red

Material: Glass Fiber + ABS

Temperature range:-40-+80 (°C)

Linear density:210(g/m)

Minimum bending radius:330(MM)

Tensile fracture:4200KG

Traction fracture tension:4.6 (T)

Cable Diameter: Approx. 12mm

Cable length: about 125*120*42CM

Weight: about 45000G

——————————

Type: Fiberglass Cable 12MM*300 meter plus steel wire

Color: Blue, Yellow, White, Red

Material: Glass Fiber + ABS

Temperature range:-40-+80 (°C)

Linear density:210(g/m)

Minimum bending radius:330(MM)

Tensile fracture:4200KG

Traction fracture tension:4.6 (T)

Cable Diameter: Approx.  12mm

Cable length: about 125*120*42CM

Weight: about 60000G

——————————

Type: Fiberglass Cable 14MM*300 meter plus steel wire

Color: Blue, Yellow, White, Red

Material: Glass Fiber + ABS

Temperature range:-40-+80 (°C)

Linear density:210(g/m)

Minimum bending radius:330(MM)

Tensile fracture:4200KG

Traction fracture tension:4.6 (T)

Cable Diameter: Approx. 14mm

Cable length: about 140*135*44CM

Weight: about 85000G

——————————

Type: Fiberglass Cable 16MM*300 meter plus steel wire

Color: Blue, Yellow, White, Red

Material: Glass Fiber + ABS

Temperature range:-40-+80 (°C)

Linear density:210(g/m)

Minimum bending radius:330(MM)

Tensile fracture:4200KG

Traction fracture tension:4.6 (T)

Cable Diameter: Approx.16mm

Cable length: about 160*155*44CM

Weight: about 115000G

——————————

Type: Fiberglass Cable 18MM*400 meter plus steel wire

Color: Blue, Yellow, White, Red

Material: Glass Fiber + ABS

Temperature range:-40-+80 (°C)

Linear density:210(g/m)

Minimum bending radius:330(MM)

Tensile fracture:4200KG

Traction fracture tension:4.6 (T)

Cable Diameter: Approx. 18mm

Cable length: about 190*190*45CM

Weight: about 180000G

– Duct Rodders applies in tow lead-rope through

a pipe, it is auxiliary means. Surface smooth

and high resilience, so the FRP perforator

with ease passes the narrow channel.

perforator consists of two parts: the glass

fiber strengthen the level, the high-

pressured low density polyethylene protective

layer(smooth, firm , can resist the adverse

circumstance). It has time-saving reducing

effort, improving efficiency, etc , And can be

used for telecom cables, cable pipe and

cleaning and plastic pipe of cloths to put.

when use draws out the FPR pole by the

pulley, then with a corresponding metal

joint, penetrates in the pipeline. When

cleaning, guide-head will drive cleaning

tools to clean the pipe; When arranges the

cable, you may first leads the steel wire or

the iron wire, then enters the pipe with the

steel wire or the iron wire hauling cable.
