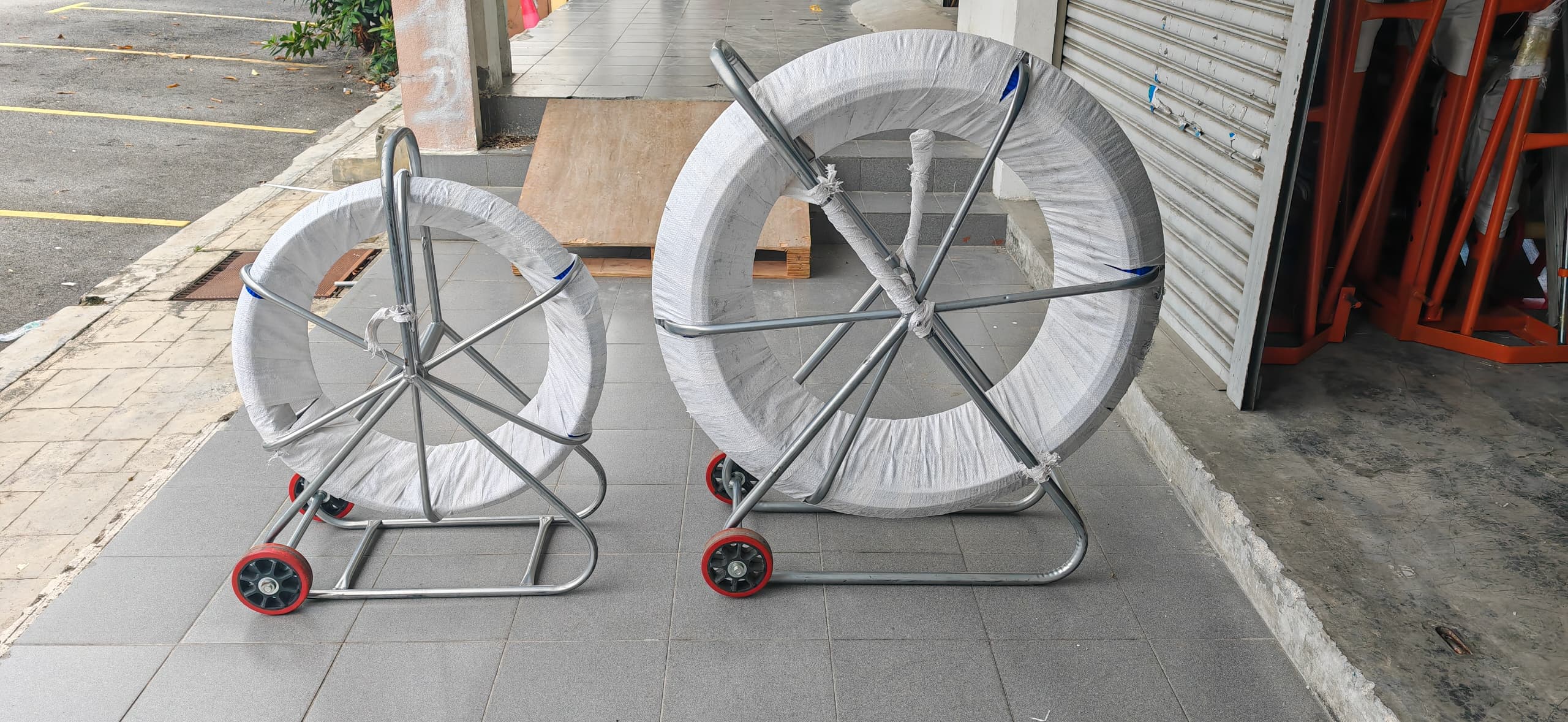

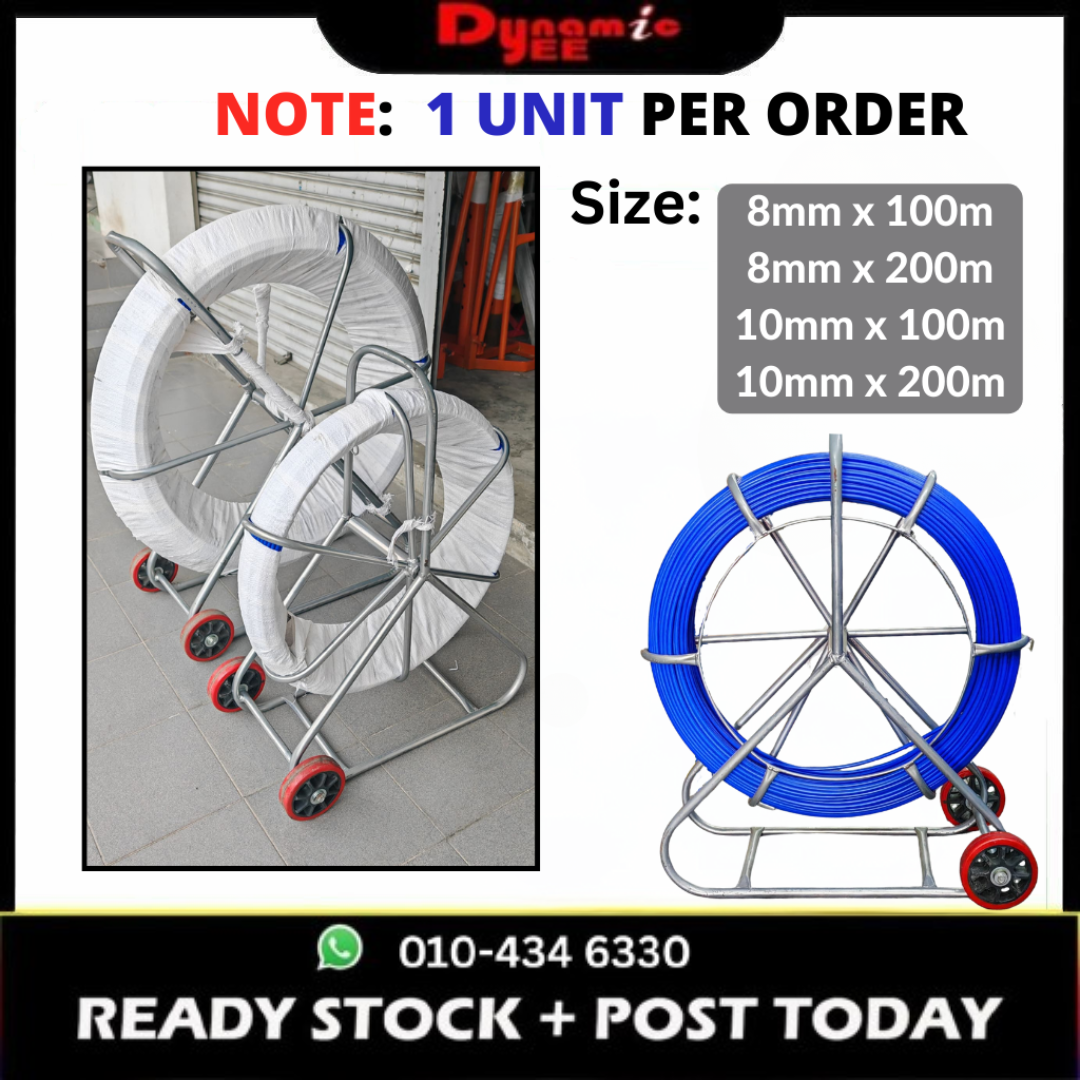

Fiberglass Duct Rodding Cable Rod Puller (ada roda) RD201

RODDING SIZE :

Type: Fiberglass Cable 8MM*100 meter with wheel and steel wire

Color: Blue, Yellow, White, Red

Material: Glass Fiber + ABS

Temperature range:-40-+80 (°C)

Linear density:210(g/m)

Minimum bending radius:330(MM)

Tensile fracture:4200KG

Traction fracture tension:4.6 (T)

Cable Diameter: Approx. 8mm

Cable length: about 88*73*38CM

Weight: about 13000G

——————————

Type: Fiberglass Cable 8MM*200 meter with wheel and steel wire

Color: Blue, Yellow, White, Red

Material: Glass Fiber + ABS

Temperature range:-40-+80 (°C)

Linear density:210(g/m)

Minimum bending radius:330(MM)

Tensile fracture:4200KG

Traction fracture tension:4.6 (T)

Cable Diameter: Approx. 8mm

Cable length: about 88*73*38CM

Weight: about 20000G

——————————

Type: Fiberglass Cable 10MM*100 meter with wheel and steel wire

Color: Blue, Yellow, White, Red

Material: Glass Fiber + ABS

Temperature range:-40-+80 (°C)

Linear density:210(g/m)

Minimum bending radius:330(MM)

Tensile fracture:4200KG

Traction fracture tension:4.6 (T)

Cable Diameter: Approx. 10mm

Cable length: about 100*100*40CM

Weight: about 23000G

——————————

Type: Fiberglass Cable 10MM*200 meter with wheel and steel wire

Color: Blue, Yellow, White, Red

Material: Glass Fiber + ABS

Temperature range:-40-+80 (°C)

Linear density:210(g/m)

Minimum bending radius:330(MM)

Tensile fracture:4200KG

Traction fracture tension:4.6 (T)

Cable Diameter: Approx. 10mm

Cable length: about 105*100*40CM

Weight: about 37000G

– Duct Rodders applies in tow lead-rope through

a pipe, it is auxiliary means. Surface smooth

and high resilience, so the FRP perforator

with ease passes the narrow channel.

perforator consists of two parts: the glass

fiber strengthen the level, the high-

pressured low density polyethylene protective

layer(smooth, firm , can resist the adverse

circumstance). It has time-saving reducing

effort, improving efficiency, etc , And can be

used for telecom cables, cable pipe and

cleaning and plastic pipe of cloths to put.

when use draws out the FPR pole by the

pulley, then with a corresponding metal

joint, penetrates in the pipeline. When

cleaning, guide-head will drive cleaning

tools to clean the pipe; When arranges the

cable, you may first leads the steel wire or

the iron wire, then enters the pipe with the

steel wire or the iron wire hauling cable.
