CAT6 UTP 24 Port Patch Panel 1U 19” Rack Mount RJ45 IDC Punch Down T568A/T568B
Key Specifications
Category: CAT6 UTP
Number of Ports: 24 Ports
Rack Size: 19 inches
Rack Height: 1U
Weight: 1 kg
Product Dimensions (W × D × H): 48.3 × 3.4 × 4.4 cm
Termination: IDC Punch Down
Wiring Standard: T568A / T568B
Wire Size: 22–26 AWG Solid
Product Details

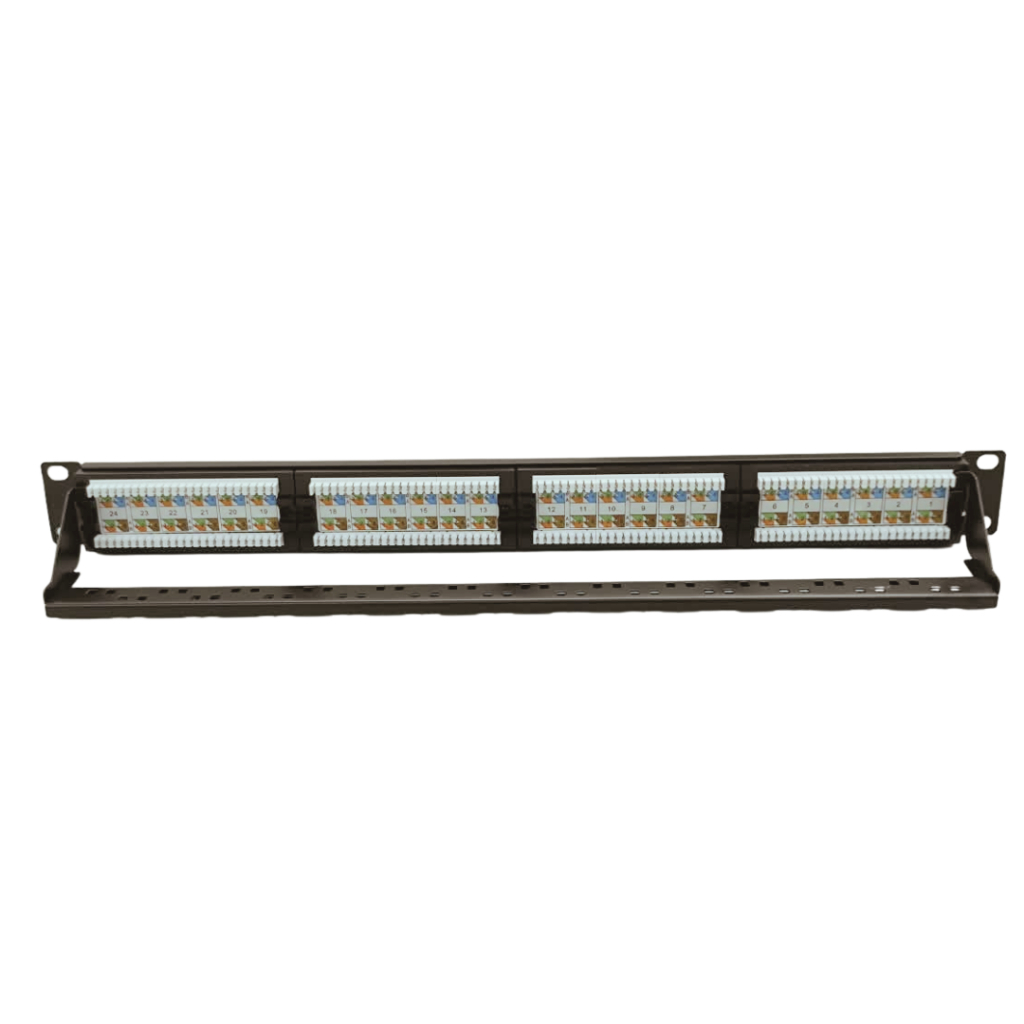

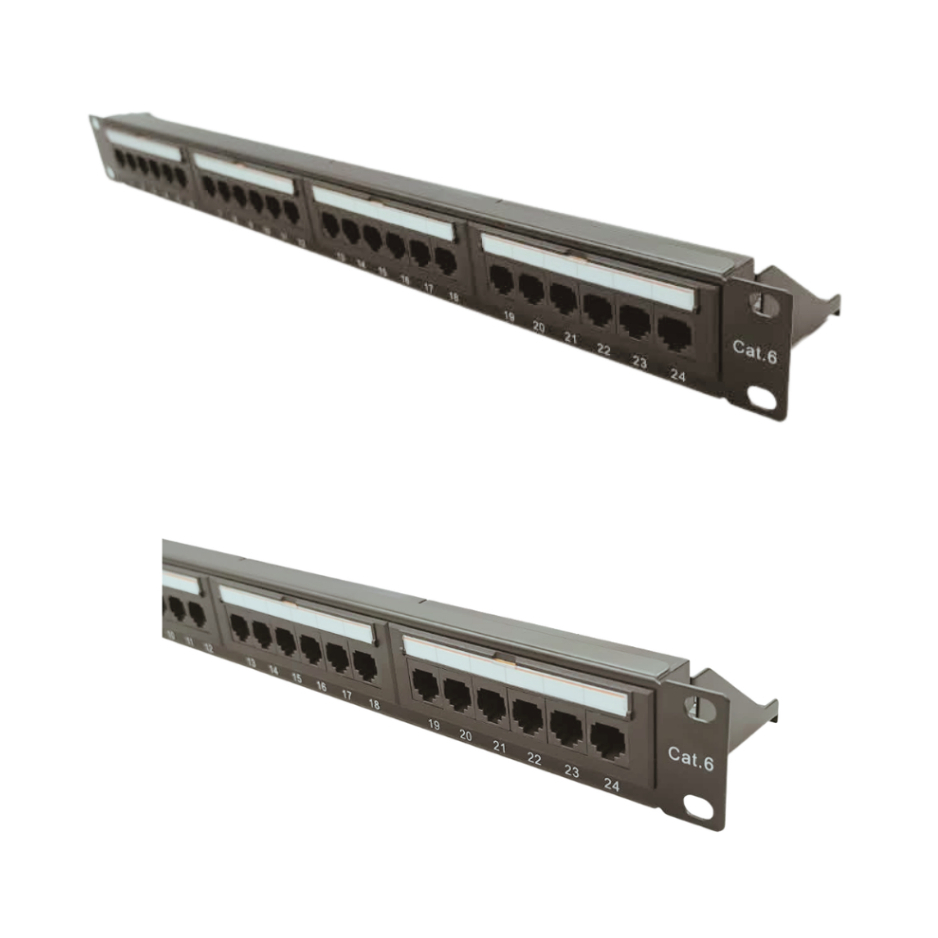

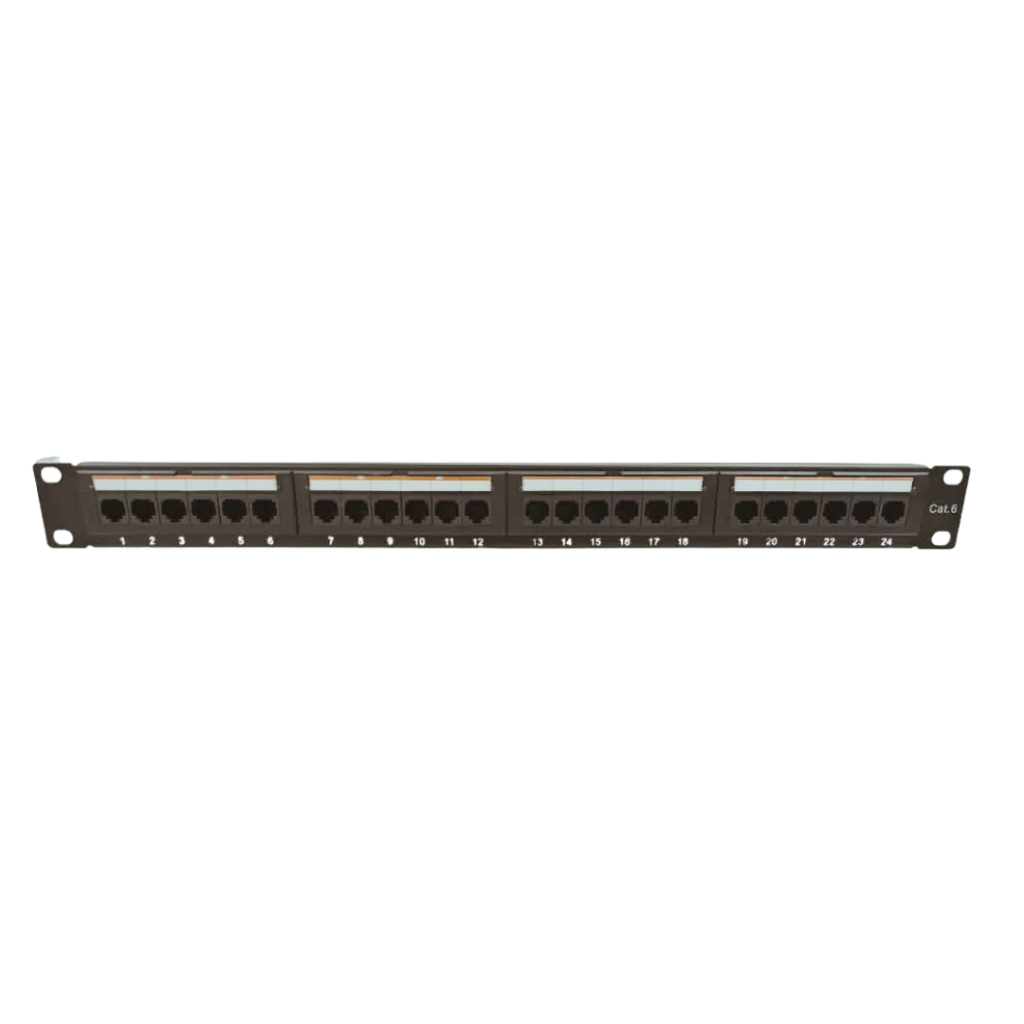

(1) Rack-mounted, unshielded, all-in-one 24-port patch panel with a rear cable management tray, designed with 6-port modules for easy removal and replacement.
(2) Performance far exceeds the standards required by ISO/IEC 11801, ANSI/TIA/EIA 568.2-D, and YD/T 926.3.
(3) The iron plate features an integrated molding made of thickened SPCC cold-rolled steel with dust-free electrostatic spraying.
(4) The module jacks utilize 8-pin phosphor bronze pins with extra-thick gold plating, supporting ≥1,500 mating cycles, compliant with IEC 60512, Test 9a.
(5) IDC terminals are made of phosphor bronze with over 80 µ" nickel plating, supporting ≥250 termination cycles, suitable for 22–26 AWG solid and stranded wires.
(6) Insertion & extraction force: N < 20 at a maximum rate of 50 mm/min, compliant with IEC 60512-13-2.
