AI-5 Fiber Optic Welding Splicing Machine Optical Fiber Fusion Splicer Fully Automatic Signal Fire AI-5 SM106

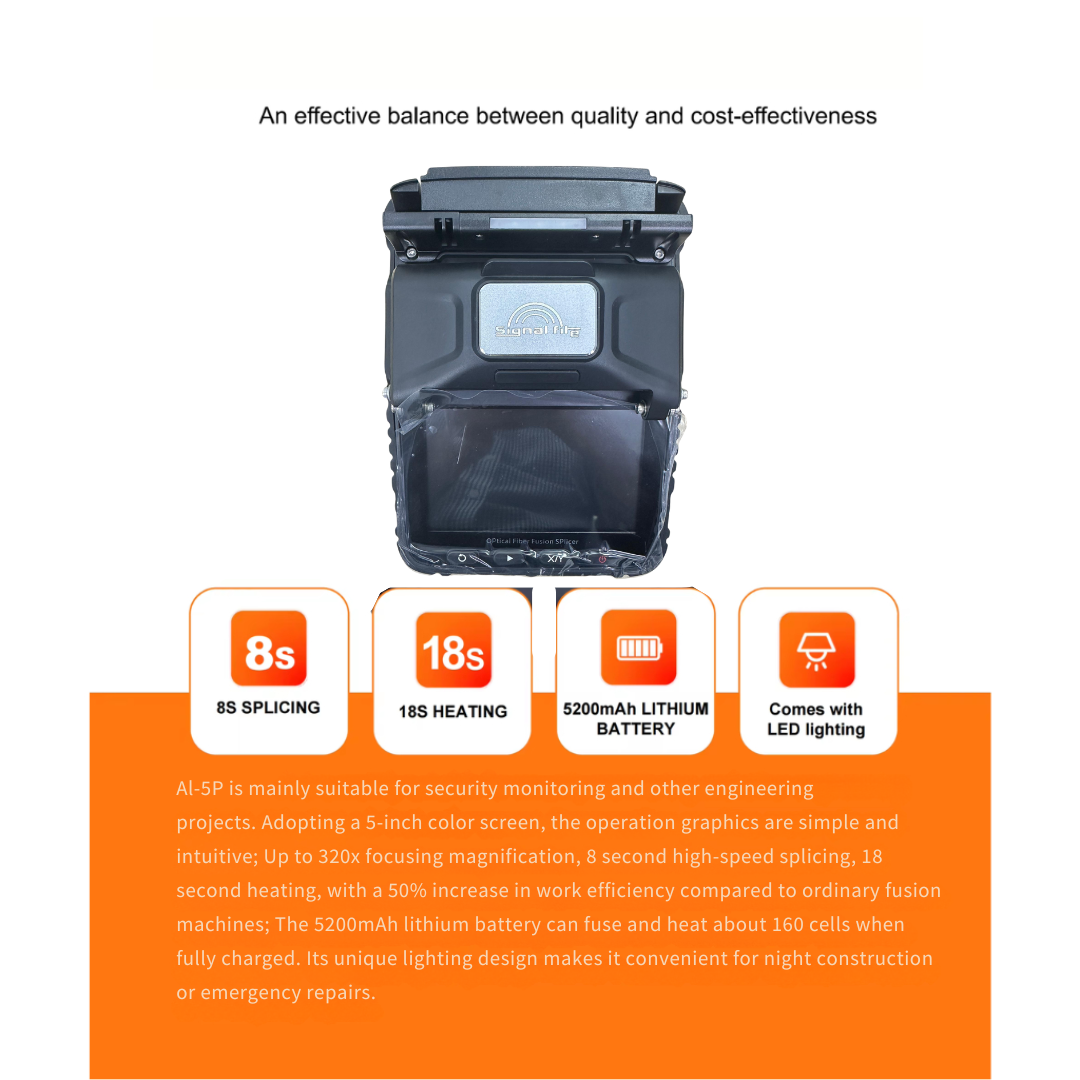

1：The fiber optic fusion splicer adopts 4 motors, operates at high speed, and performs fusion splicing in 8 seconds and heating in 18 seconds，Continuous welding and heating can be used approximately 160 times
2：5-inch touch screen, 4-motor fiber core alignment, three in one fixture, waterproof, moisture-proof and shockproof, 5200mAh large capacity battery, 320x magnification fiber core
3. There are 9 languages to choose from in the language system (including English), and the screen adopts a 5-inch high-resolution display screen, with clear welding losses and cutting angles at a glance
4:3-in-1 fixture Using fiber optics：SMF（G.652）.MMF（G.651）.DSF（G.653）.NZDSF（G.655）。 Connection losses of 0.02dbm (SMF), 0.01db (MMF), 0.04db (DSF/NZDSF) were measured using the ITU-I shear method
5：Functional features: 5-inch high-resolution display screen, 320x fiber amplification, 3-in-1 fixture, 8-second fusion, 18 second heating
