Max Capacity (cores) : 12 / 24 / 48 core
Dimensions For 12 core:
48.5 cm (L) × 30.5 cm (D) × 4.5 cm (H)
Top Panel: 44 cm × 28 cm
Mounting Bracket: 37 cm × 8.5 cm
Dimensions For 24 core:48.5 cm (L) × 25 cm (D) × 4.5 cm (H)
Top Panel: 43 cm × 23.5 cm
Mounting Bracket: 29 cm × 7 cm
Dimensions For 48 core:48.5 cm (L) × 25 cm (D) × 9 cm (H)
Top Panel: 43 cm × 23.5 cm
Mounting Bracket: 38.5 cm × 6 cm

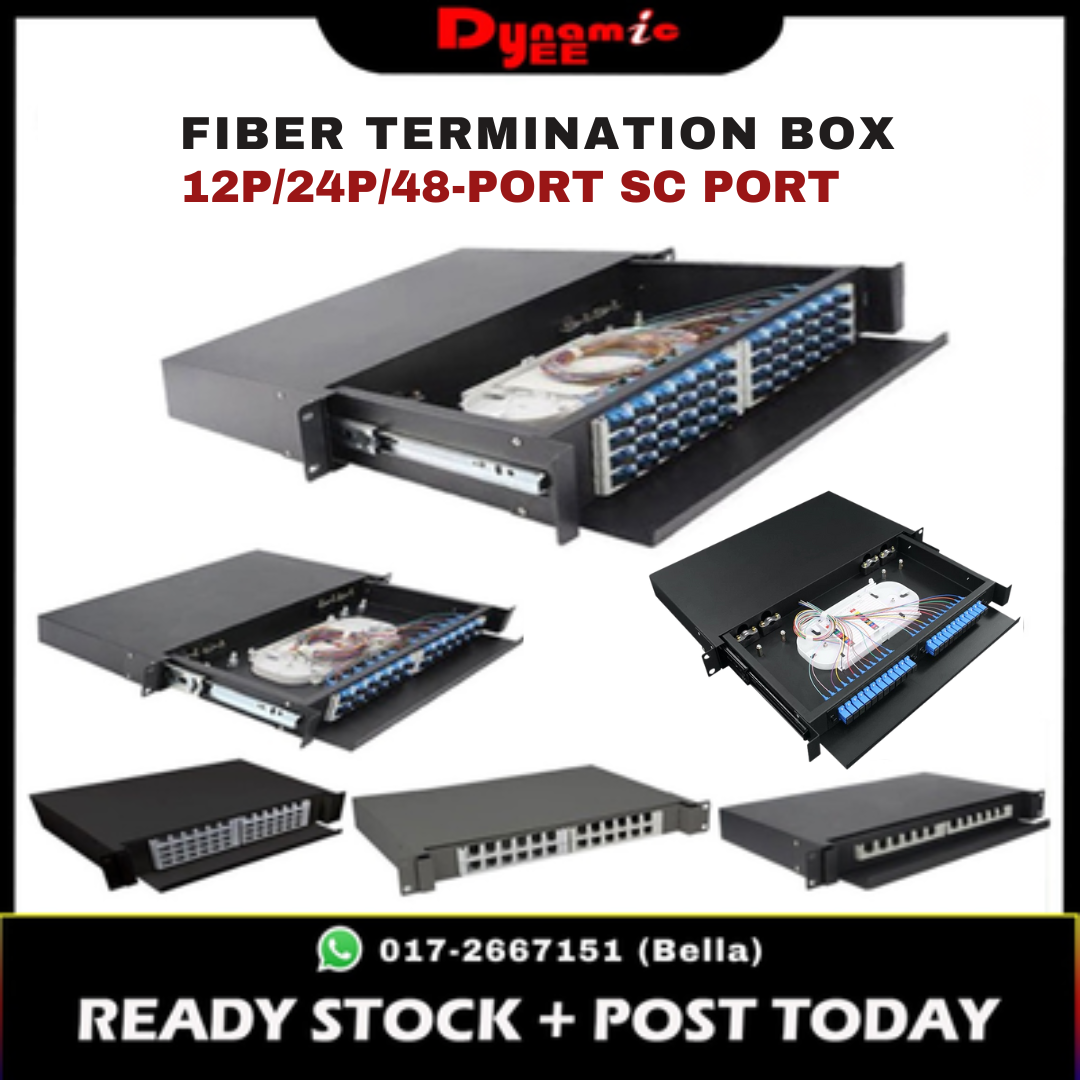

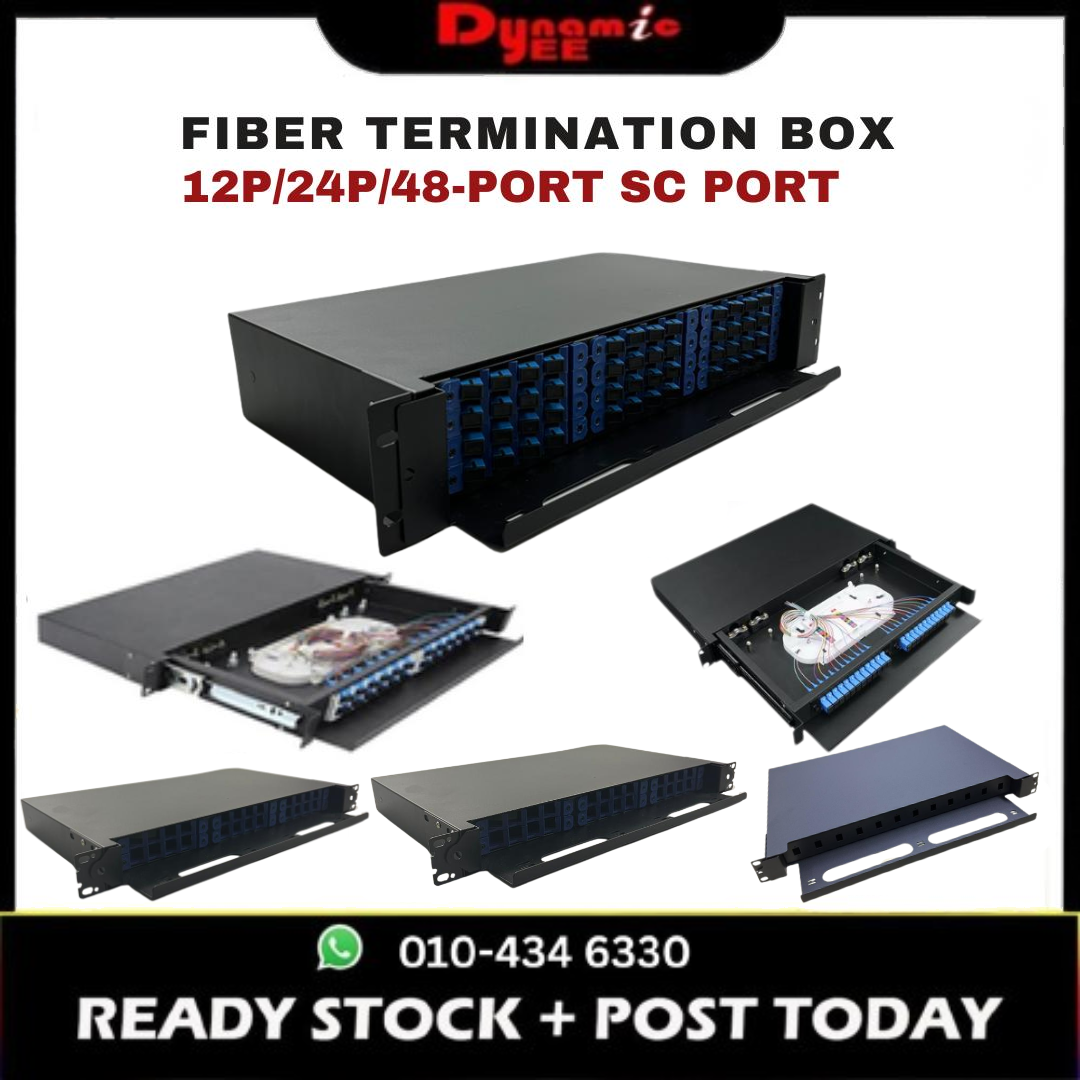

*Fiber Optic Terminal Box is used for connecting optical cable with various equipments in FTTX optical access network node. In FTTH application, it is applied to the second stage splitter point of optical fiber network. Optical cable can be connected by fusion or mechanical jointing method after introduction into the box. It is possible to realize cable termination, splitting and distribution function conveniently
Features :
1. Optical fiber distribution and splitting box is composed by cabinet body, splicing tray, splitting module and accessories.
2. The body is made of cold rolled sheets of metal, electrostatic spraying surface with small size, light weight and good-looking appearance.
3. The box has two layers. The outer layer is composed with mounting unit for splitter and cable management parts. The inner layer is equipped by splicing tray and cable storage unit for pass-though riser cable.
4. Modularized structure without jumping fiber, It may expanse capacity flexibly by increasing splitter installed module.
5. The module with different ports capacity is universal used and interchangeable. In addition, it is equipped splicing tray, used for riser cable termination and cable branch connection.
