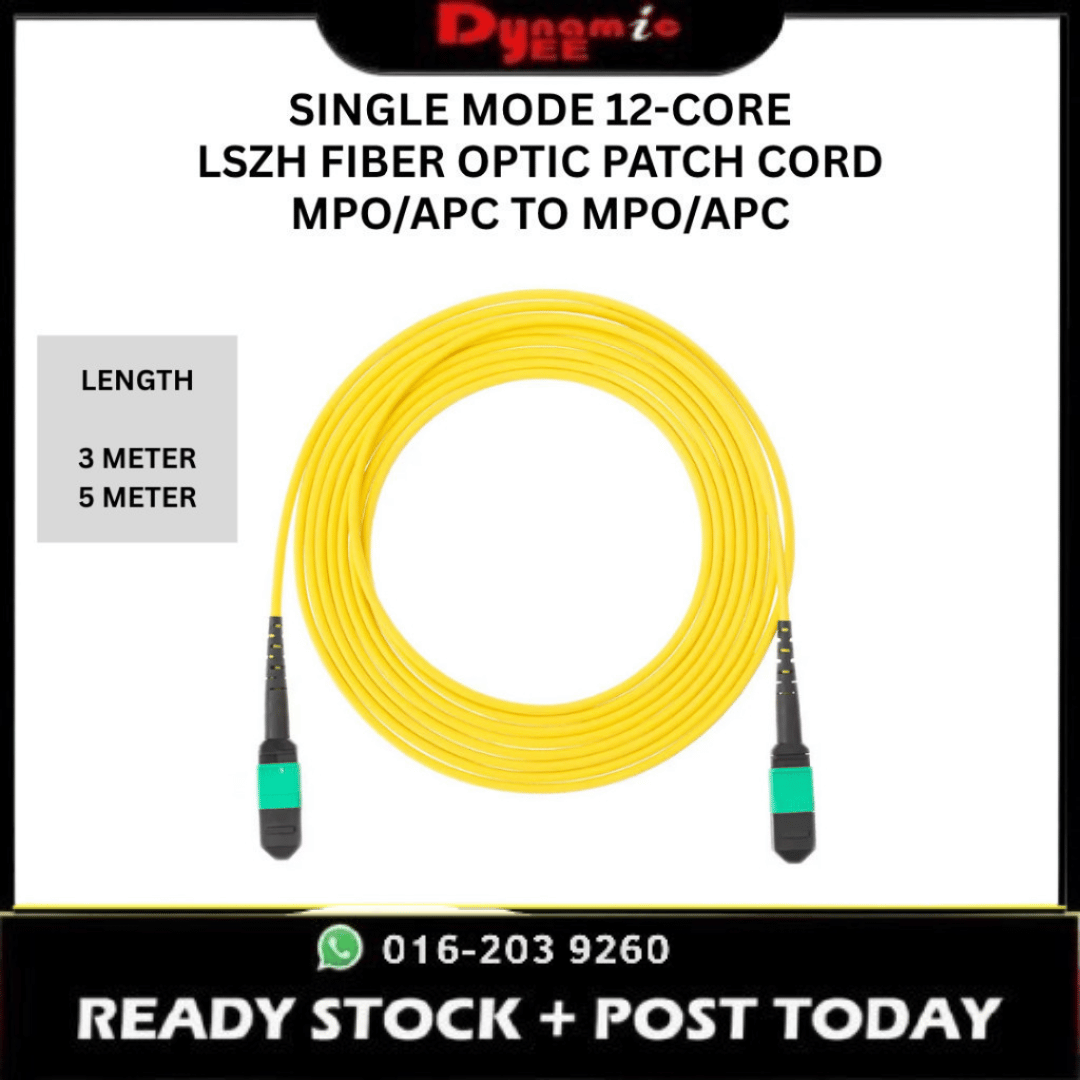

Single Mode 12-Core MPO/APC to MPO/APC LSZH Fiber Optic Patch Cord 3M 5M MPO101

Single Mode 12-Core MPO/APC to MPO/APC LSZH Fiber Optic Patch Cord 3M 5M

12-core single mode fiber optic patch cord with MPO/APC connectors on both ends, suitable for high-density fiber connections, data centres, server rooms, fiber distribution systems and network backbone applications.

Specifications

Fiber Type: Single Mode
Fiber Count: 12 Fiber / 12 Core

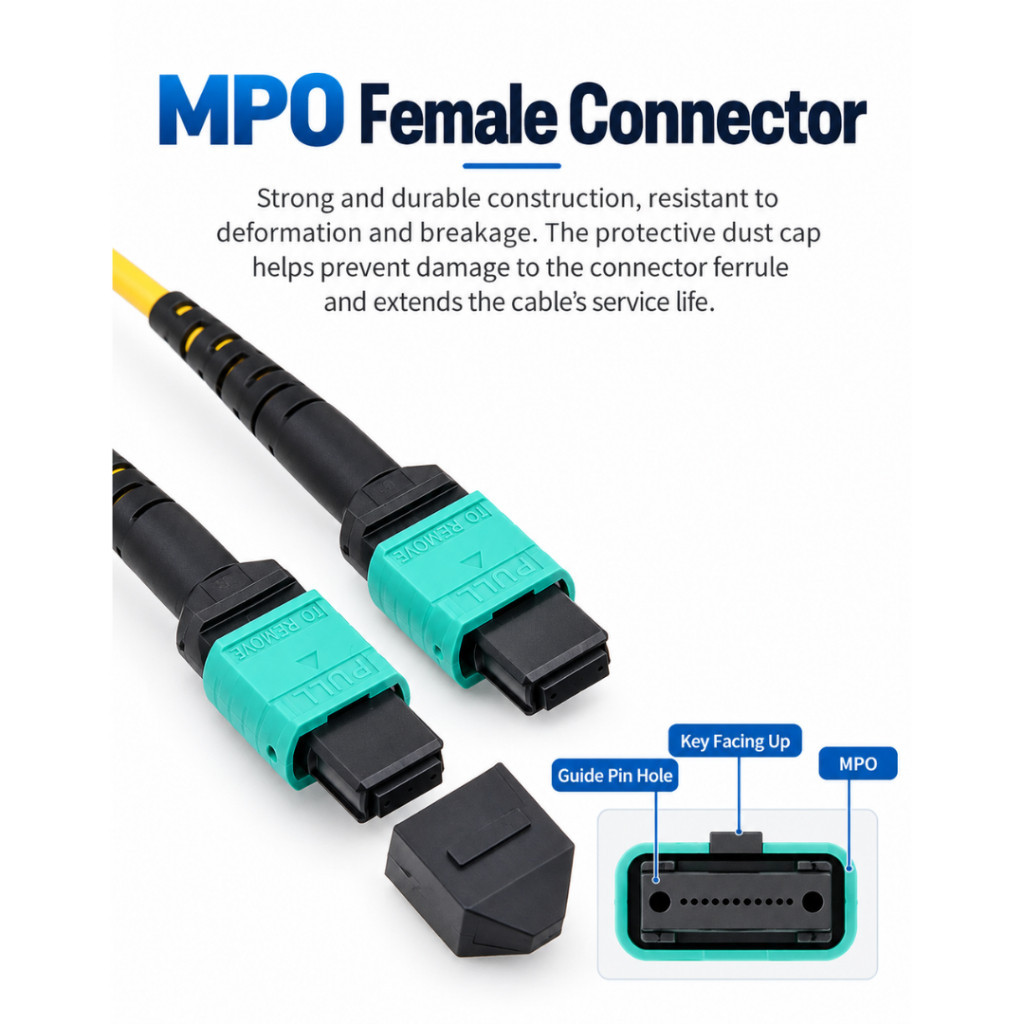

Connector Type: MPO/APC to MPO/APC
Product Type: 12F-SM MPO/APC-MPO/APC
Cable Jacket: LSZH – Low Smoke Zero Halogen
Cable Color: Yellow
Available Lengths: 3M / 5M
Operating Temperature: -40°C to +85°C

Performance

Insertion Loss: Approx. 0.17–0.35 dB
Return Loss: Approx. 65.1–69.8 dB

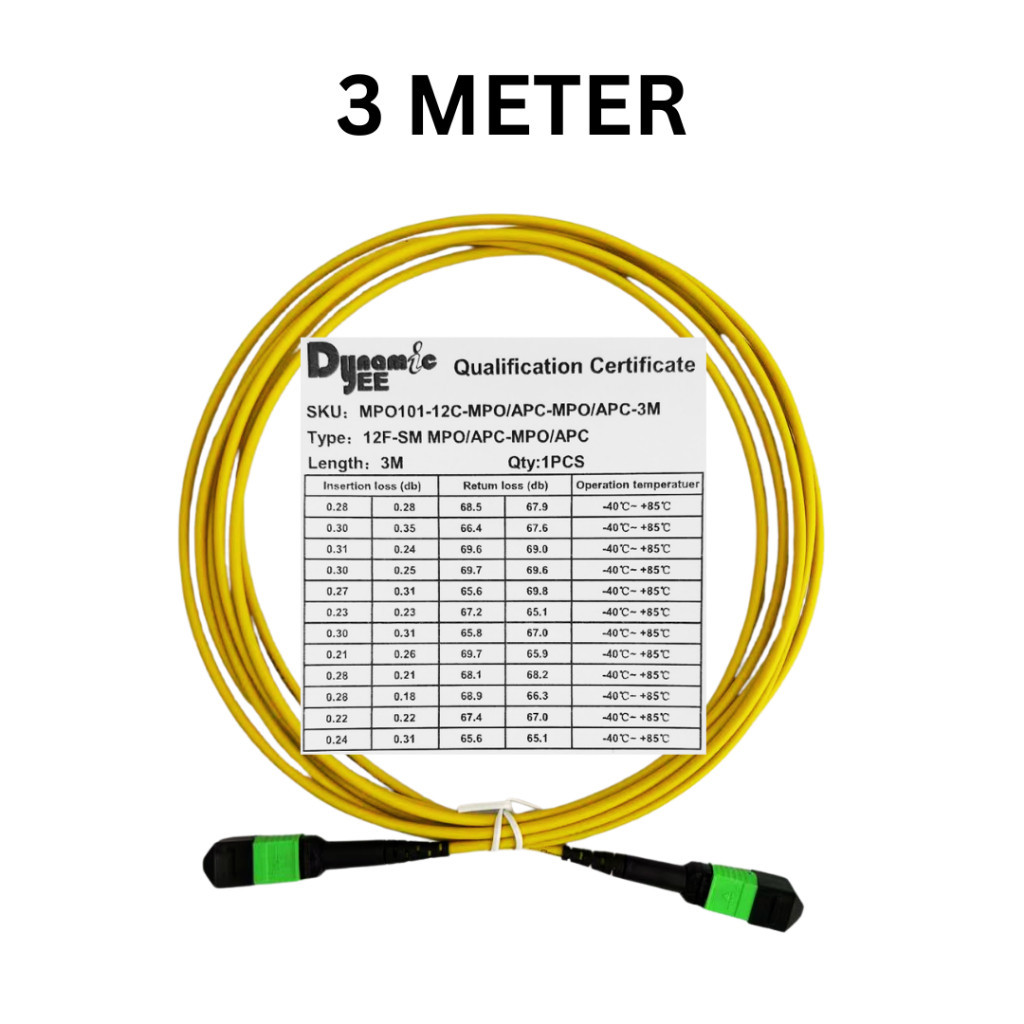

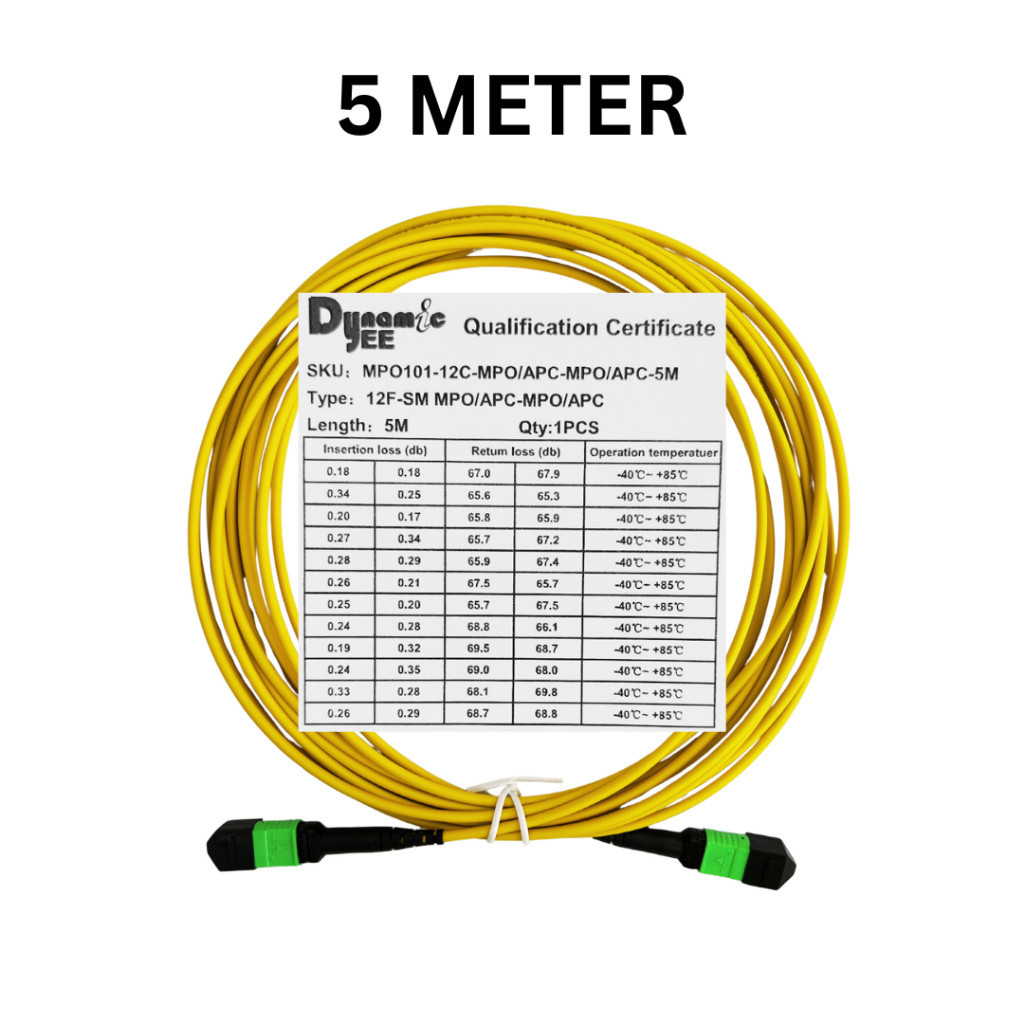

Performance values are based on the uploaded qualification certificate test readings and may vary between individual cables.

Suitable Applications

Data Centre / Server Room
Fiber Patch Panel / ODF
High-Density Fiber Cabling
Network Backbone Connection
Telecommunication Network

Package Includes

1 × Single Mode 12-Core MPO/APC to MPO/APC Fiber Optic Patch Cord
