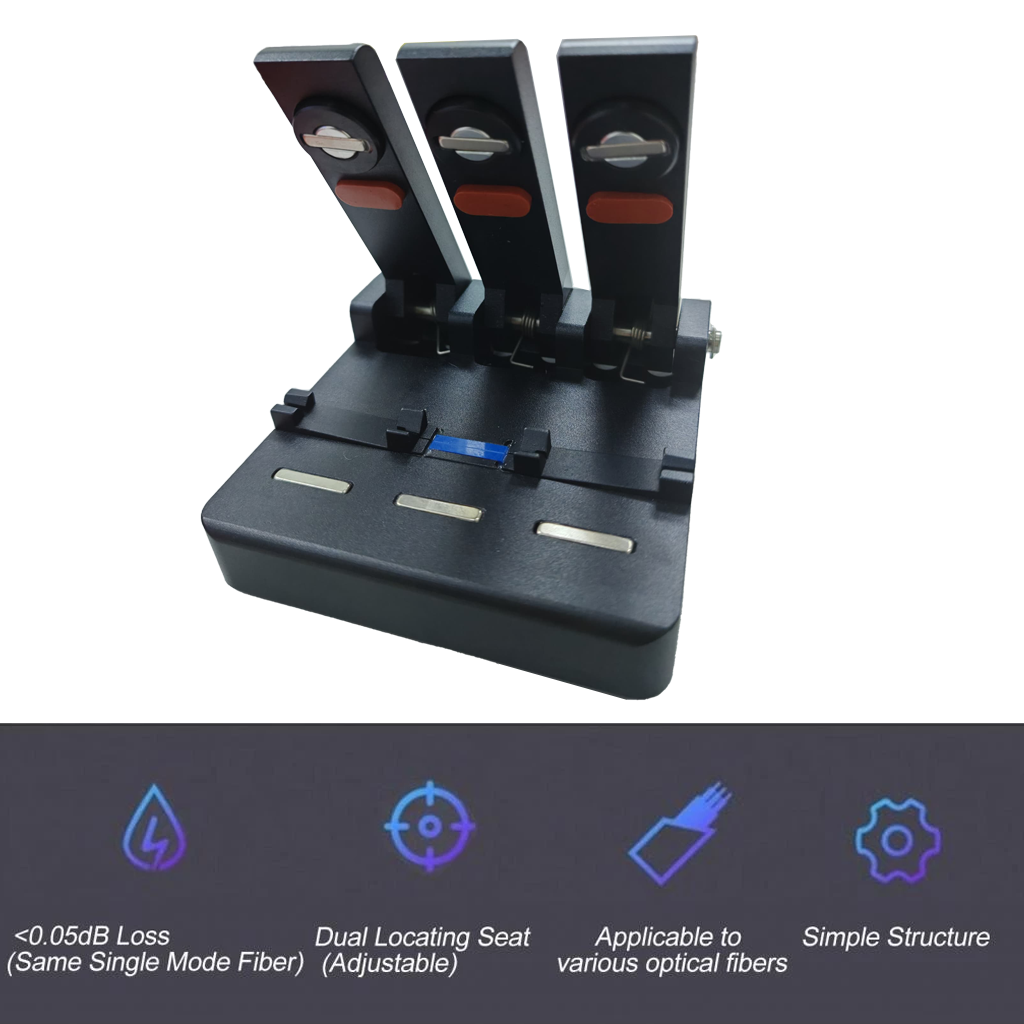

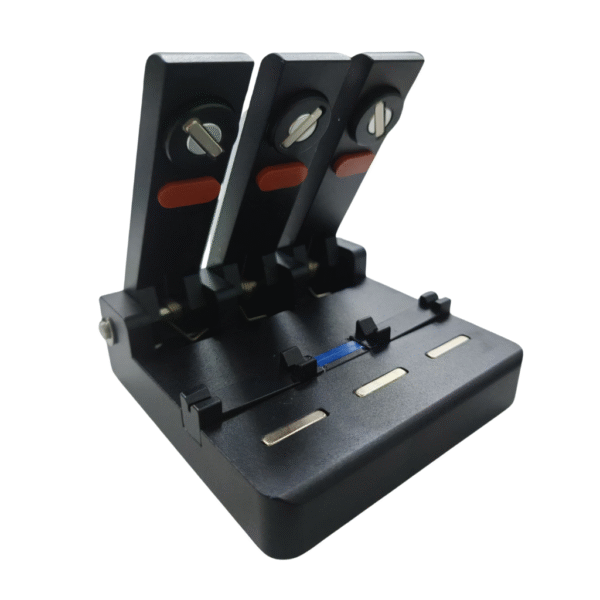

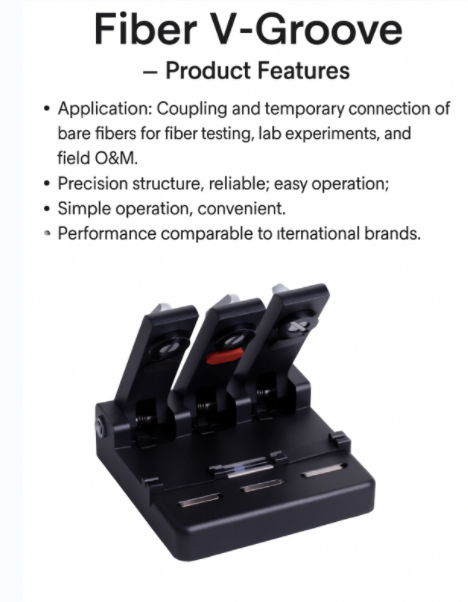

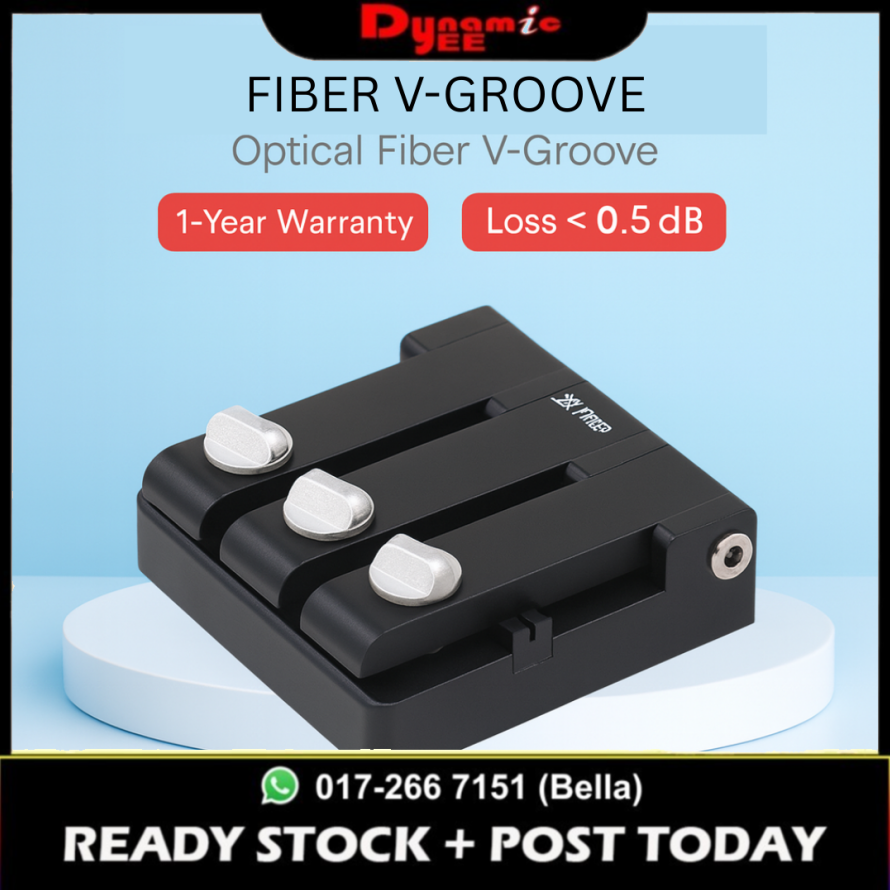

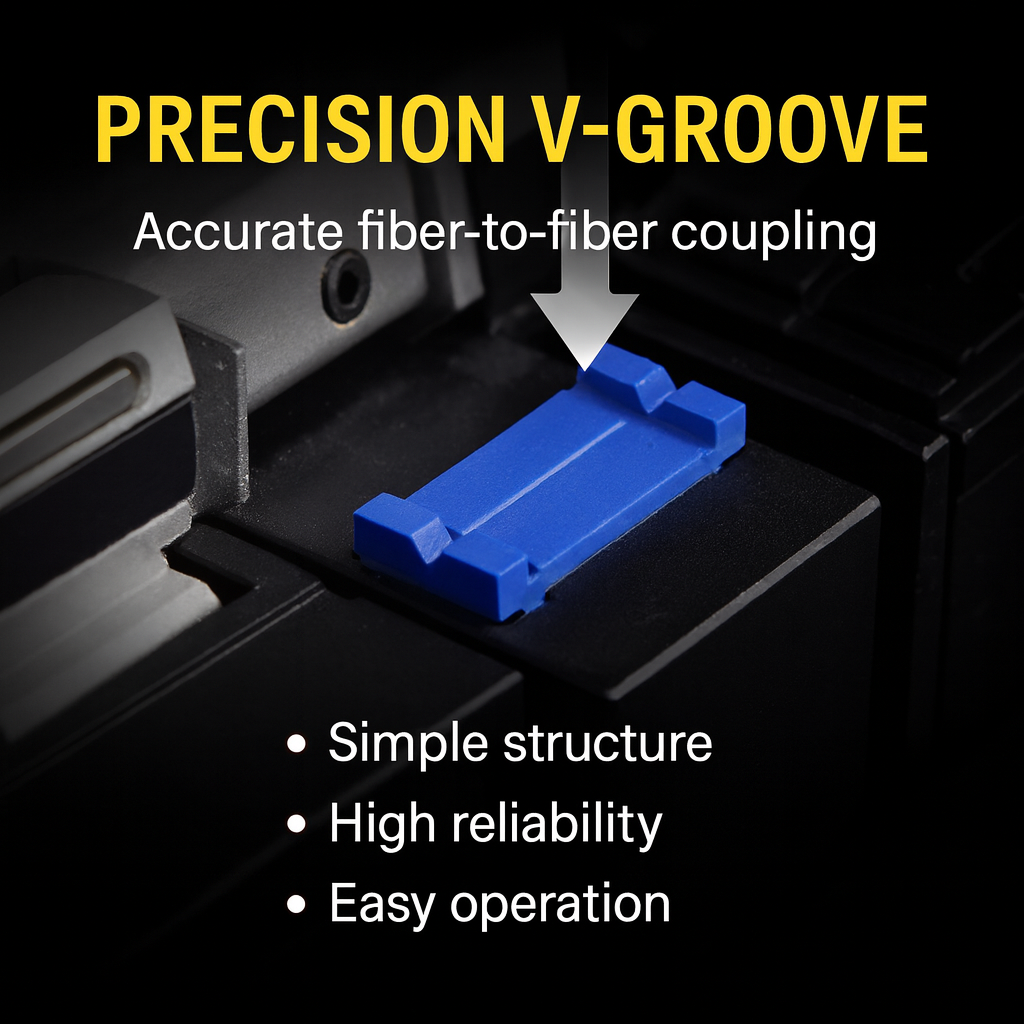

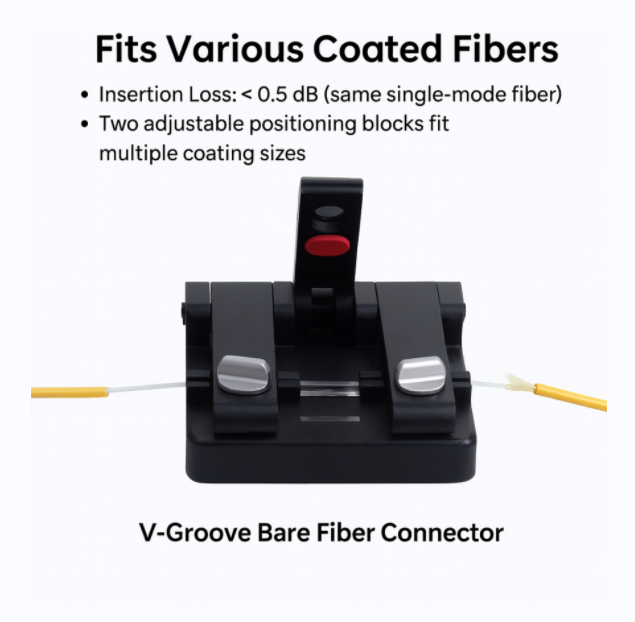

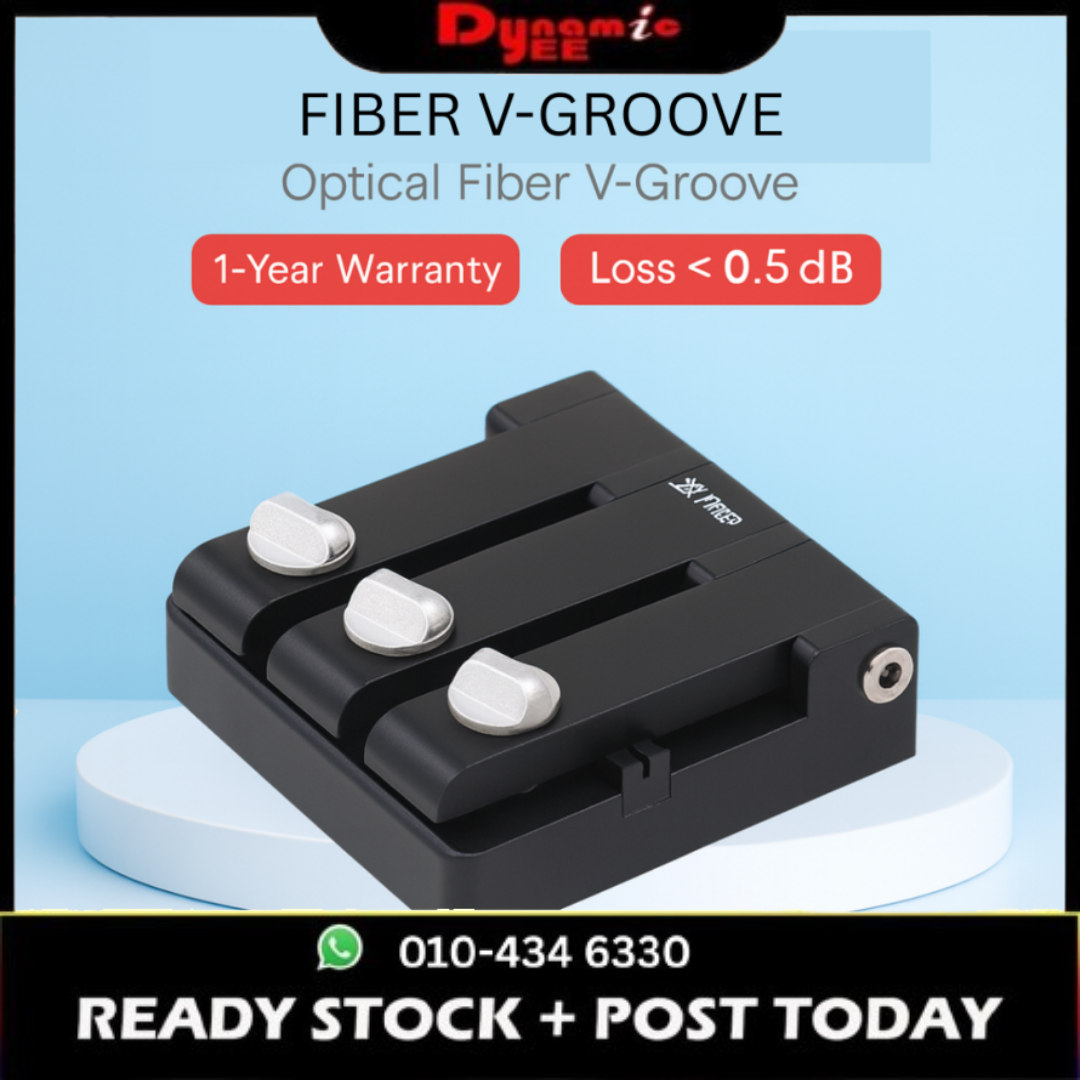

1. Fiber Optic Aligner: This alignment tool uses high accuracy V groove to locate fibers, allowing 2 optical fibers to be connected in a straight line with a loss of ≤ 0.5dB, suitable for temporary fiber docking testing.

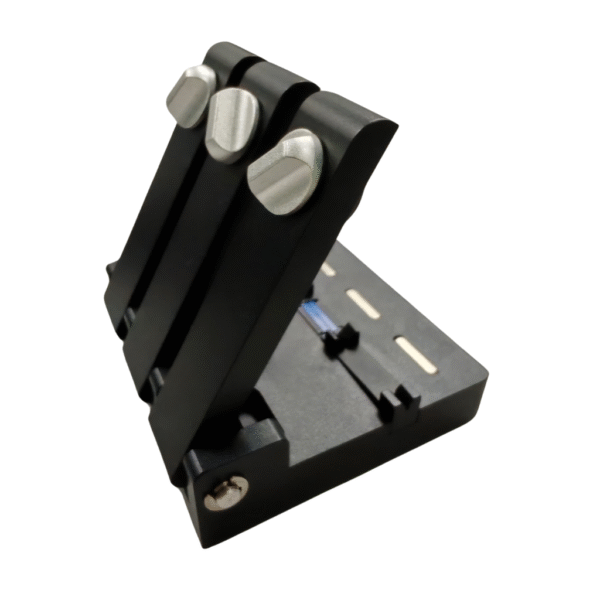

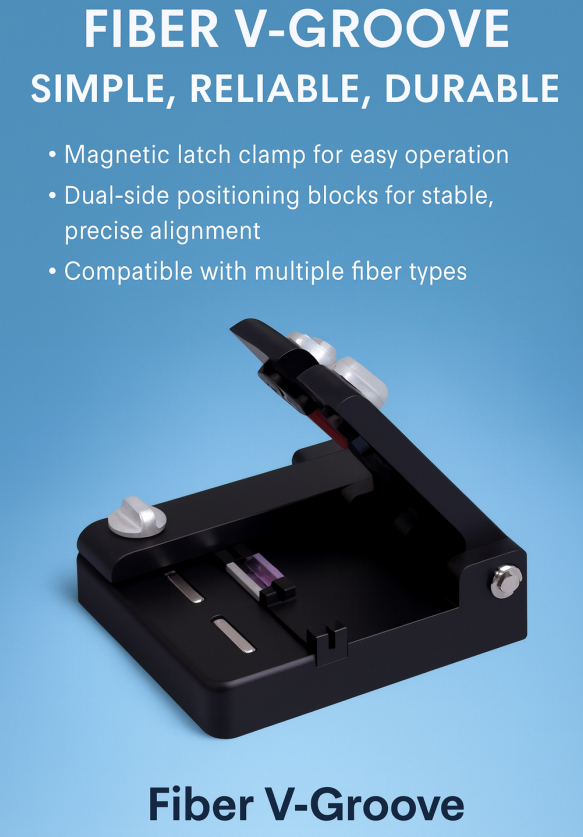

2. Magnetic Switch: The fiber optic aligner pressure plate is equipped with a magnetic switch, which is easy to open and close, helping to stabilize the fiber optic and ensuring stable and convenient operation.
3. Quick Alignment: This tool has an automatic alignment function, which can quickly and accurately align the fiber end face, improving the reliability and stability of fiber optic connections.
4. Flexible and Convenient: This bare fiber aligner has a wide range of application and strong flexibility, and can adapt to different types and specifications of fiber alignment, with strong practicality.
5. Scope of Application: The V groove fiber aligner is widely used for fiber docking testing, suitable for optical cables, leather wires, and tail fibers, etc., compact and lightweight, and easy to operate.
Spec:
Item Type: Single Core Fiber V Groove Aligner
Application: For all kinds of optical fibers
Loss: ≤0.5dB

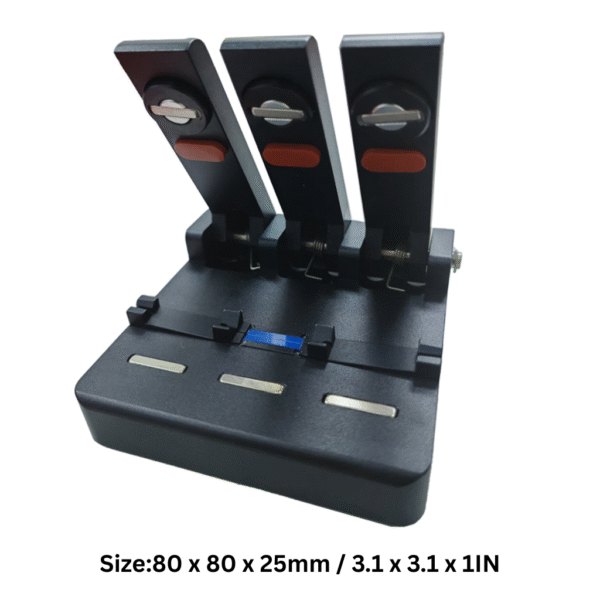

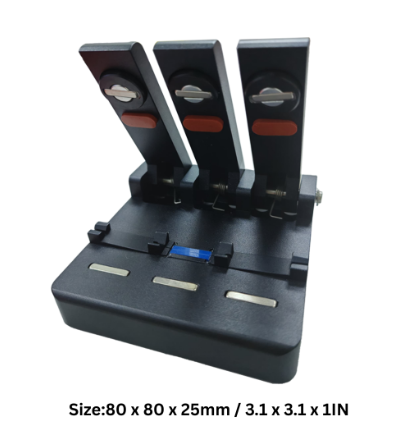

Size: Approx. 80 x 80 x 25mm / 3.1 x 3.1 x 1in

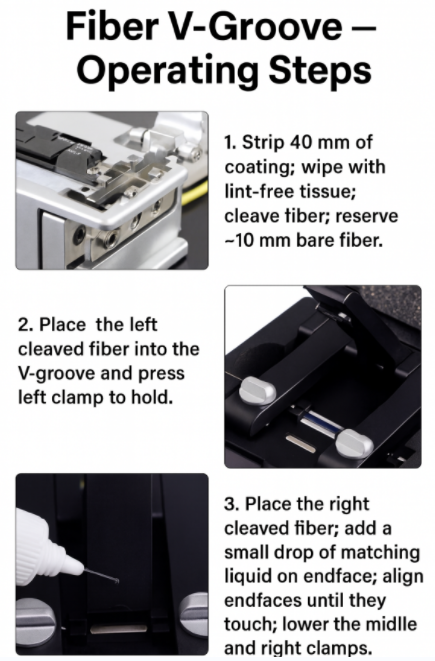

How to Use:
Instructions for Temporary Fiber Coupling:
1. Use fiber stripping pliers to remove about 40mm of fiber coating.
2. Use a fiber cleaver to cut the fiber end, place the fiber flat in the guide groove and V groove. The end should be in the middle of the V groove.
3. Cover the fiber with a press plate and press down. Apply glycerin to the aligning end on the other side and cover with a press plate.

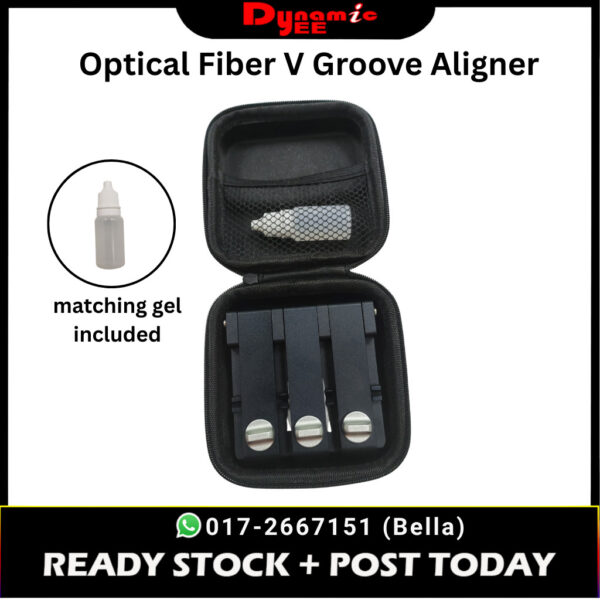

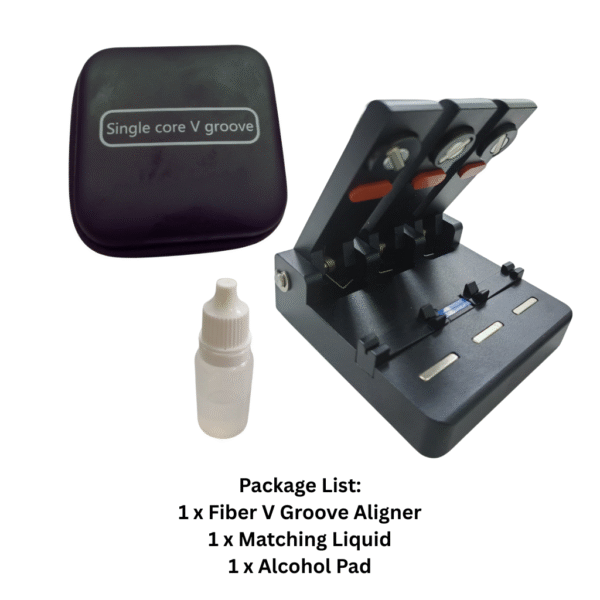

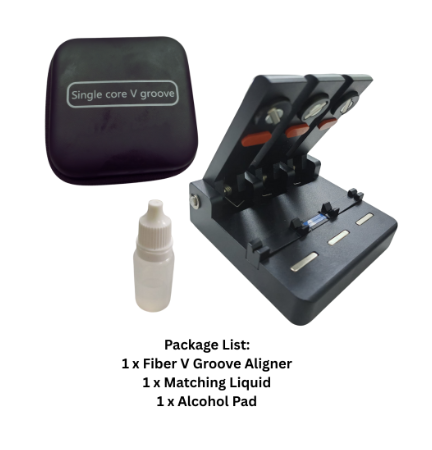

Package List:

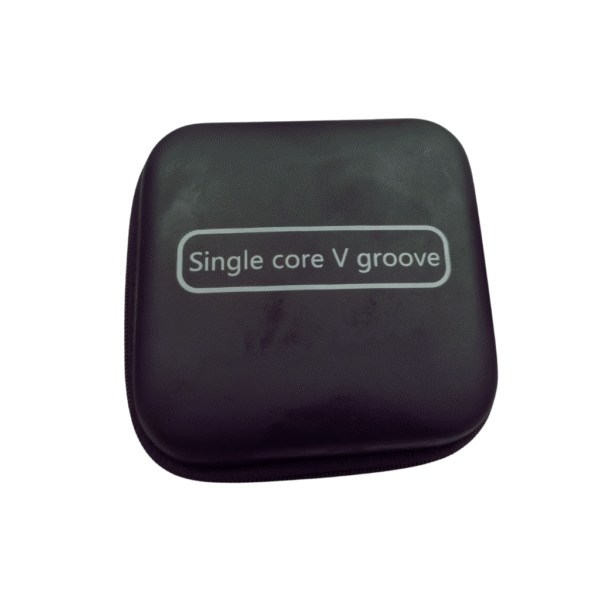

1 x Fiber V Groove Aligner
1 x Matching Liquid
1 x Alcohol Pad
