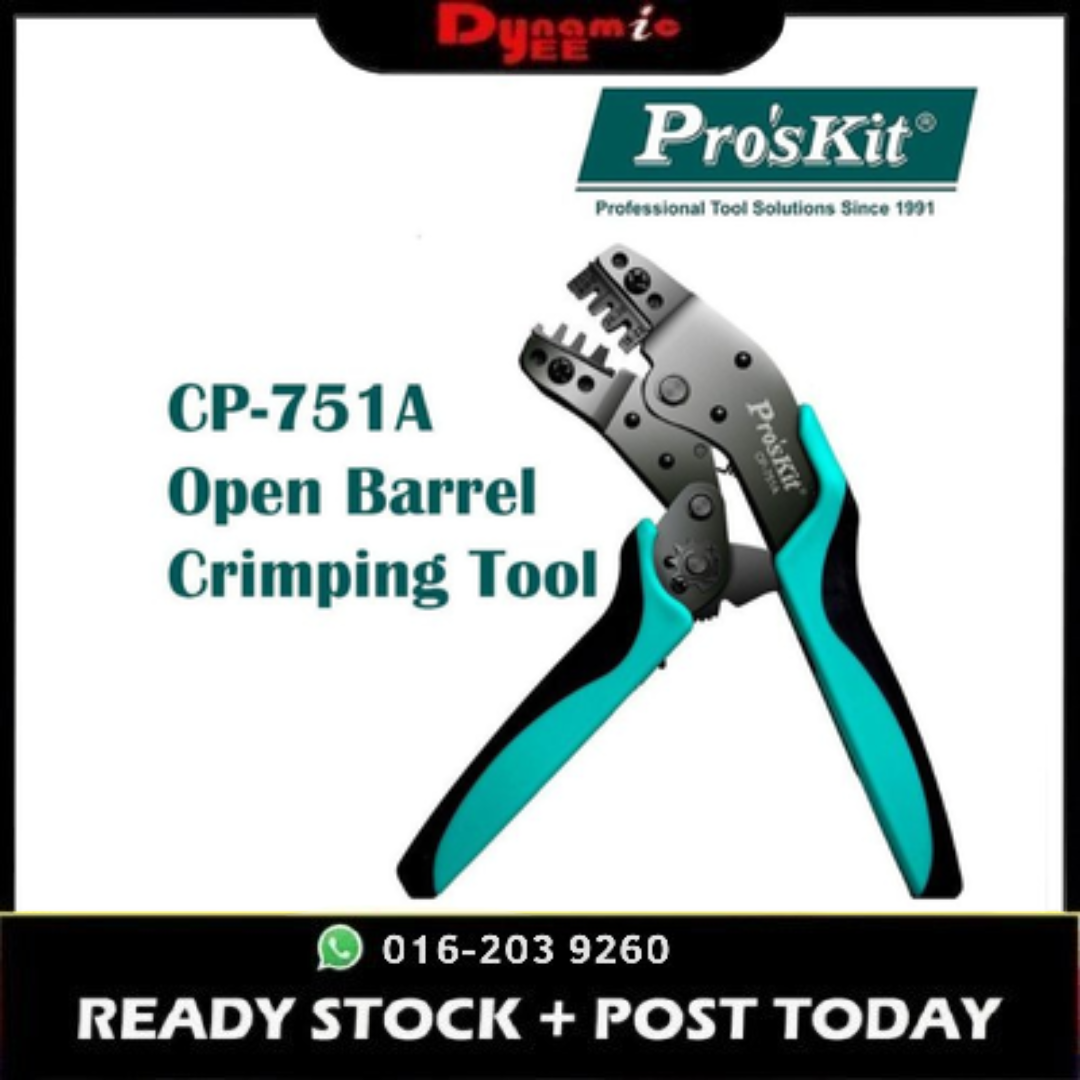

* Compatible with 2.0 、 2.54 、 3.96mm open barrel terminals including pH 、 XH 、 D-SUB 、 SM 、 El 、 KF 、 VH 、 Ch 、 5557, also compatible with 2.8 、 4.8mm non-insulated open barrel terminals.
* Made from high quality carbon steel with black oxide finished for anti-rust.
* High quality crimping due to precise dies and integral lock.
* Ergonomically shaped non-slip TPR handle for user comfort.
* The ratchet mechanism provides high efffort saving and good pressure adjustment.
Material:
-Body: S50c
-Handle: TPR pp
-Die: AISI 4140 alloy steel
HRC: 45±3
Application:
-AWG: 30-24 / 22-18
-Din: 0.05-0.25 / 0.34-1.0mm2
-JIS: 0.05-0.25 / 0.35-0.9mm2
Dies width: 2.0 / 2.54 / 3.96mm
Terminals: PH, XH, D-SUB, SM, el, KF, VH, CH, 5557, 2.8, 4.8
Oal: 190mm
pokmeyyyy (verified owner) –
Barang sampai dengan selamat.
nurizzanikmal523 (verified owner) –
Barang telah selamat sampai…penghantaran pantas…banyak kali repeat order dengan seller nie recomended 👍👍👍
zulwahyuhidayat (verified owner) –
Quality:terbaik terbaik terbaik terbaik terbaik terbaik
fatinarrian (verified owner) –
Terima kasih seller
aljabbar99 (verified owner) –
Dibalut kemas
nzfnetworkservice (verified owner) –
Recommended seller
askcompinternational (verified owner) –
Quality:kualiti baik
aliff1617 (verified owner) –
Thank you
edinlxx (verified owner) –
barang dah sampai seperti biasa xde masalah prnghantaran pun ok kualiti mcm biasa
j6b_gjc8cs (verified owner) –
Barang selamat diterima..cuma kali ni lewat diterima. Bukan salah seller tp lambat dari pihak shoppe express..makin teruk service dr shoppe express. Tq seller
