PATCH CORD MULTIMODE OM2 DUPLEX 2.0 SC/UPC-SC/UPC ORANGE PCM401

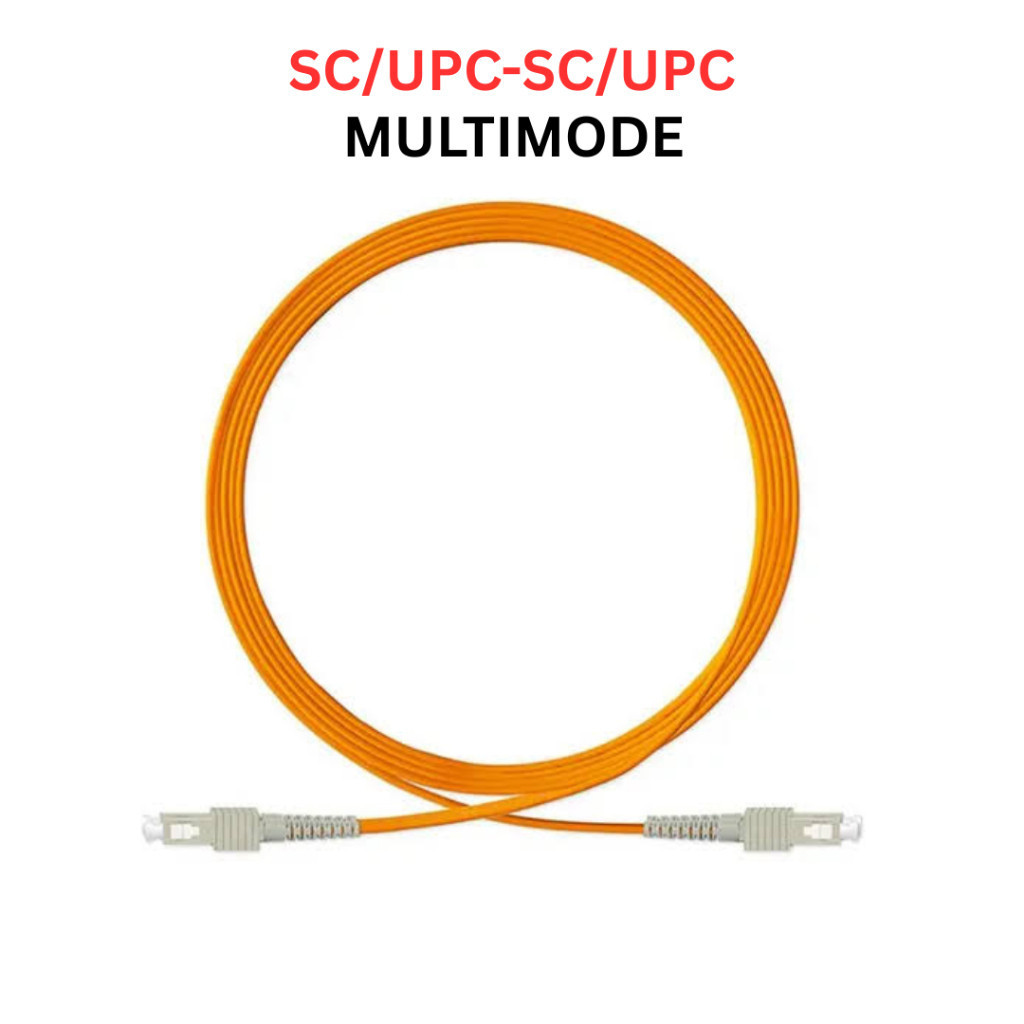

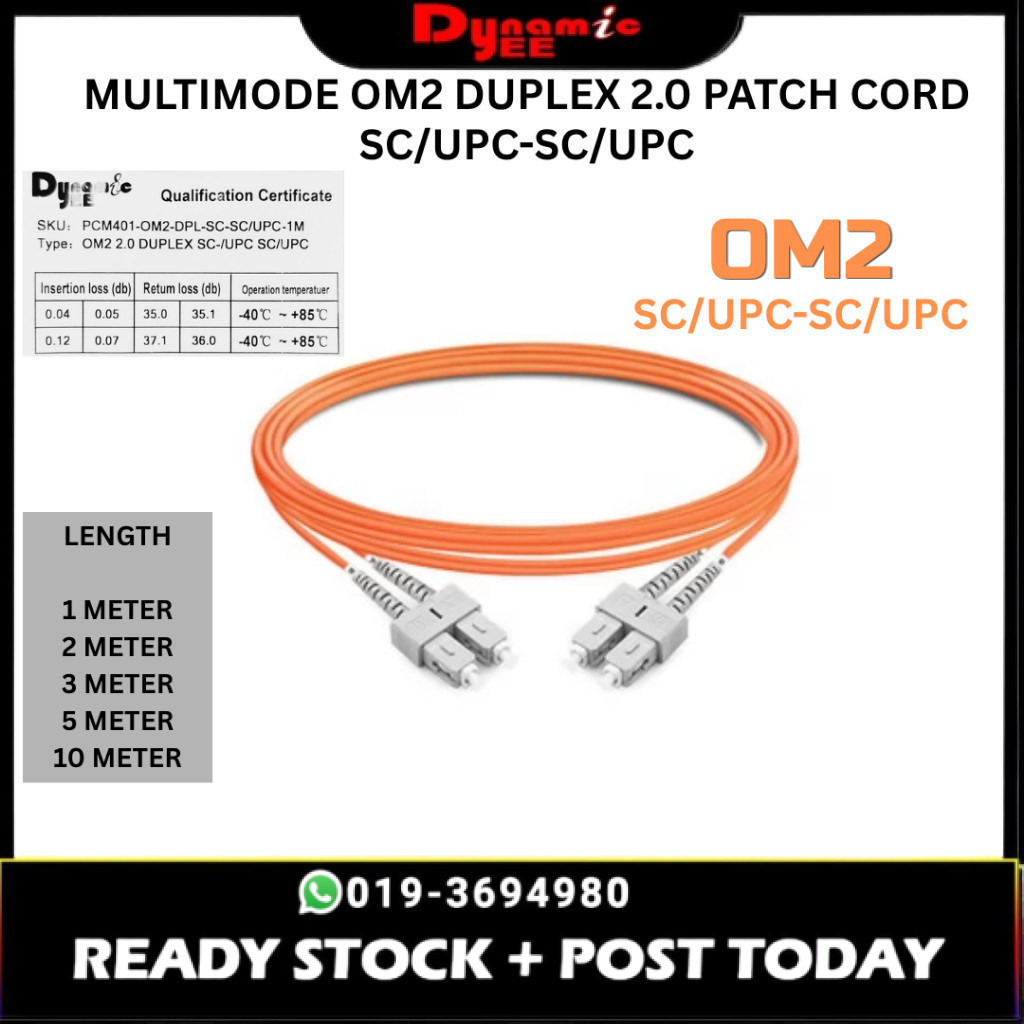

OM2 Multimode SC/UPC-SC/UPC Duplex Fiber Optic Patch Cord

OM2 multimode fiber optic patch cord designed for reliable fiber network connections. Equipped with SC/UPC connectors on both ends, duplex construction and a 2.0mm orange cable, suitable for compatible multimode fiber networking equipment and structured fiber installations.

Available in multiple lengths to suit different installation requirements.

Specifications
– Fiber Type: OM2 Multimode

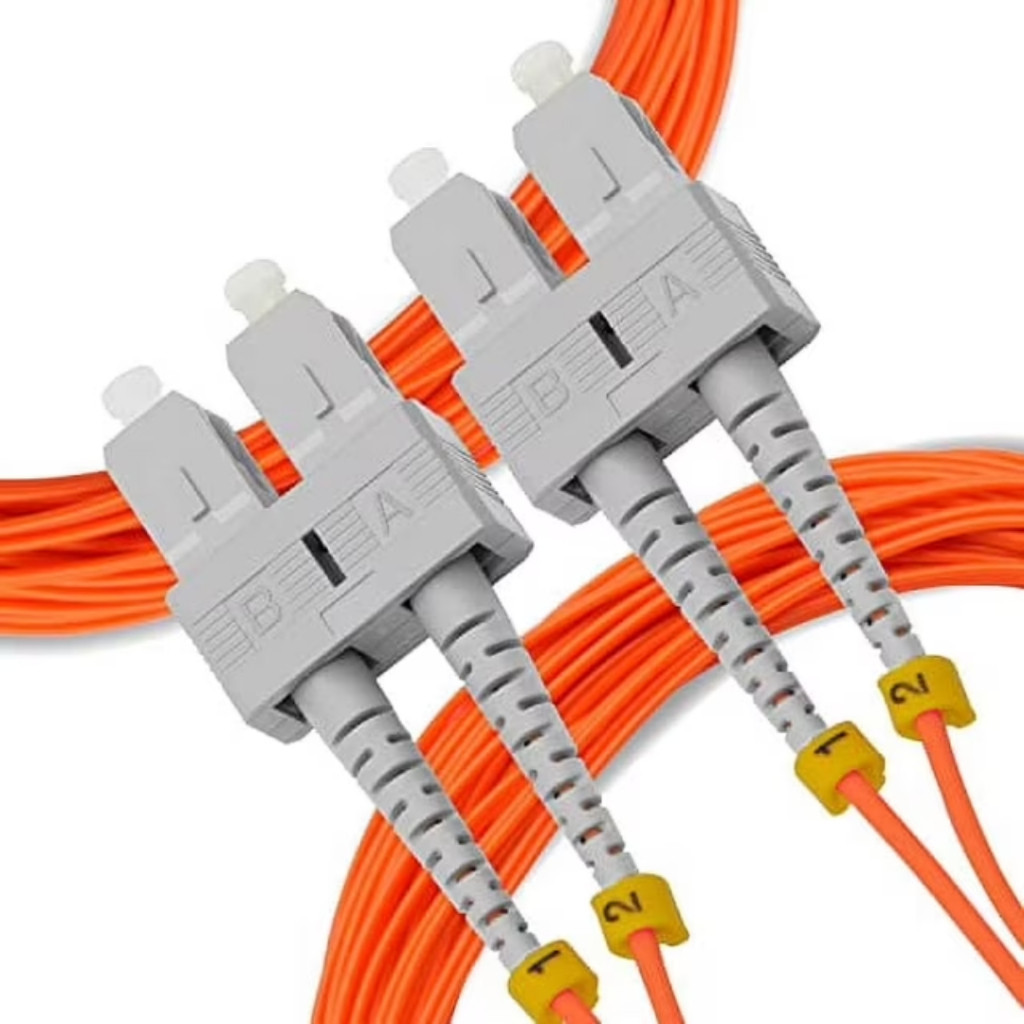

– Connector Type: SC/UPC to SC/UPC
– Configuration: Duplex
– Cable Diameter: 2.0mm
– Cable Colour: Orange

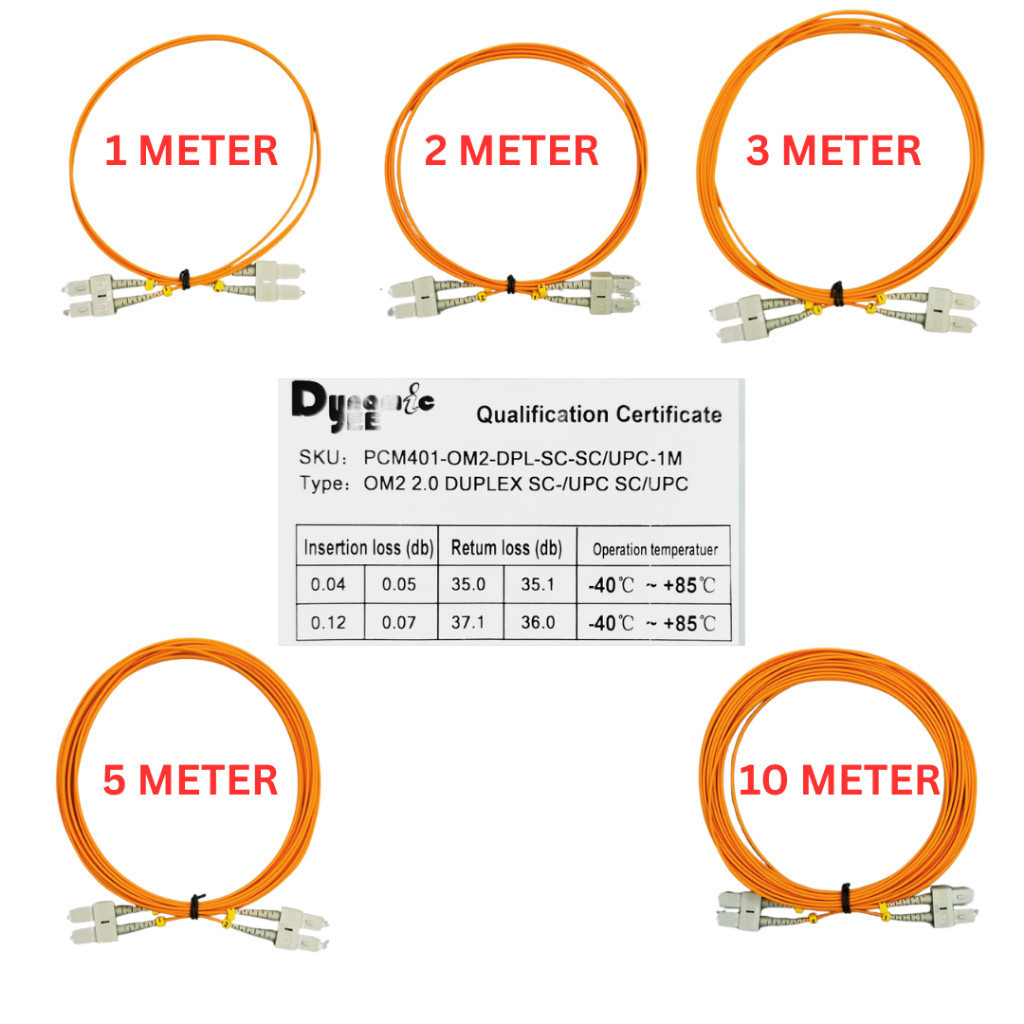

– Cable Length: 1m / 2m / 3m / 5m / 10m
– Polish Type: UPC
– Insertion Loss Test Readings: 0.04 / 0.05 / 0.12 / 0.07 dB
– Insertion Loss Range: Approx. 0.04–0.12 dB
– Return Loss Test Readings: 35.0 / 35.1 / 37.1 / 36.0 dB
– Return Loss Range: Approx. 35.0–37.1 dB
– Operating Temperature: -40°C to +85°C
Suitable For: LAN, fiber patch panel, ODF, network cabinet, telecommunications equipment and compatible multimode fiber networks.

Package Includes:
1 × Fiber Optic Patch Cord
