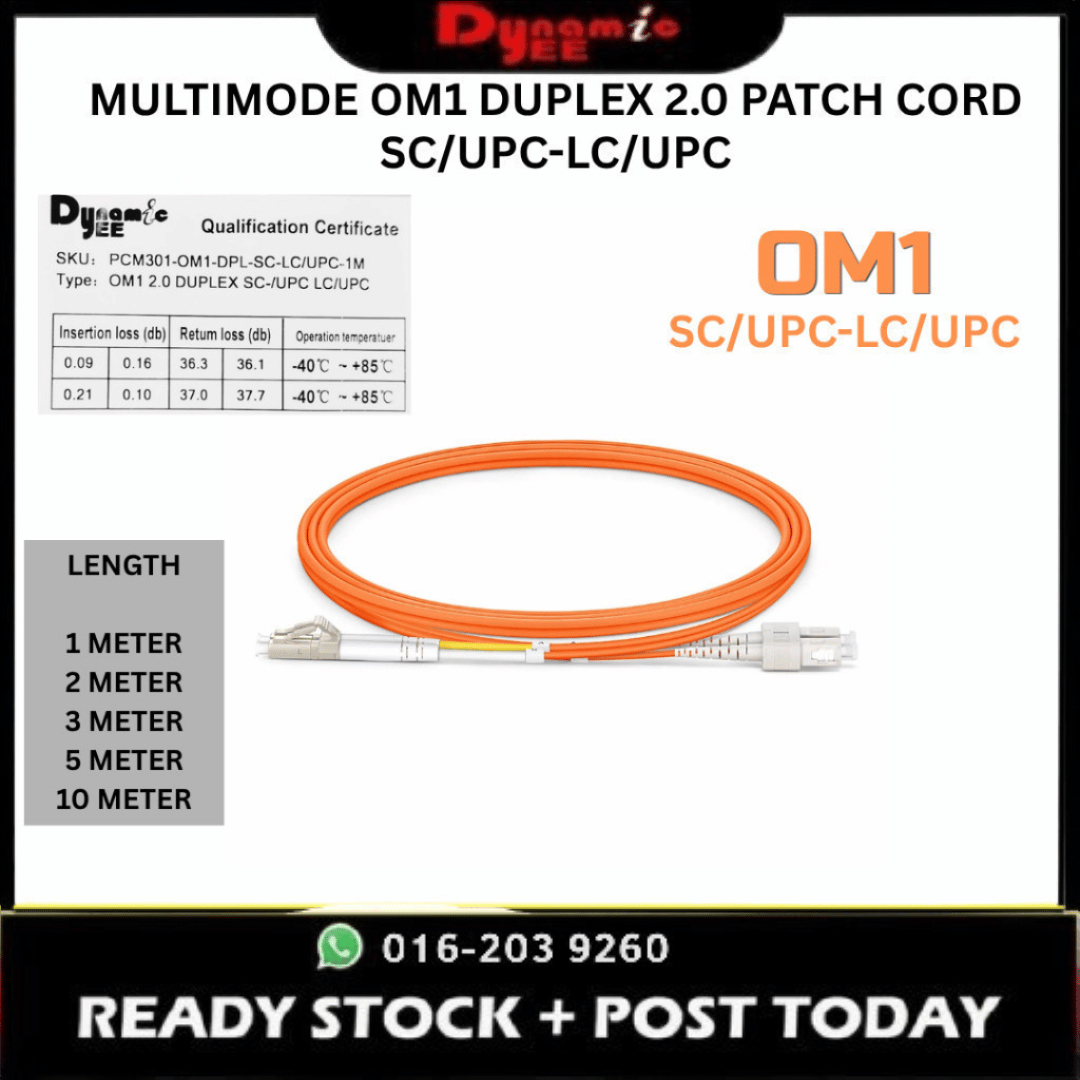

PATCH CORD MULTIMODE OM1 DUPLEX 2.0 SC/UPC-LC/UPC ORANGE PCM301

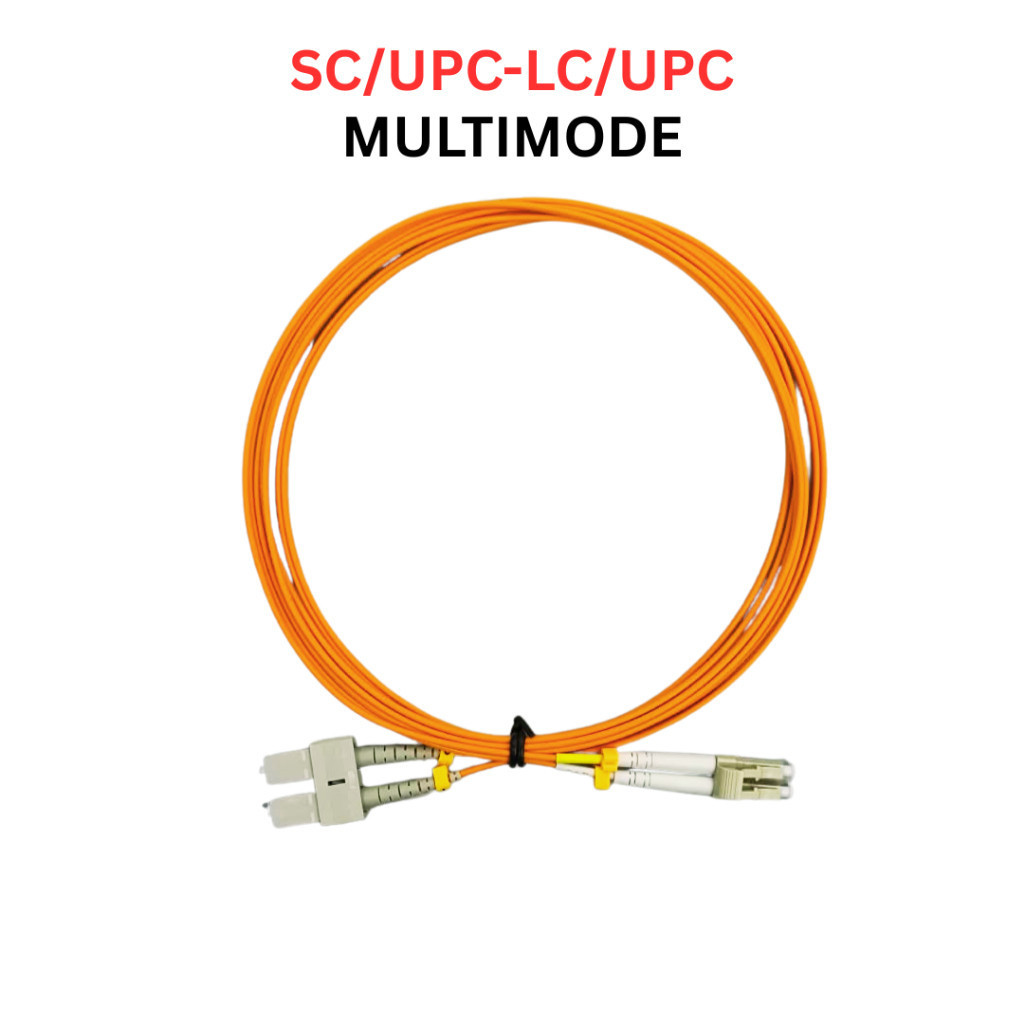

OM1 Multimode SC/UPC-LC/UPC Duplex Fiber Optic Patch Cord

OM1 multimode fiber optic patch cord designed for reliable optical network connections. Featuring SC/UPC connector on one end and LC/UPC connector on the other end, duplex construction and a 2.0mm orange cable, this patch cord is suitable for connecting compatible multimode fiber optic equipment with different connector interfaces.

Available in multiple lengths for different installation requirements.

Specifications
Fiber Type: OM1 Multimode

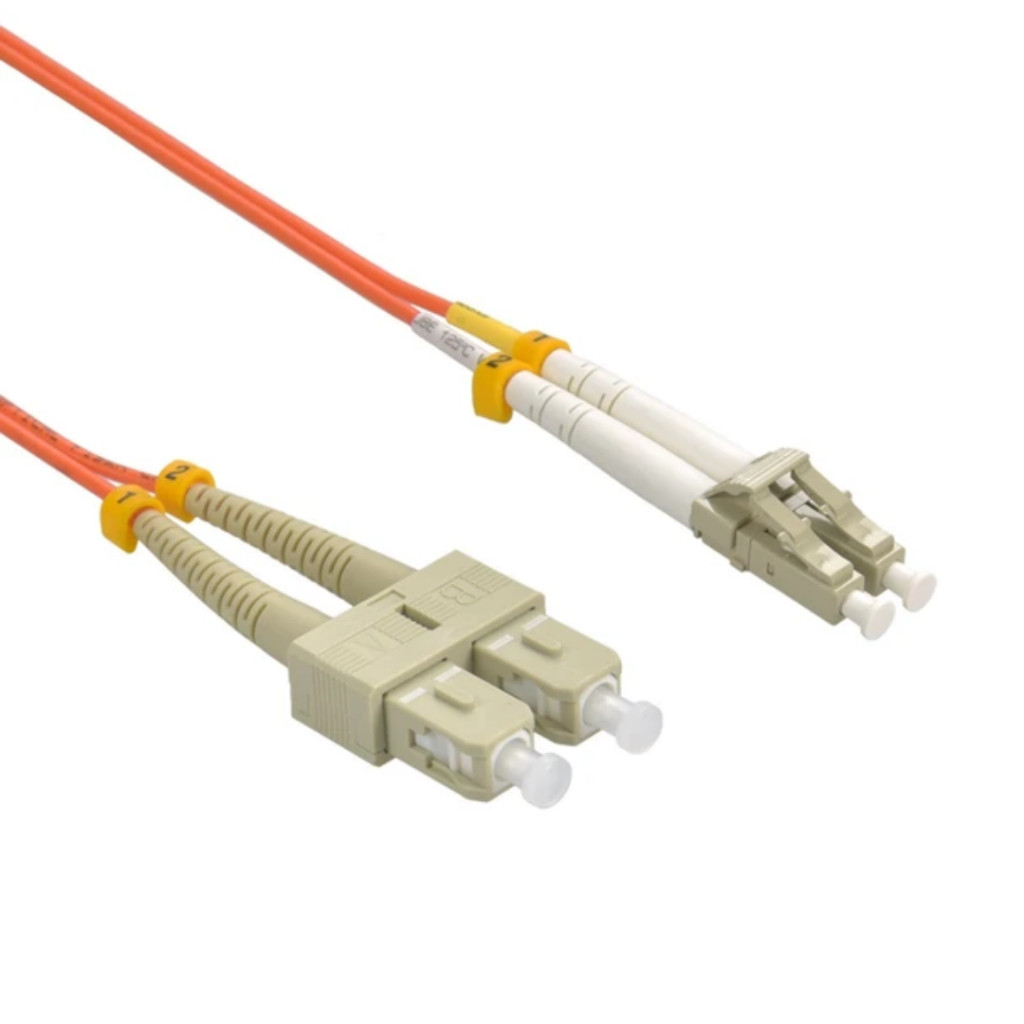

Connector Type: SC/UPC to LC/UPC
Channel: Duplex
Mode: Multimode
Cable Diameter: 2.0mm

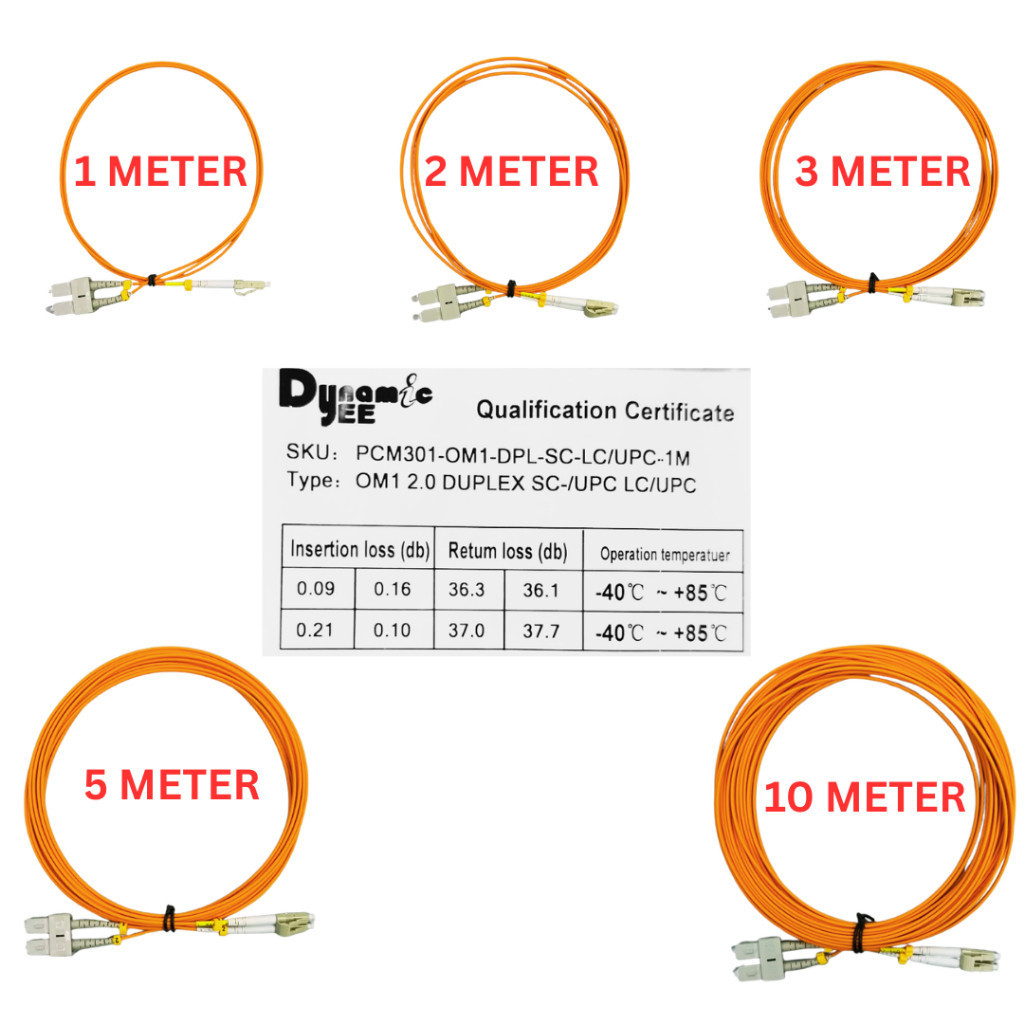

Cable Length: 1m / 2m / 3m / 5m / 10m
Cable Colour: Orange
Polish Type: UPC
Insertion Loss Test Readings: 0.09 / 0.16 / 0.21 / 0.10 dB
Return Loss Test Readings: 36.3 / 36.1 / 37.0 / 37.7 dB
Operating Temperature: -40°C ~ +85°C
Application: Telecommunications, LAN, Fiber Patch Panel, ODF, Network Cabinet, Data Communication and compatible Multimode Fiber Network.

Package
1 × Fiber Optic Patch Cord
