Indoor use only
Connector: SC to SC
Cable type: Simplex
Core cladding diameter Single mode 9/125
Cable outer diameter (mm): 3mm
Insertion loss: singlemode ≤1dB; Return loss: PC≥45dB UPC≥50dB, APC≥60dB
Number of plug: ＜1000 times
Change the amount of insertion loss: <0.20dB
Interchangeability: any docking ≤0.18dB
Tensile strength: 45Kg
Vibration test: <0.1dB (5-50Hz, 1.55SM amplitude)
Working temperature: -40~+80°C
Storage temperature range: -40~+85°C
Length: 1METER, 2METER, 3METER, 5METER, 10METER, 15METER,20METER
Standards: RoHS Compliant
Applications: Optical fiber communication systems; Optical fiber access networks; Optical fiber data transmission; Local area network (LAN)
Patch Cord

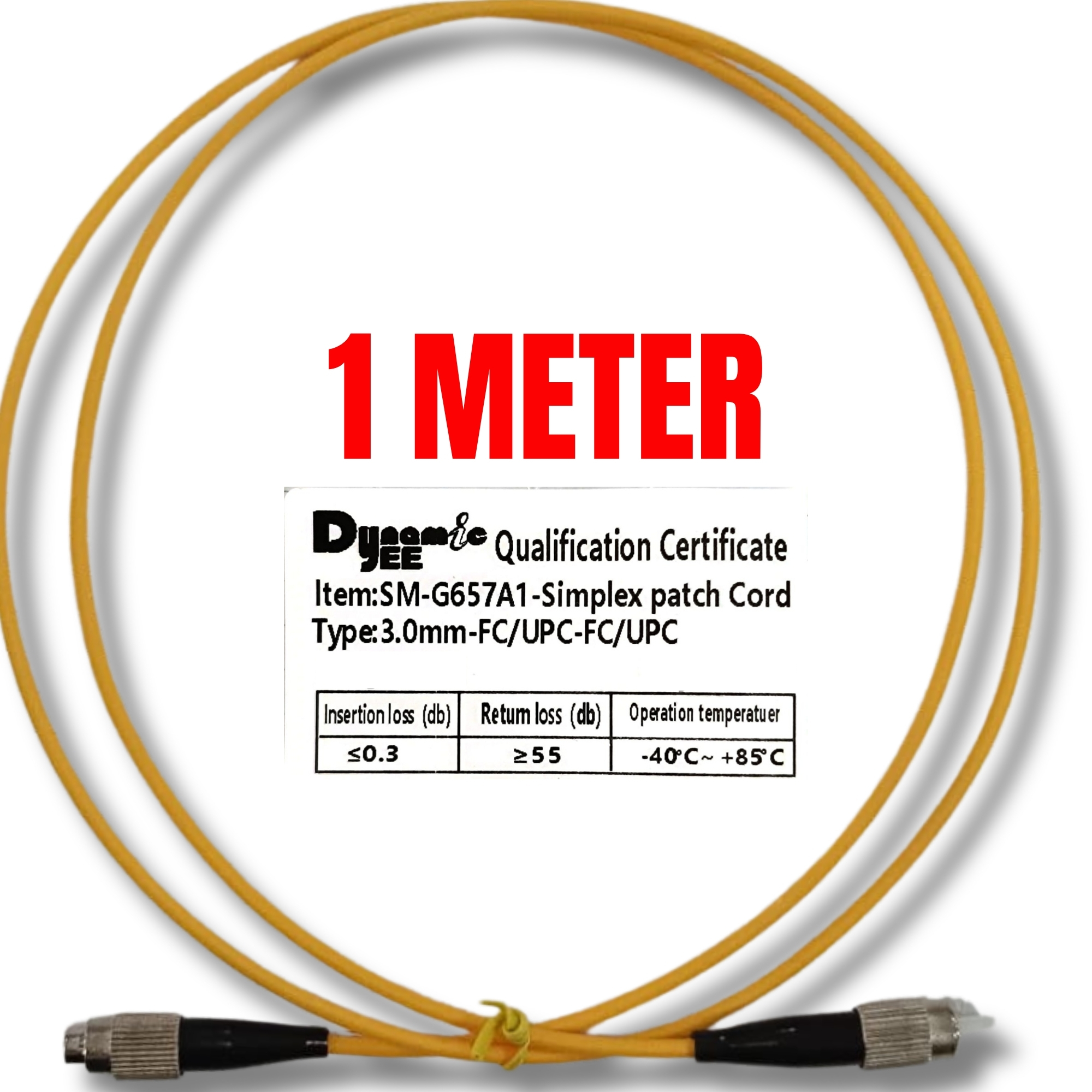

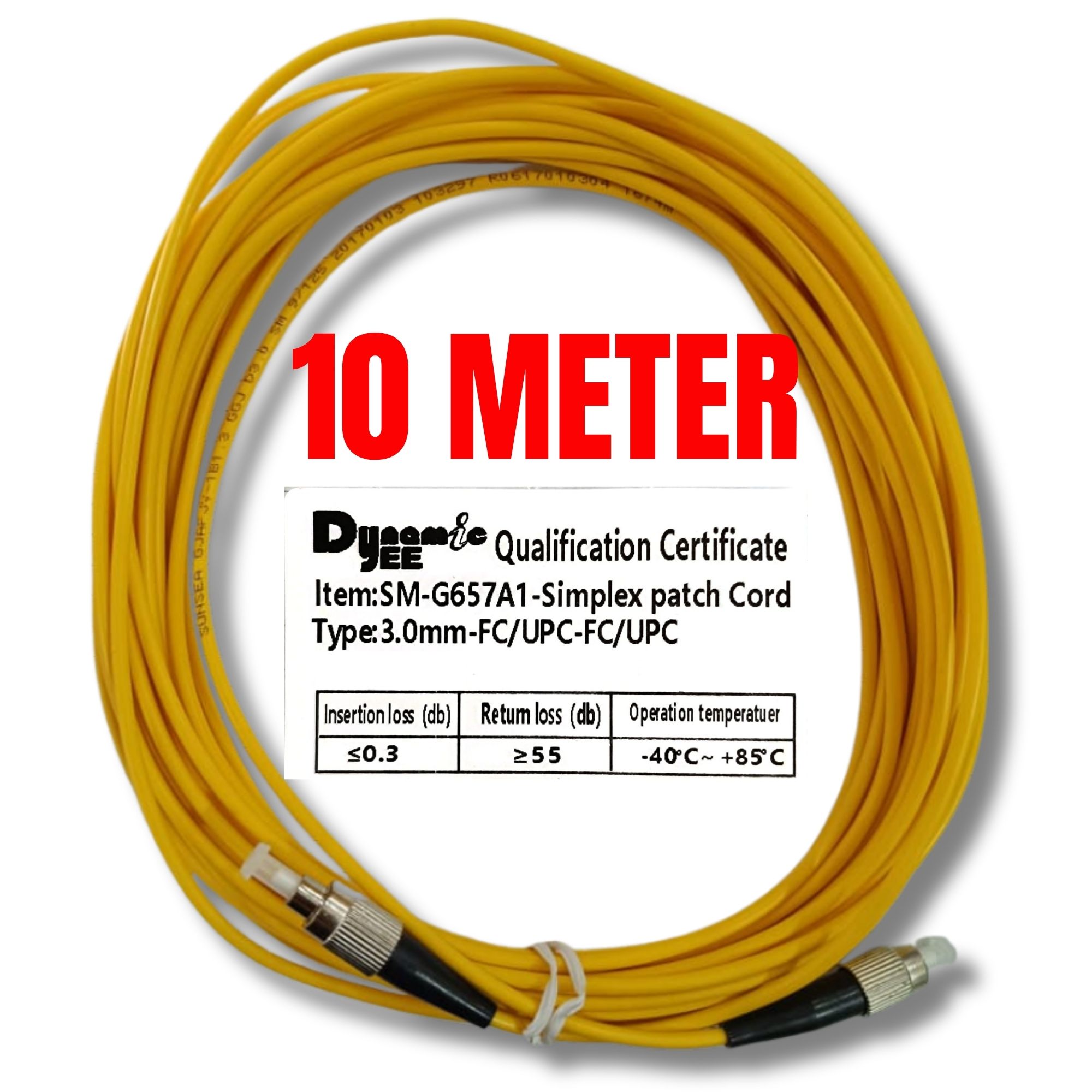

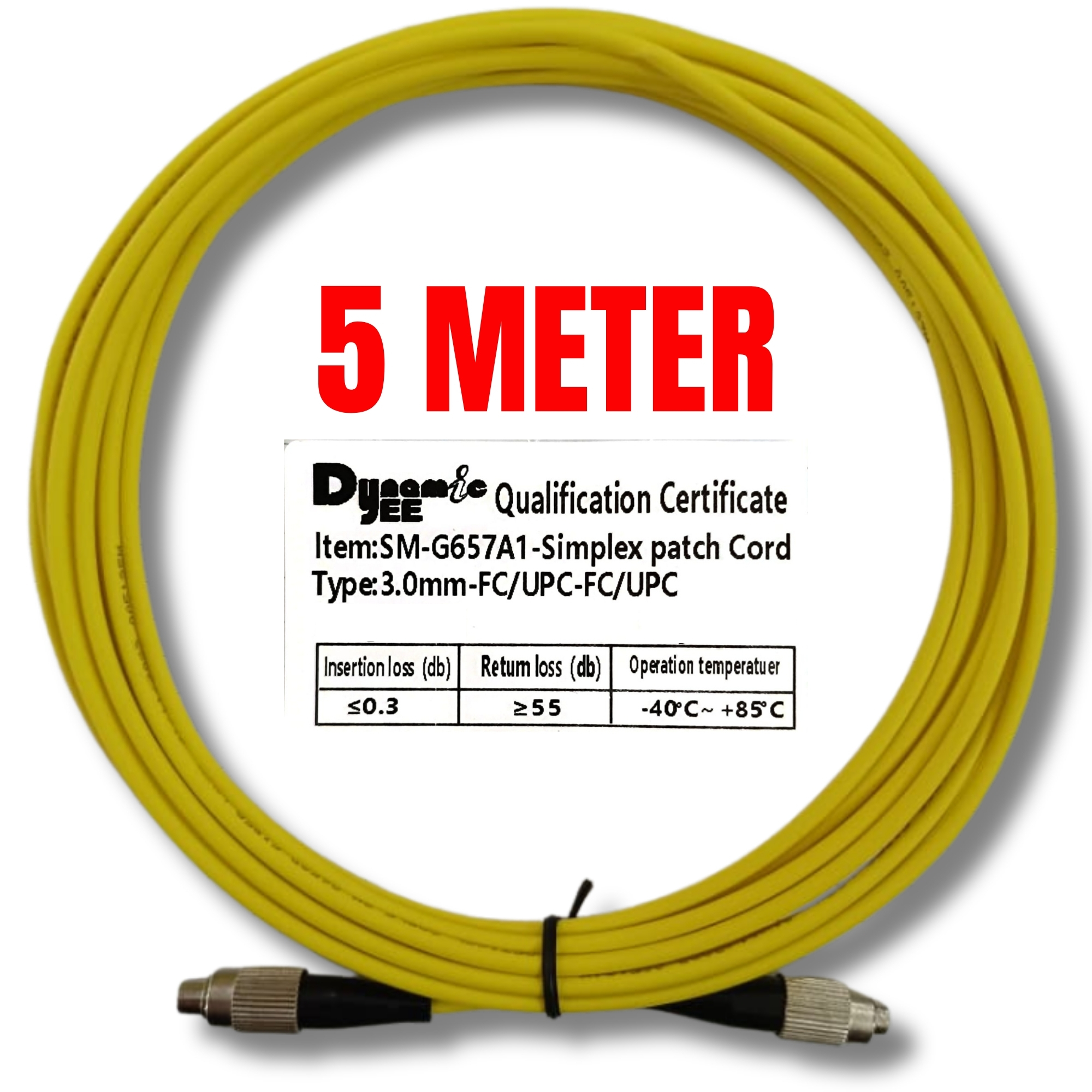

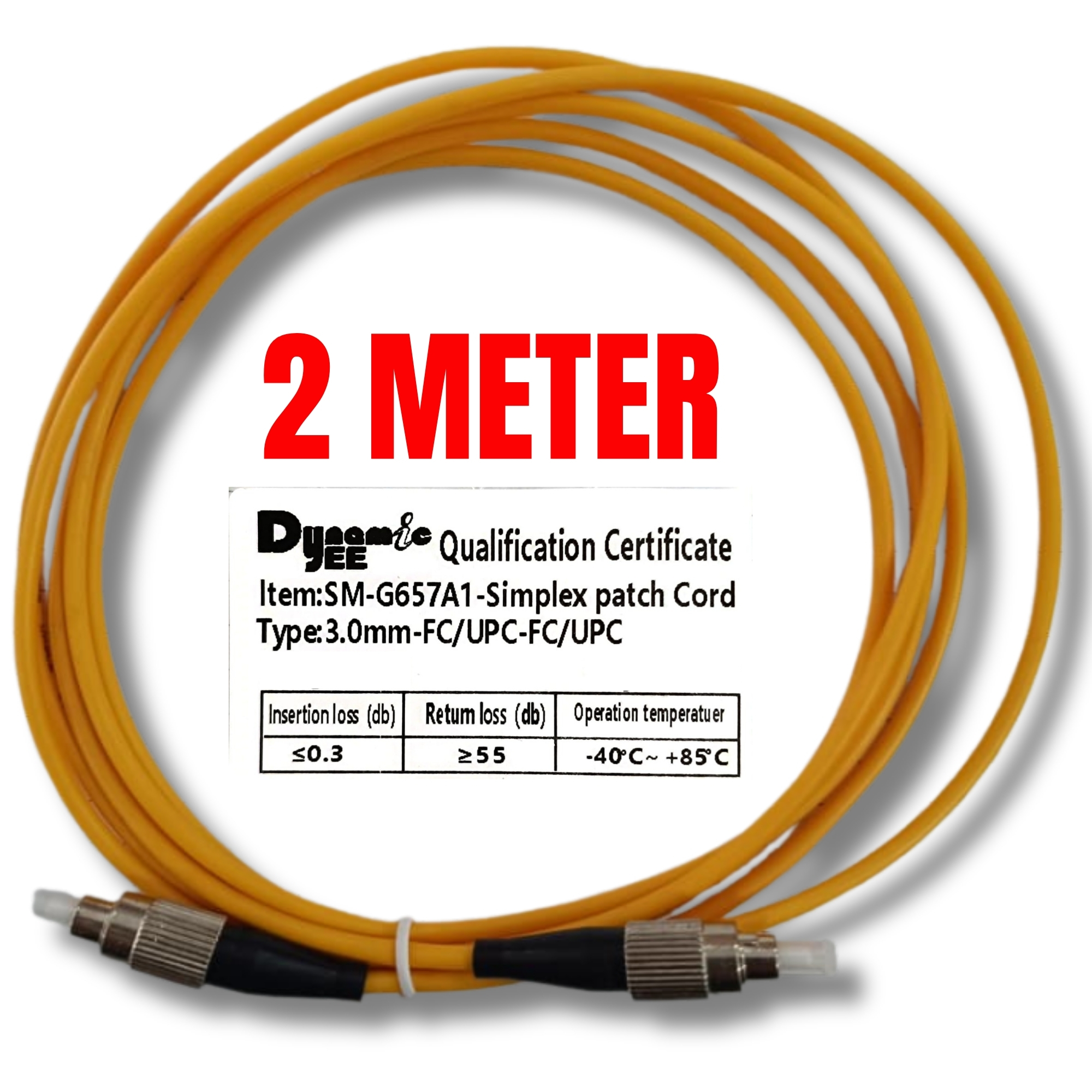

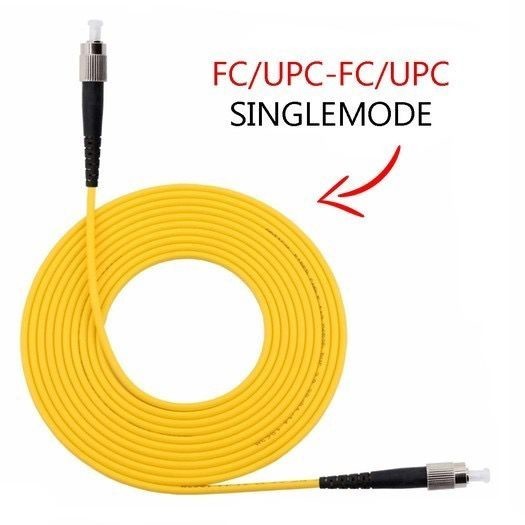

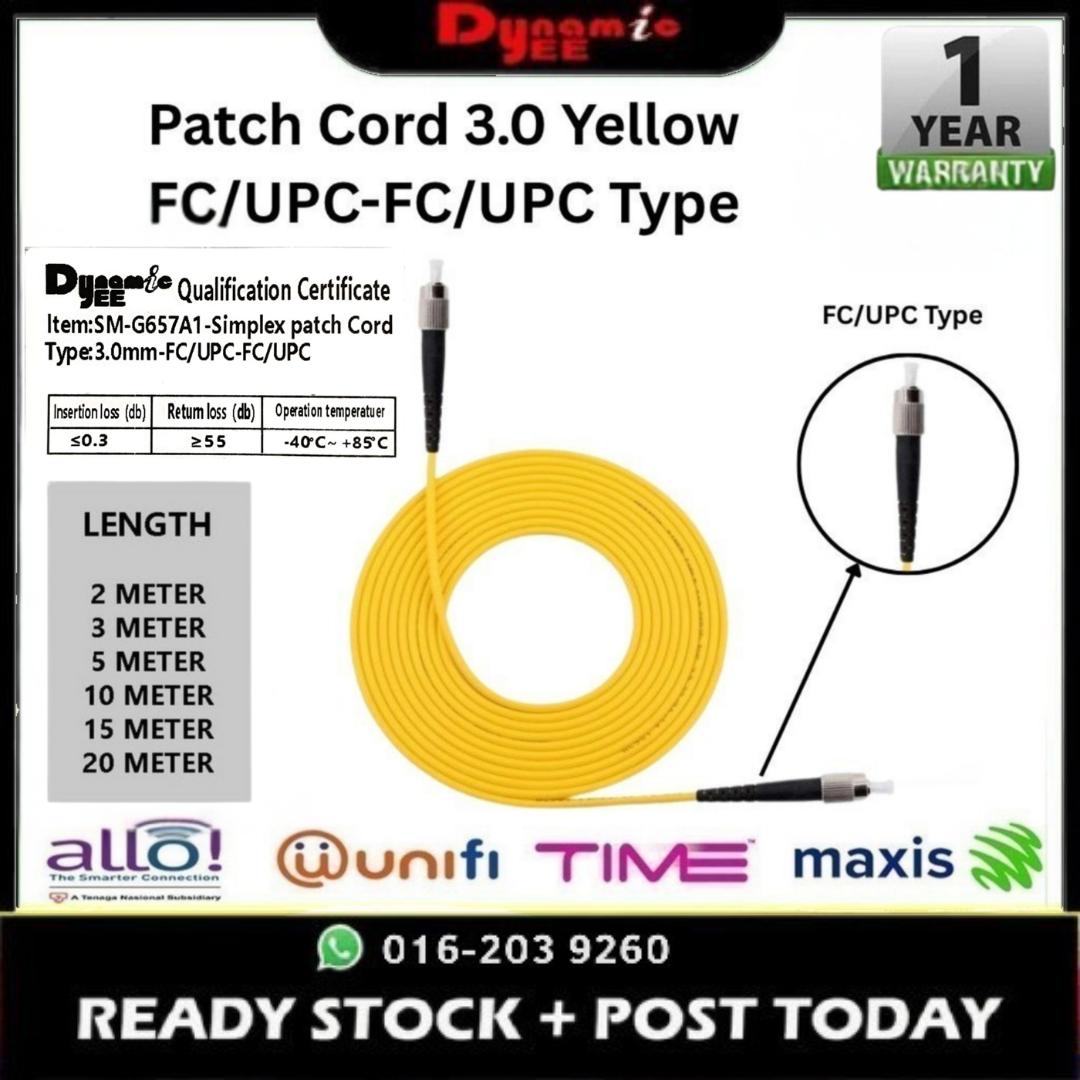

Patch Cord 3.0 Yellow FC/UPC-FC/UPC ( 2m ,3m ,5m ,10m ,15m,20m ) PC101
Price range: RM3.20 through RM15.00
| Weight | 0.01 kg |
|---|---|
| Dimensions | 1.00 × 1.00 × 1.00 cm |

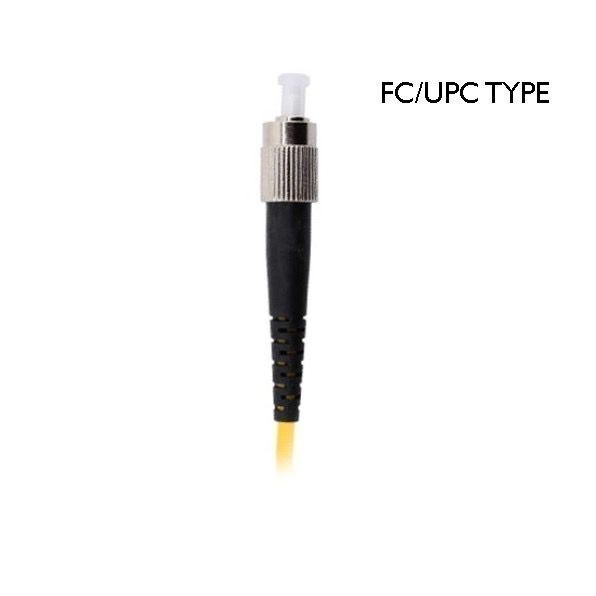

| Patch Cord | FC/UPC-FC/UPC |
| Length | 1 Meter, 2 Meter, 3 Meter, 5 Meter, 10 Meter, 15 Meter, 20 Meter |
