Indoor use only
Connector: SC to SC
Cable type: Simplex
Core cladding diameter Single mode 9/125
Cable outer diameter (mm): 3mm
Insertion loss: singlemode ≤1dB; Return loss: PC≥45dB UPC≥50dB, APC≥60dB
Number of plug: ＜1000 times
Change the amount of insertion loss: <0.20dB
Interchangeability: any docking ≤0.18dB
Tensile strength: 45Kg
Vibration test: <0.1dB (5-50Hz, 1.55SM amplitude)
Working temperature: -40~+80°C
Storage temperature range: -40~+85°C

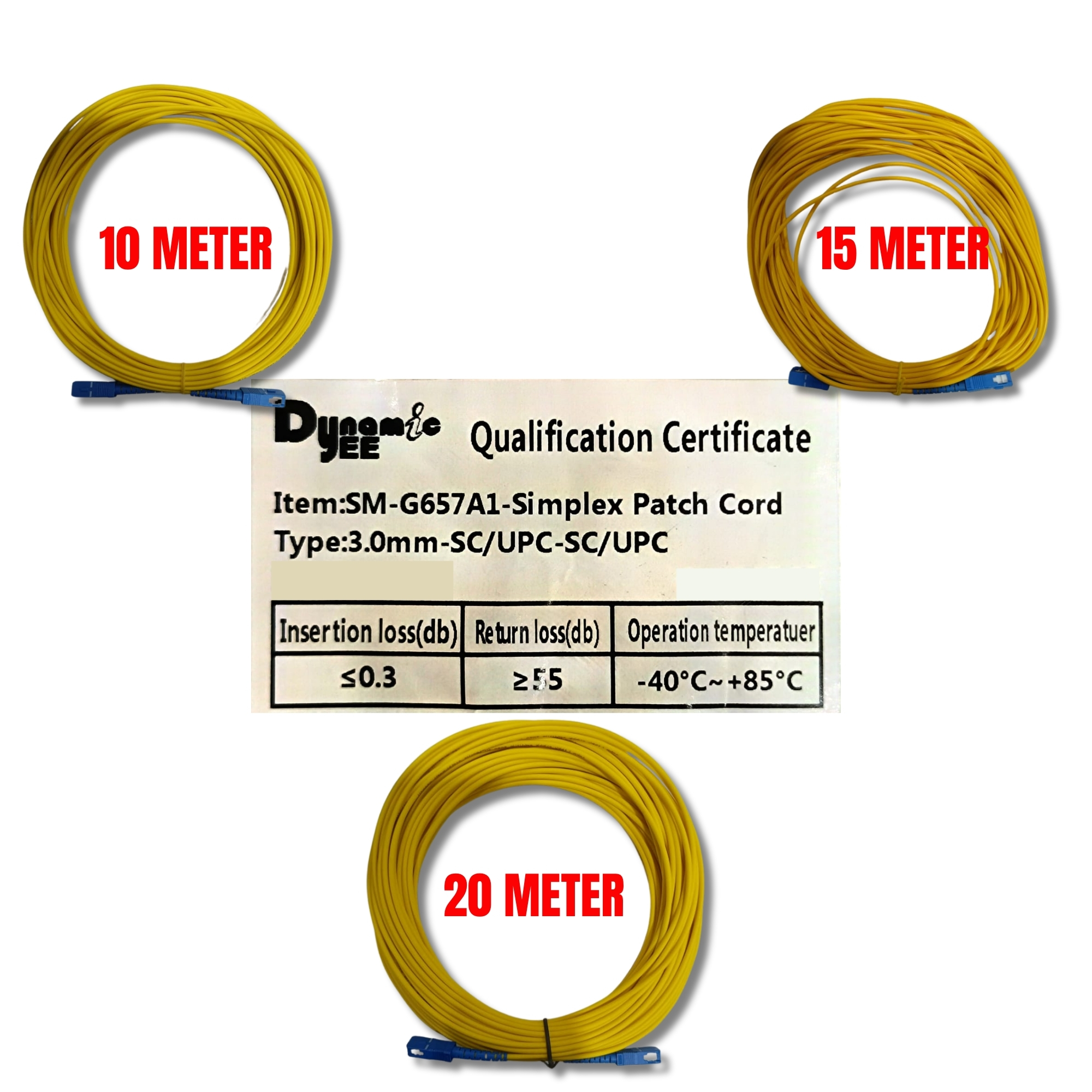

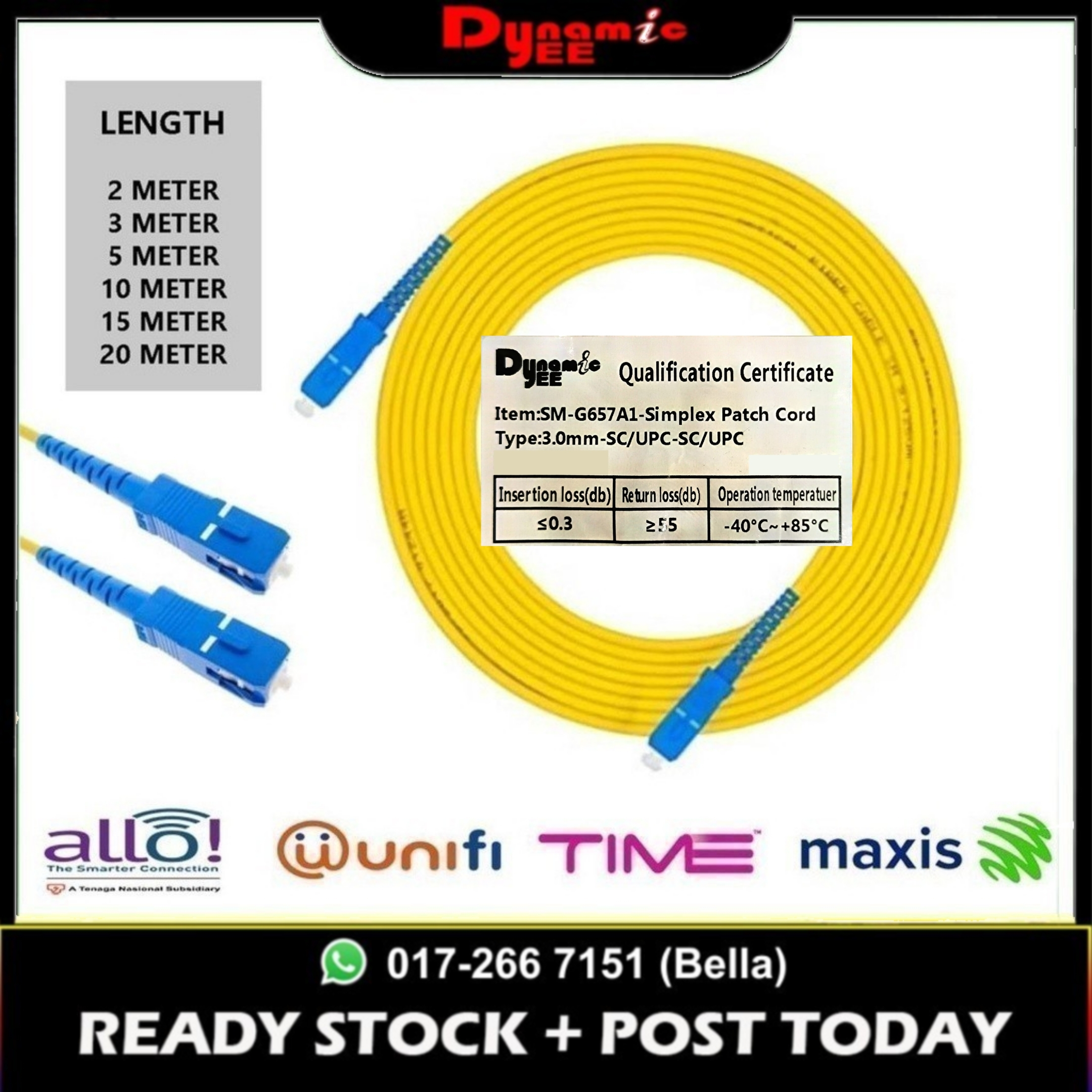

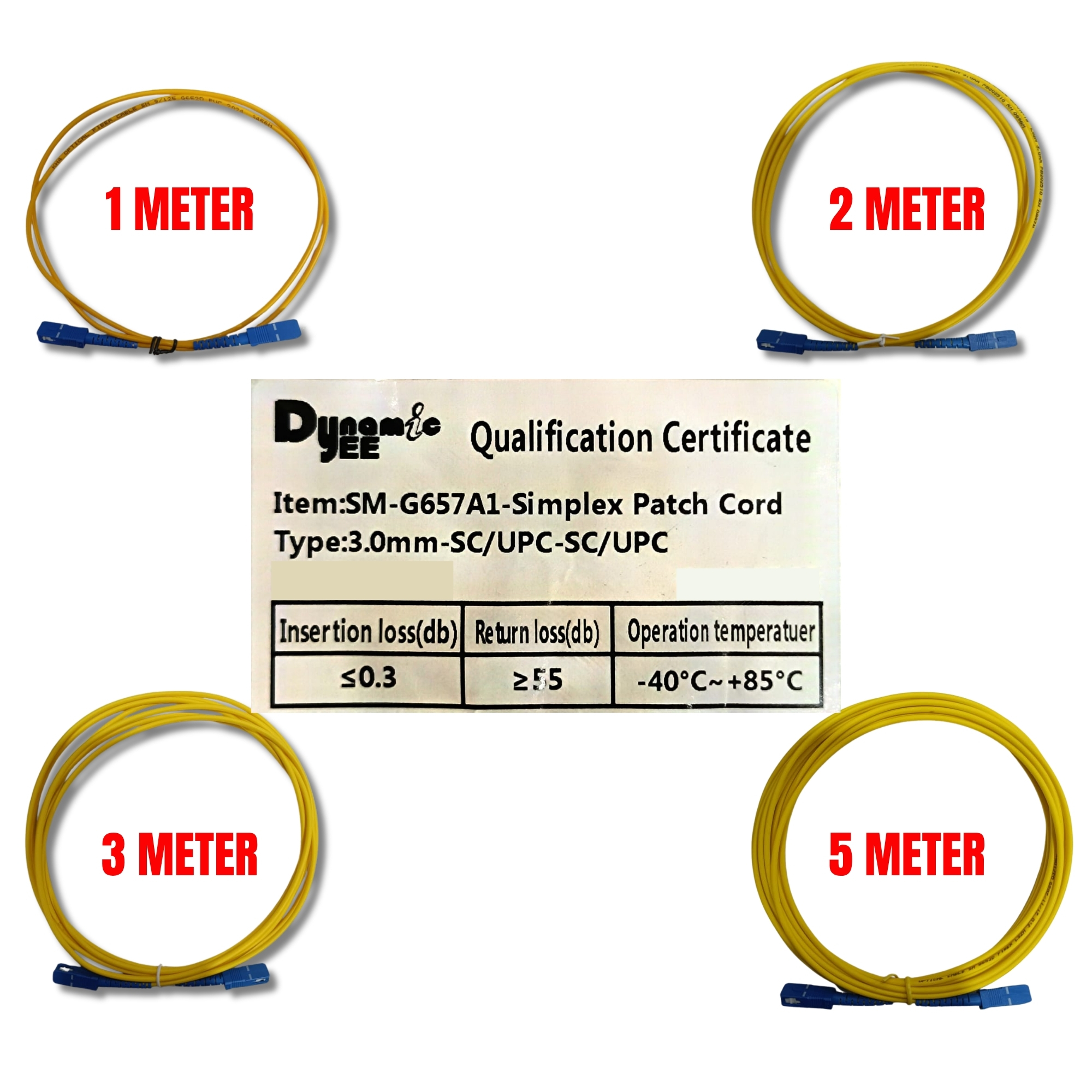

Length: 2METER, 3METER, 5METER, 10METER, 15METER,20METER
Standards: RoHS Compliant
Applications: Optical fiber communication systems; Optical fiber access networks; Optical fiber data transmission; Local area network (LAN)
| Weight | 0.10 kg |
|---|---|
| Dimensions | N/A |
| Patch Cord | SC/UPC-SC/UPC |
| Length | 1 meter, 2 meter, 3 meter, 5 meter, 10 meter, 15 meter, 20 meter |
