NOVKER SINGLEMODE MULTIMODE 2 IN 1 OTDR NK6060 Wavelength: 850/1300/1310/1550nm Dynamic Range: 24/26/35/33dB OT051

🔧 NOVKER NK6060 2-in-1 OTDR | Singlemode & Multimode | 850/1300/1310/1550nm | 24/26/35/33dB | OT051
The NOVKER NK6060 OTDR is a professional 2-in-1 Singlemode & Multimode Optical Time Domain Reflectometer (OTDR) designed for installation, maintenance, troubleshooting, and certification of fiber optic networks. Supporting 850/1300nm multimode and 1310/1550nm singlemode testing in one instrument, it eliminates the need for separate OTDR units, making it ideal for telecom engineers, contractors, data centers, and enterprise network maintenance.
Featuring a 5.6-inch color display, intuitive keypad operation, powerful event analysis, and multiple built-in optical testing functions, the NK6060 delivers fast and accurate fiber measurements for both short-distance LAN networks and long-distance backbone links.

🔴 Key Features

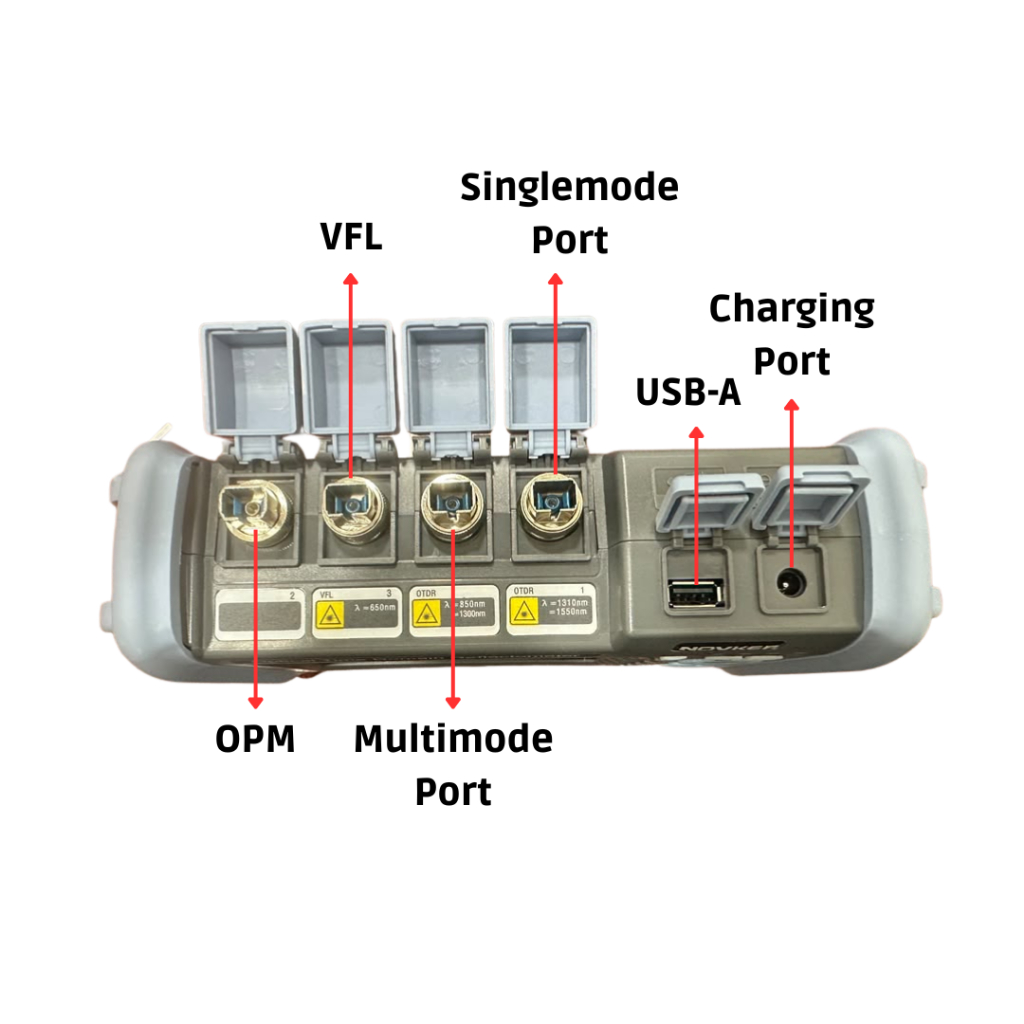

✔ 2-in-1 Singlemode & Multimode OTDR
Supports both Multimode (850/1300nm) and Singlemode (1310/1550nm) fiber testing in one device.
✔ High Dynamic Range
850nm: 24dB
1300nm: 26dB
1310nm: 35dB
1550nm: 33dB
Suitable for enterprise networks, FTTH, FTTx, data centers, campus networks, and telecom backbone testing.
✔ Professional Multi-Function OTDR
Built-in functions include:
OTDR
Optical Power Meter (OPM)
Visual Fault Locator (VFL)
Stable Light Source (LS)
Optical Loss Test
Event Map Analysis
Intelligent Event Detection
(Functions may vary depending on configuration.)
✔ 5.6-inch High-Resolution Color LCD
Large display with physical keypad enables easy operation in indoor and outdoor environments.
✔ Accurate Event Analysis
Automatically identifies:
Fiber Break
Connector Loss
Splice Loss
Reflective Events
End of Fiber
for quick troubleshooting.
✔ Built for Field Engineers
Compact design with protective rubber corners provides excellent resistance against impact during field operation.

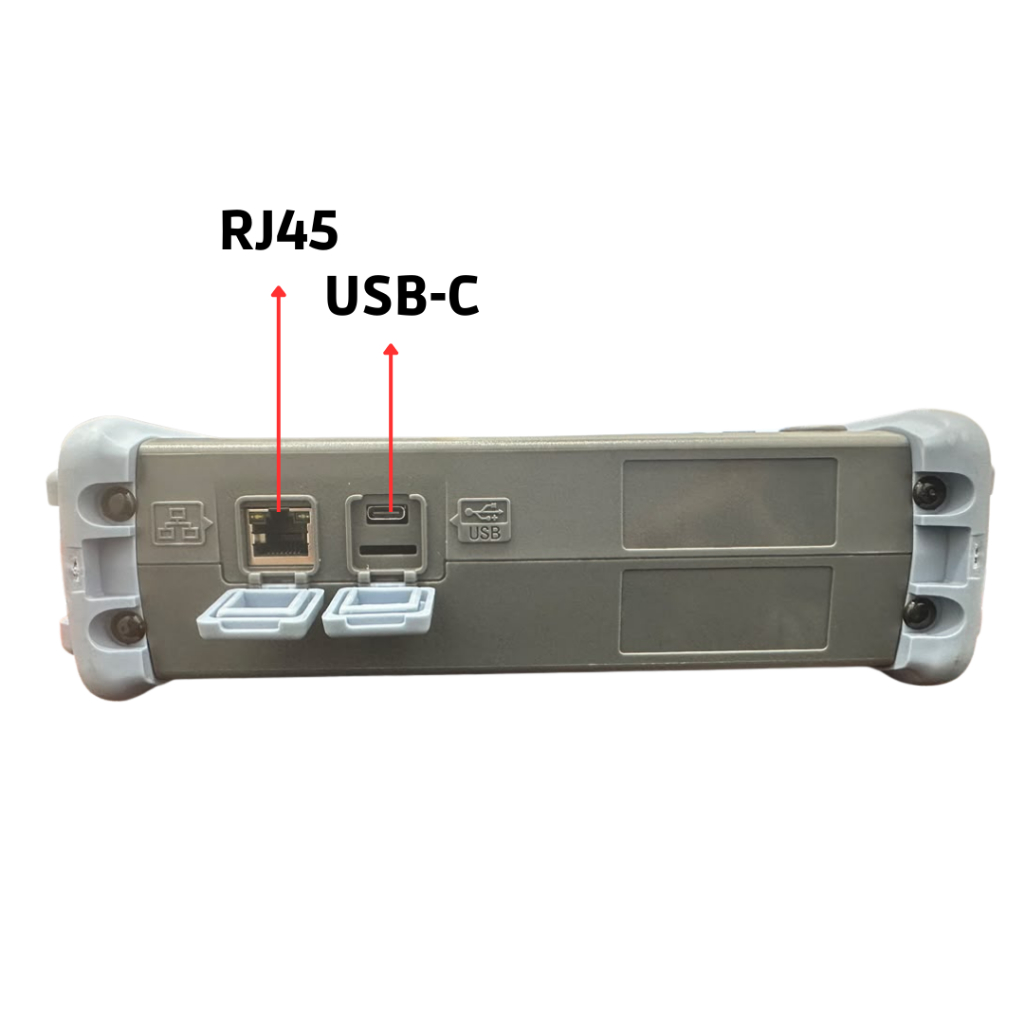

✔ USB Data Management
Supports report generation, waveform storage, software analysis, and convenient data transfer to a computer.
End-face inspection supported. Inspection microscope-NK43（not include in package)

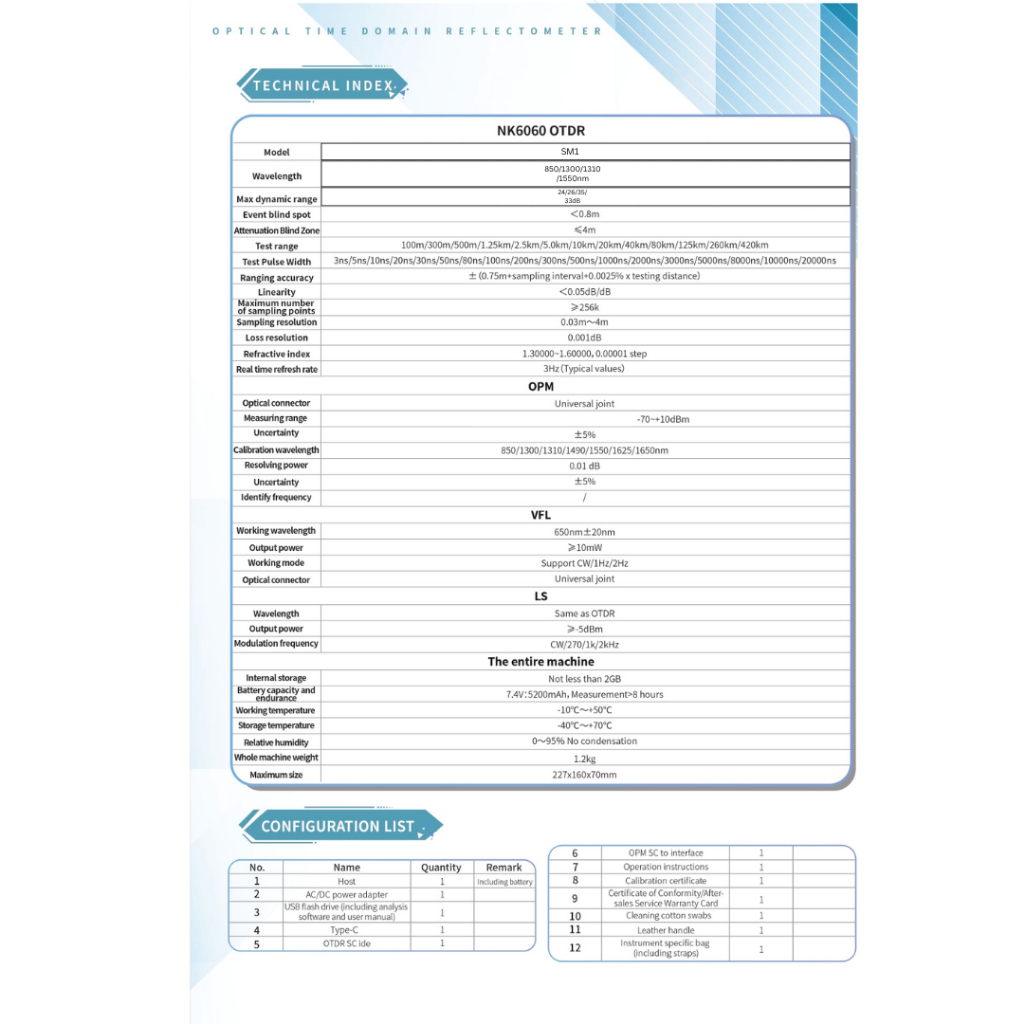

📊 Product Specifications
Product Code: OT051
Brand: NOVKER
Model: NK6060
Display: 5.6-inch Color LCD
Battery Capacity: 5200mAh
Fiber Type: Singlemode & Multimode (2-in-1)
Multimode Wavelength: 850 / 1300nm
Singlemode Wavelength: 1310 / 1550nm
Dynamic Range:
850nm – 24dB
1300nm – 26dB
1310nm – 35dB
1550nm – 33dB

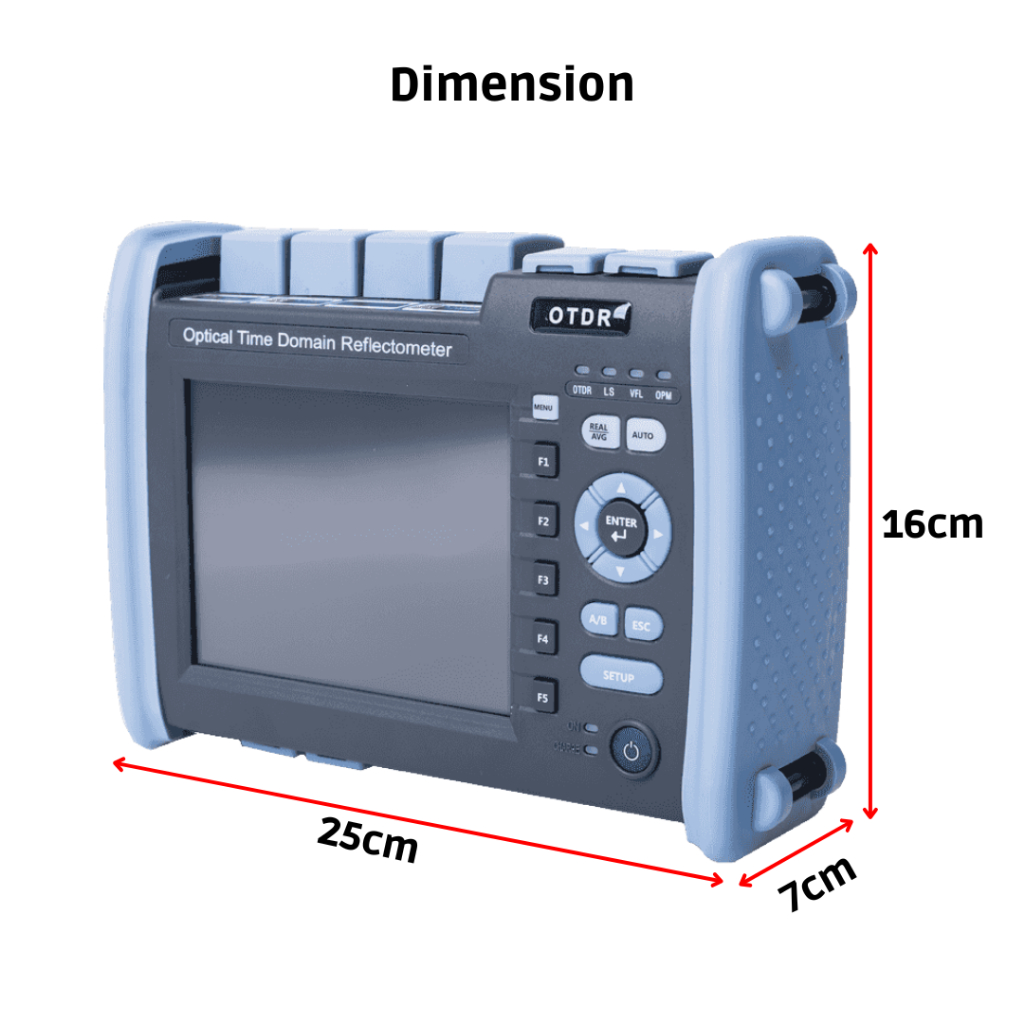

Dimensions: 25 × 16 × 7 cm
Application: Fiber Optic Installation, Testing & Maintenance

🧰 Suitable Applications
✔ FTTH Installation & Maintenance
✔ FTTx Network Deployment
✔ Data Center Fiber Testing
✔ Enterprise LAN Networks
✔ Campus Fiber Networks
✔ Telecom Backbone Networks
✔ ISP Maintenance
✔ Optical Cable Acceptance Testing
✔ Fiber Troubleshooting & Fault Location

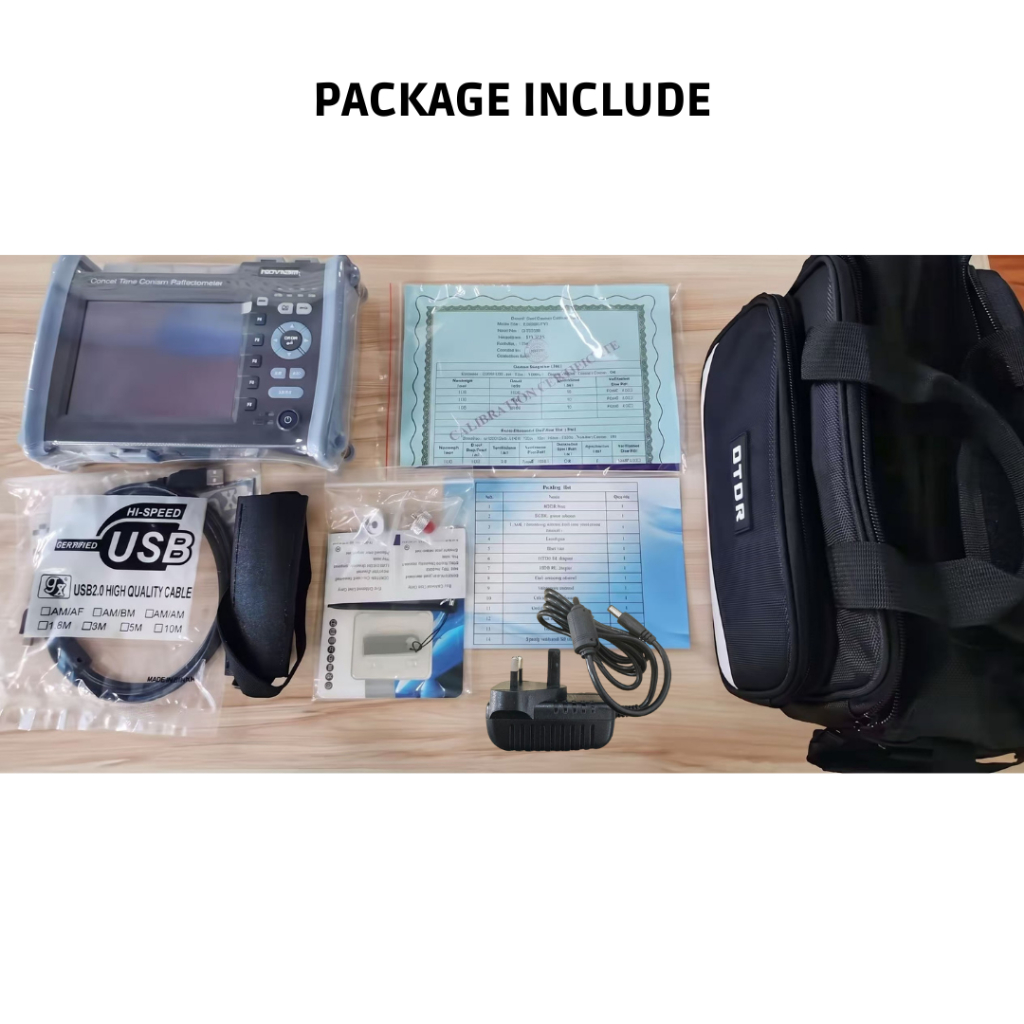

📦 Package Includes
1 × NOVKER NK6060 OTDR Host
1 × AC/DC Power Adapter
1 × USB Flash Drive (Software & User Manual)
1 × USB Type-C Cable
1 × OTDR SC Adapter
1 × OPM SC Adapter
1 × Instruction Manual
1 × Calibration Certificate
1 × Warranty Card
1 × Cleaning Cotton Swabs
1 × Carrying Strap
1 × Professional Carrying Backpack
