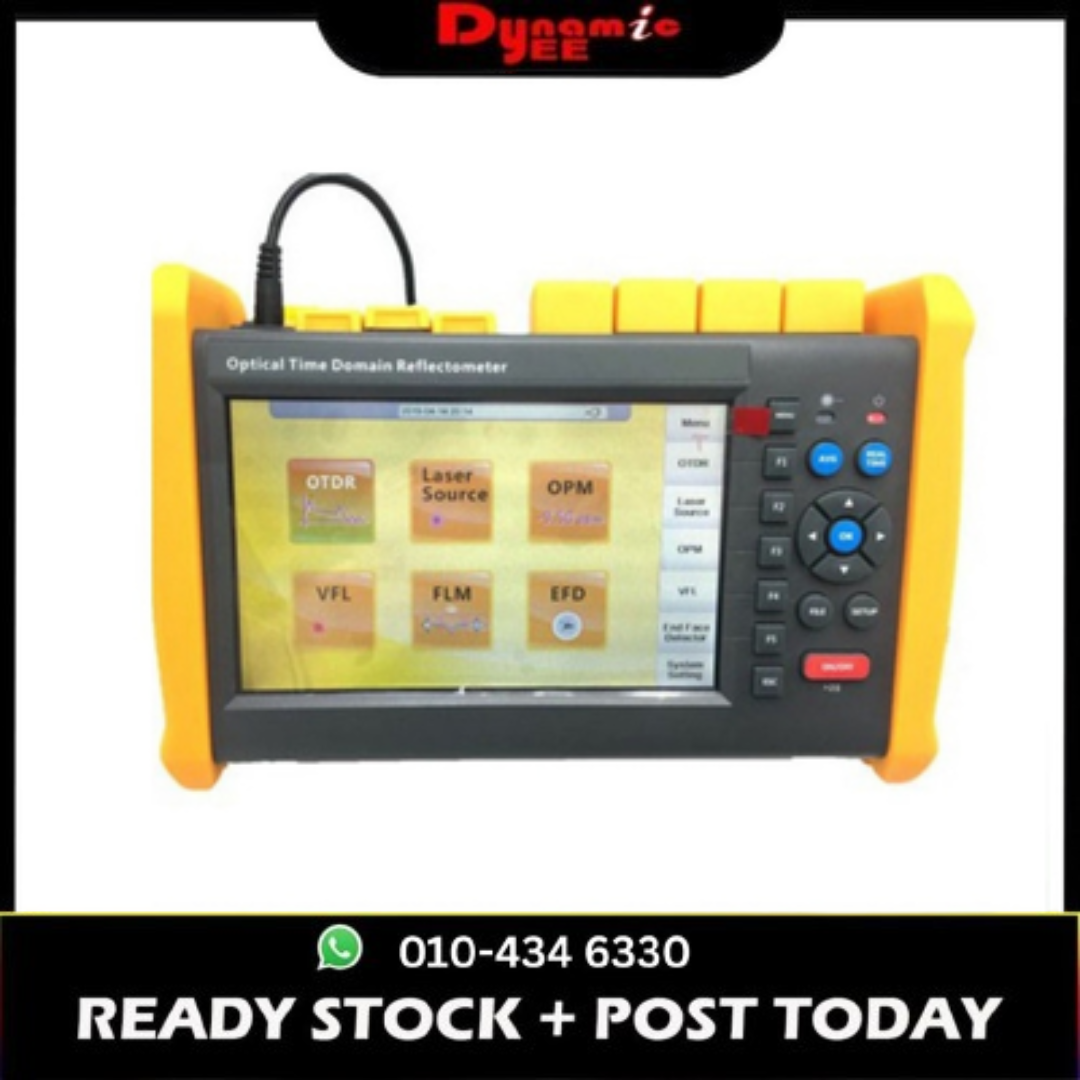

Grandway OTDR FHO 5000-T26F OTDR 1310/1550/1625nm 26/24/24dB Optical Time Domain Reflectometer OT202-OTDR FHO5000-T26F

Brand : Grand Way

OTDR FHO5000 D26 -T26F

(1310nm/1550nm/1625nm)

(26dB/24dB/24dB)

VFL=10mW

OTDR 1310/1550/1625nm

*Optical Fiber Probe (Optional) -Plug and Play

One Year Local Warranty

– Purpose of Measurement

OTDR shows the back-scatter light power of the optical signal relative to the distance. With this information, the OTDR could

measure a series of important information of an optical fiber such as the quality of the line, distance of the line and etc.

-Content of Measurement

Event position—a broken point or the end of the tested fiber.

Optical attenuation coefficient of a optical fiber.

Single event loss, such as the loss of a connection or a macro bending. Or the loss of a end-to-end line on the tested

optical fiber.

-Analyze of Curve

OTDR can auto analyze a tested trace, the position process shows below:

Get the reflection events generated by connectors or mechanical splicer.

Non-reflection events(usually it is splicing points or macro bending).

End: the first point which the loss of it is over the threshold would be scanned as the end of a trace.

Events list: event type, loss, reflection and distance.

FHO5000 OTDR Use rechargeable Li-ion battery.

Precautions= attention to the following:

– Keep OTDR dry and clean store at room temperature(15℃ ).

-Charge it monthly if you don’t use it for a long time(more than one month ).

-Keep Optical port clean by alcohol soaked cotton and recover dust cap after use.

-Clean optical port and connector at fixed period .

Display= 7inchTFT-LCD(touch screen is optional)

Working temperature= -10~+50°C

Storage temperature= -20~+75°C

Humidity= <95%

size=253X168X73.6mm

Weight=1.5kg(with battery)

Battery=7.4V/4.4Ah lithium battery

Battery working temperature=-10~+50°C

Battery storage temperature=-20~+70°C

Working hours=6hours(Condition: Full power,70% brightness, realtime mode)

Battery life time=>500times

Power=DC9~12V 4A

Charging time=4-5hours

Shock resistance=Bear 1.2m free fall

Optical Time Domain Reflectometer

OTDR FHO5000-T26F

OTDR 1310/1550/1625nm 26/24/24dB

Optical Fiber Probe (Optional) -Plug and Play

One Year Local Warranty
