Grandway Light Source FHS1D02 1310nm / 1550nm OL301

Rated 4.55 out of 5 based on 11 customer ratings
(11 customer reviews)

RM225.00

Availability: 28 in stock

- +
SKU: OL301-GRANDWAY-FHS1D02 Category:

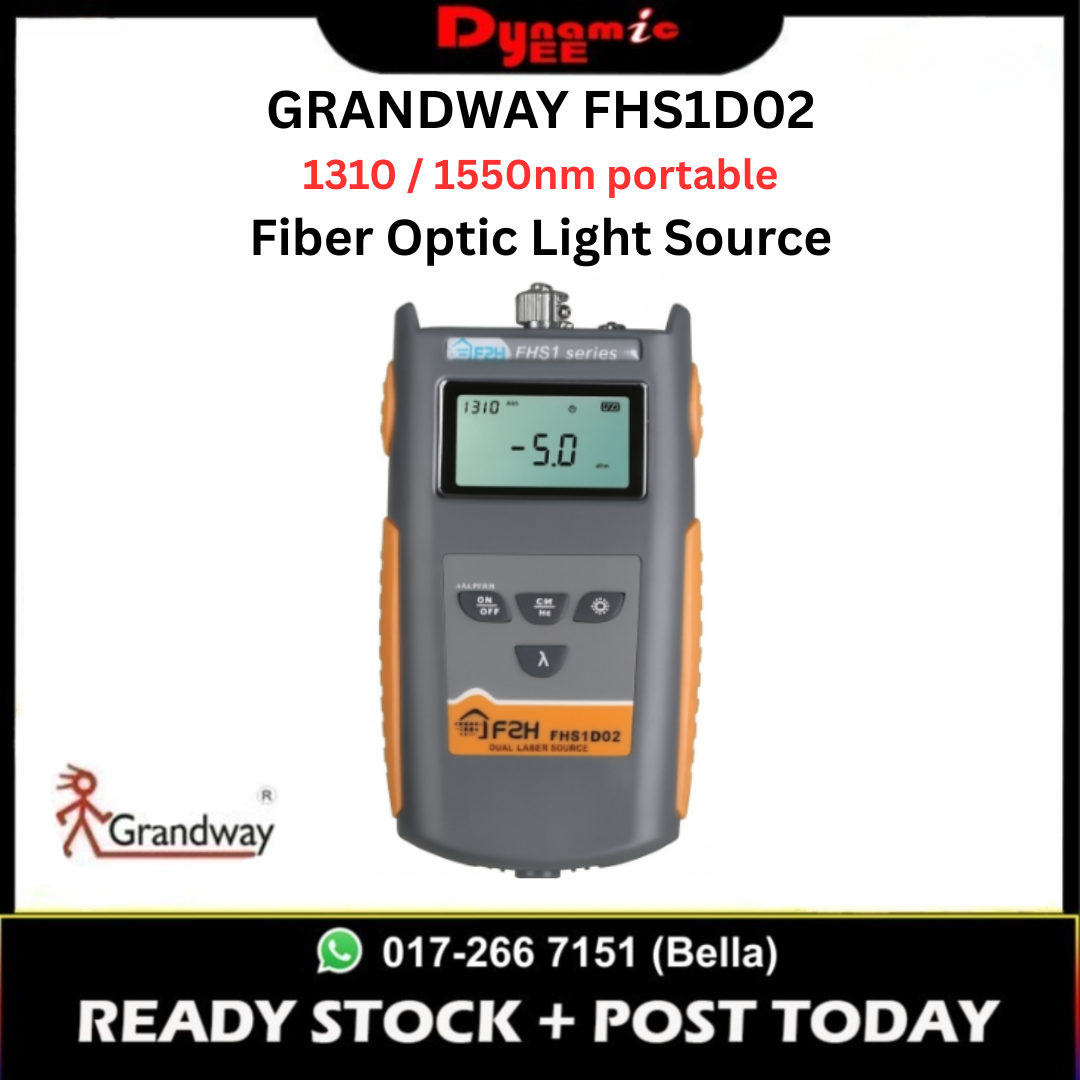

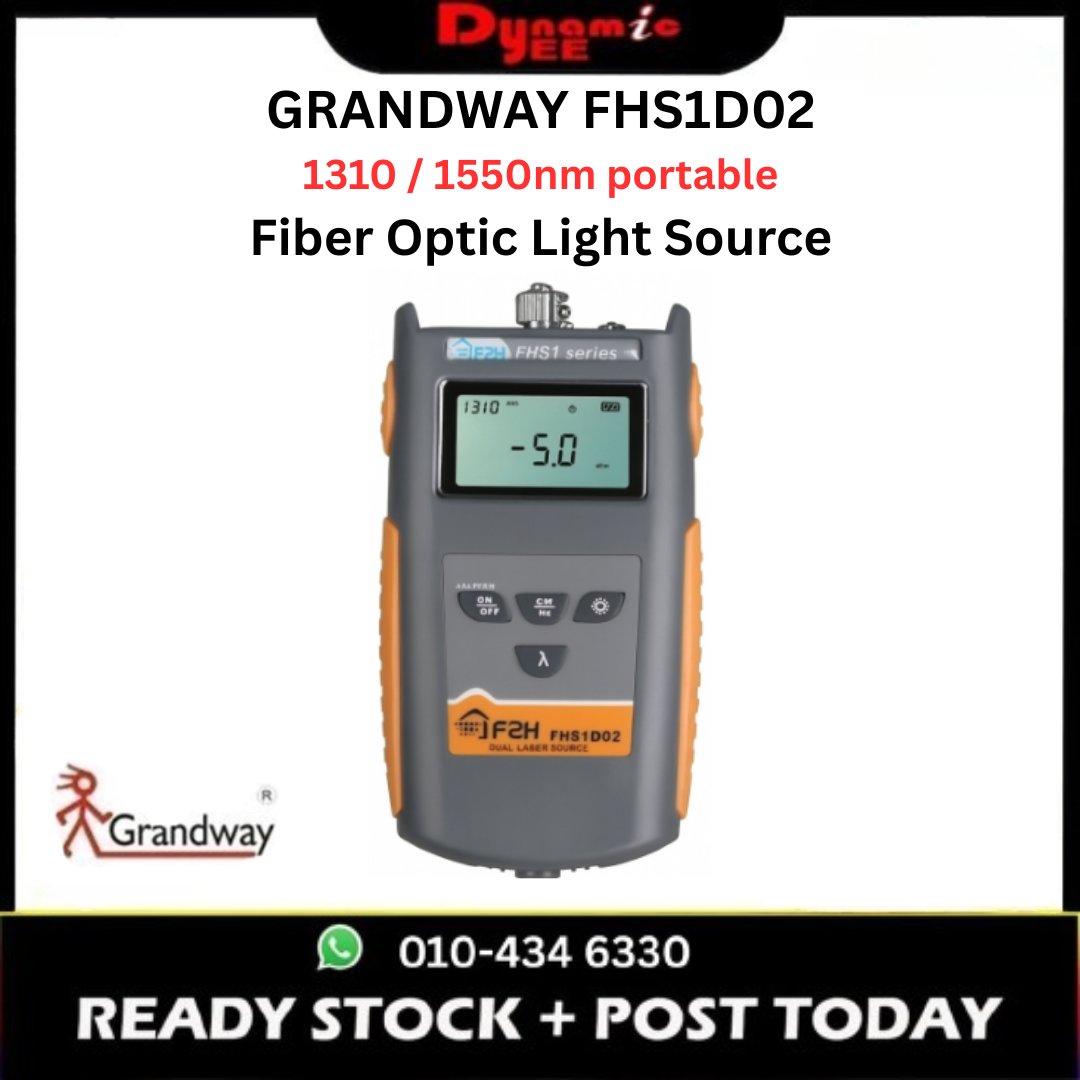

Grandway FHS1D02 1310 / 1550nm portable fiber optic light source
Description:
FHS1 series optical laser source provides excellent stability and portability to accurately test optical fibers.
The single port output provides stable laser power at two wavelengths. The compact device operates in continuous wave (CW) or modulated mode. Low battery indicator reminds user to replace battery.

Characteristics:

– Both single-mode and multi-mode lasers are available
– Single output interface
– Rugged and portable
– Automatic switch-off function
– Integrated with continuous wave output function, 270Hz, 1kHz and 2kHz are available

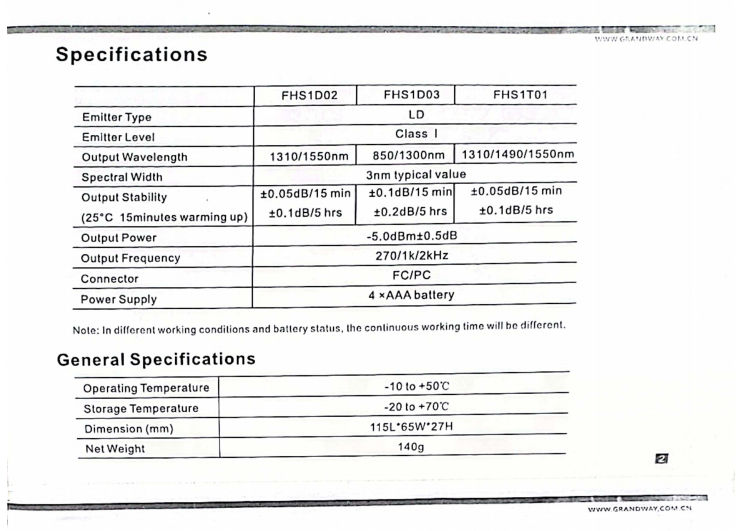

Specification:

Type : FHS-1D02
Output wavelength : 1310nm & 1550nm
Transmitter type : LD
Connector : FC/PC
Initial stability : Short term (15 minutes): <0.1 db
Long term (5 hours or more): <0.2 db
Central wavelength : 1310 ± 20nm i 1550 ± 20nm
Spectral width : 5nm
The output frequency : 270Hz, 1KHz, 2KHz
Output power : -5dBm
Automatic power off : So
Backlight : So
Working temperature : -10 to +50 degrees
Storage temperature : -20 to +70 degrees
Battery : AAA * 2pcs
Dimension : 115mmL*65mmW*30mmH
Weight : 140g

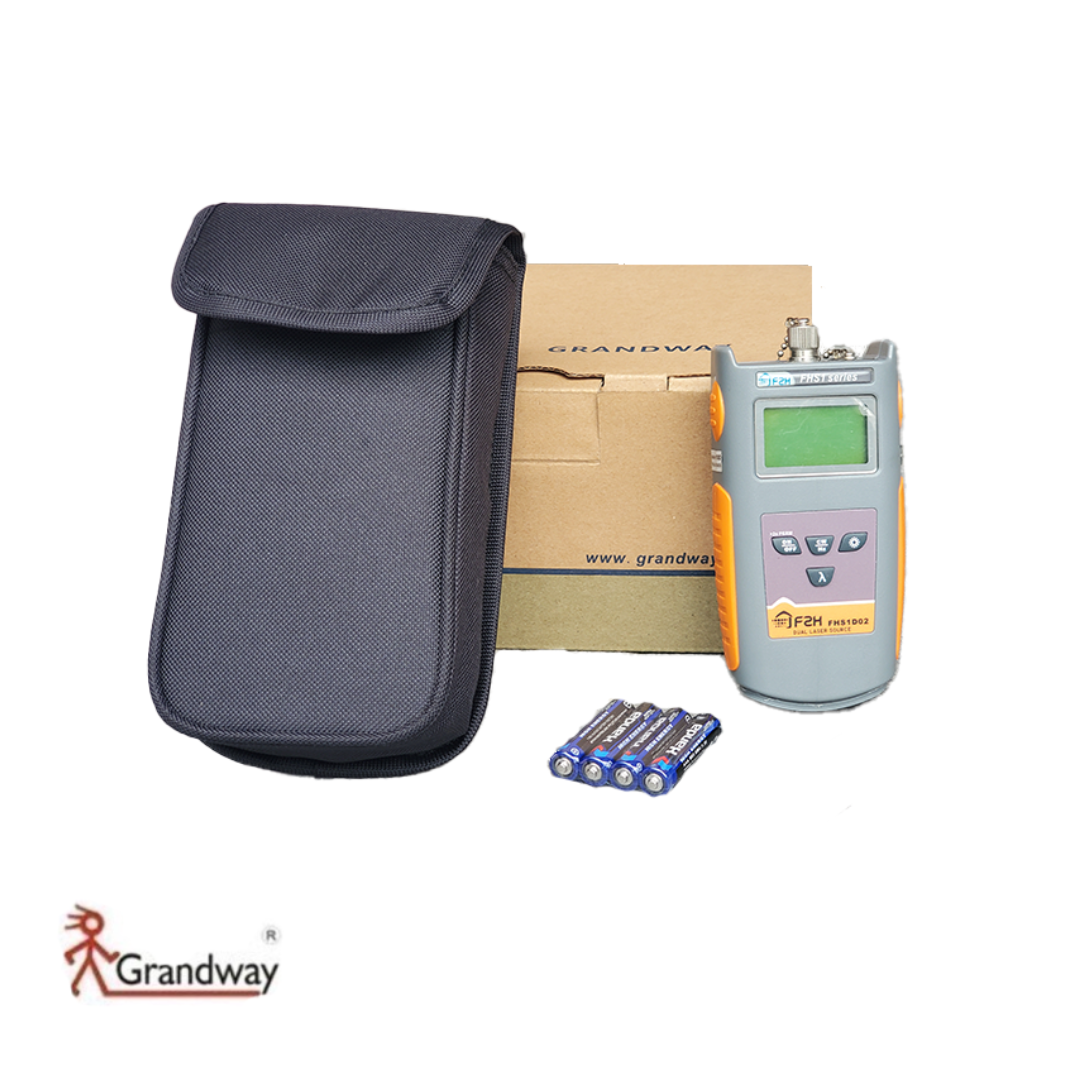

Standard equipment : FC / PC adapter, no battery, carrying bag, user manual, test report
Optional accessories : Male FC to Female LC to LC Connector (Model: HD078)

Adjustment:
SC / ST adapter, APC laser gun

Weight 0.80 kg
