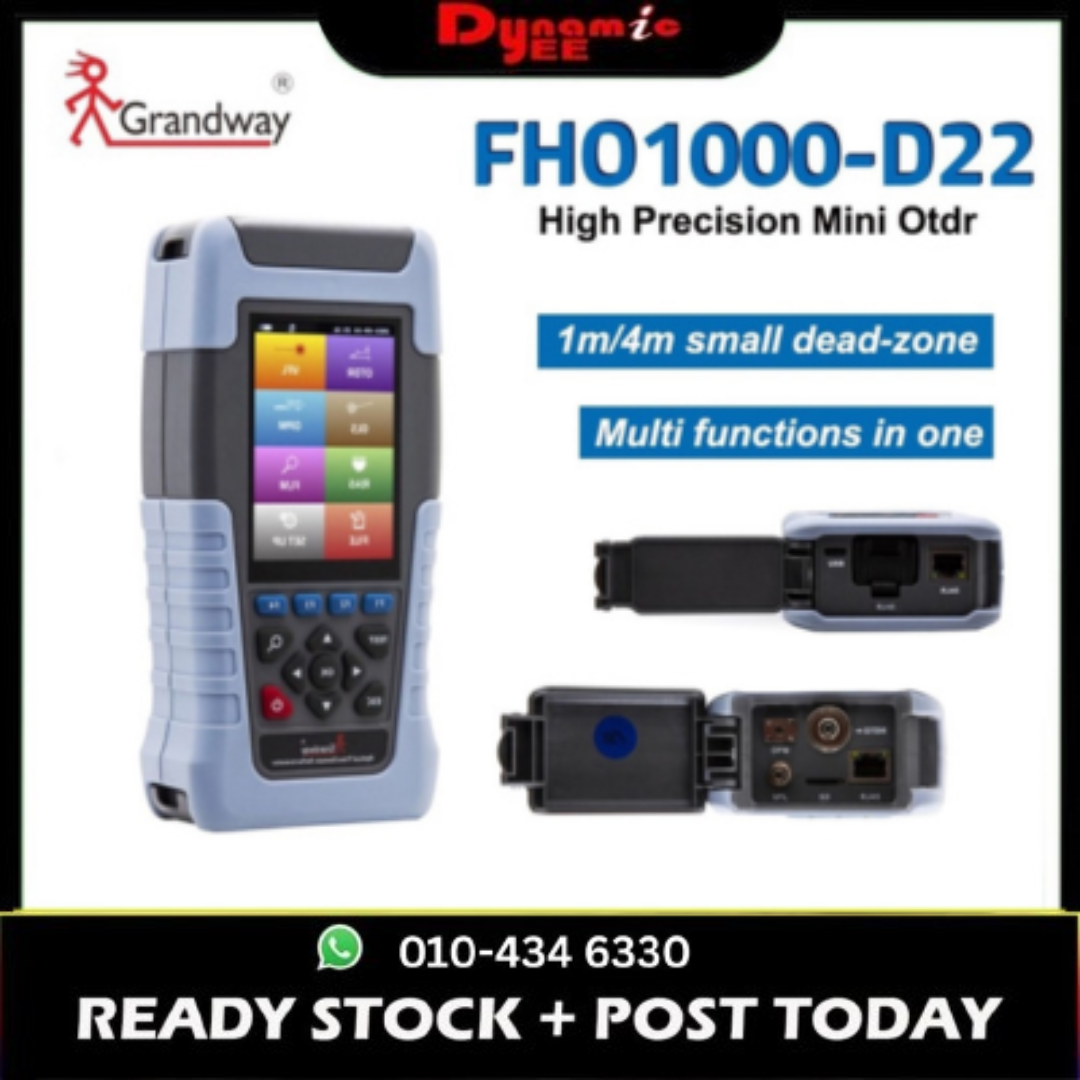

Model: FHO1000
Brand: Grandway
Functions
FHO1000 Handheld OTDR is the latest smart OTDR of Grandway. Although it is a handheld OTDR, it can measure the length of optical fiber over 100km. In short distance optical fiber testing, with the excellent 1m/4m deadzone performance, all kinds of continuous connectors, attenuation loss and other events can be clearly distinguished.
Features :
– 3.5 inch color LCD, portable design and easy to carry.
– Multi function integration, support 10mw VFL, stable laser source, optical power meter, RJ45 line sequence test and other functions.
– High precision, short deadzone OTDR can accurately test all kinds of continuous connectors and attenuation points in the line.
– Dynamic Range: 28dB. Support over 100km optical fiber measurement.
– Real Time Testing & High-Accuracy Testing: Quickly detects fiber breaks, losses, splices, and connection points
– Bluetooth connection of mobile phone supports fast transmission of test files to mobile phone.
– Mobile phone remote control, control OTDR test and curve view analysis through the mobile phone.
8 Highlights
High-precision
1m/4m small dead-zone
2m patchcord can be accurately tested
Fiber Link Map(FLM)
Display optical fiber events with intuitive icons
Fast response
Real time mode, fast test response
Compact and portable
192.9Lx93.8Wx47H(mm)/570g
5000mAh
Standby time>15HWorking time>8H
8G pluggable memory card
More than 80,000 test curves can be stored
Multi functions in one
10mw VFL/Stable OLS/OPM/RJ45 cable test
Anti falling and anti-seismic
Shockproof silica gel, sturdy and durable
This OTDR Comes with a Calibration Certificate
This OTDR is able to print the report. OTDR report can only be printed out by using OT analyse & print software. This software can only run in PC or laptop, mobile device (smartphone) are not suitable (as for now). The format for the result is in .SOR
Warranty Information:
1 Year Local Warranty (Warranty starts on the date of the Delivery Order [DO] or Invoice, which ever applicable)
