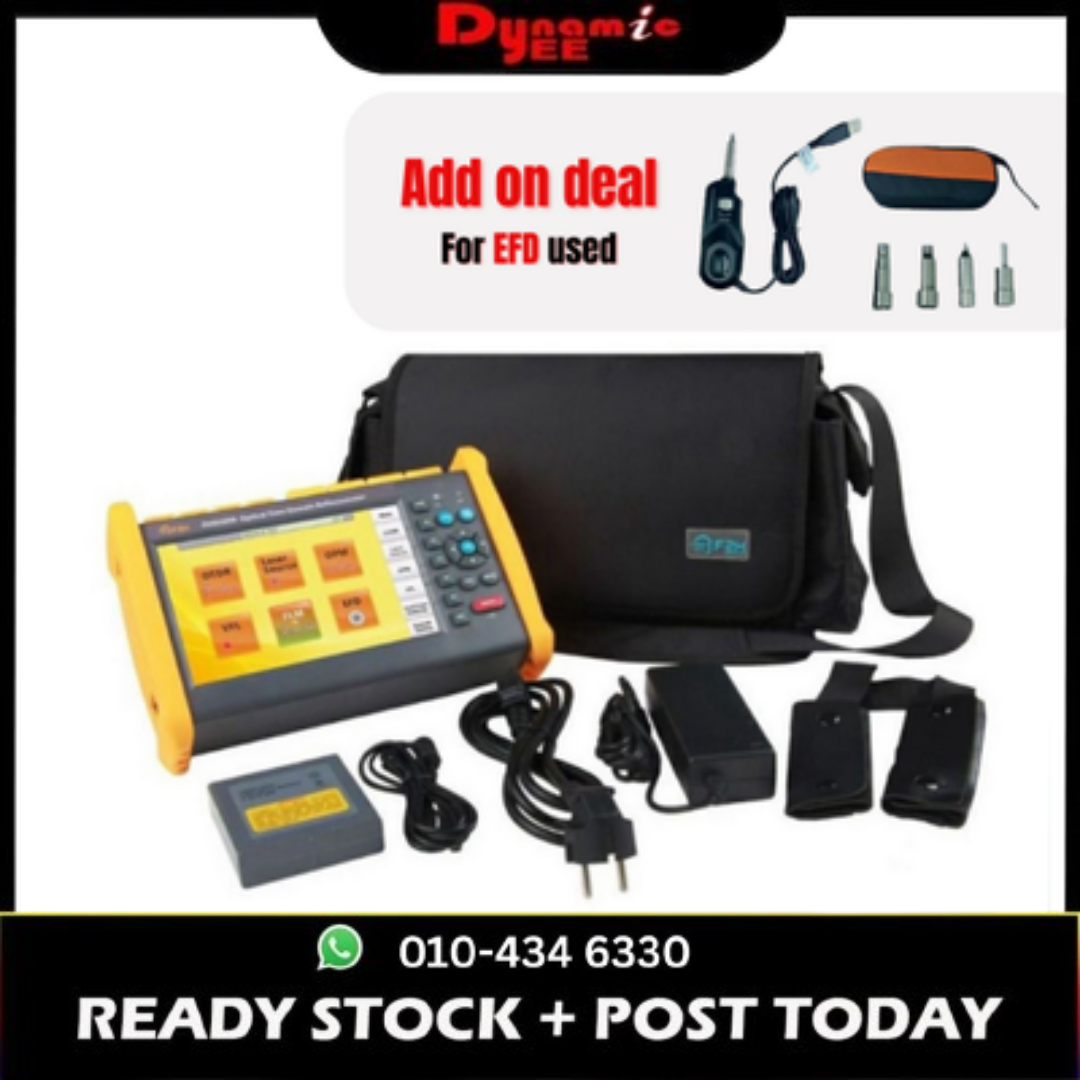

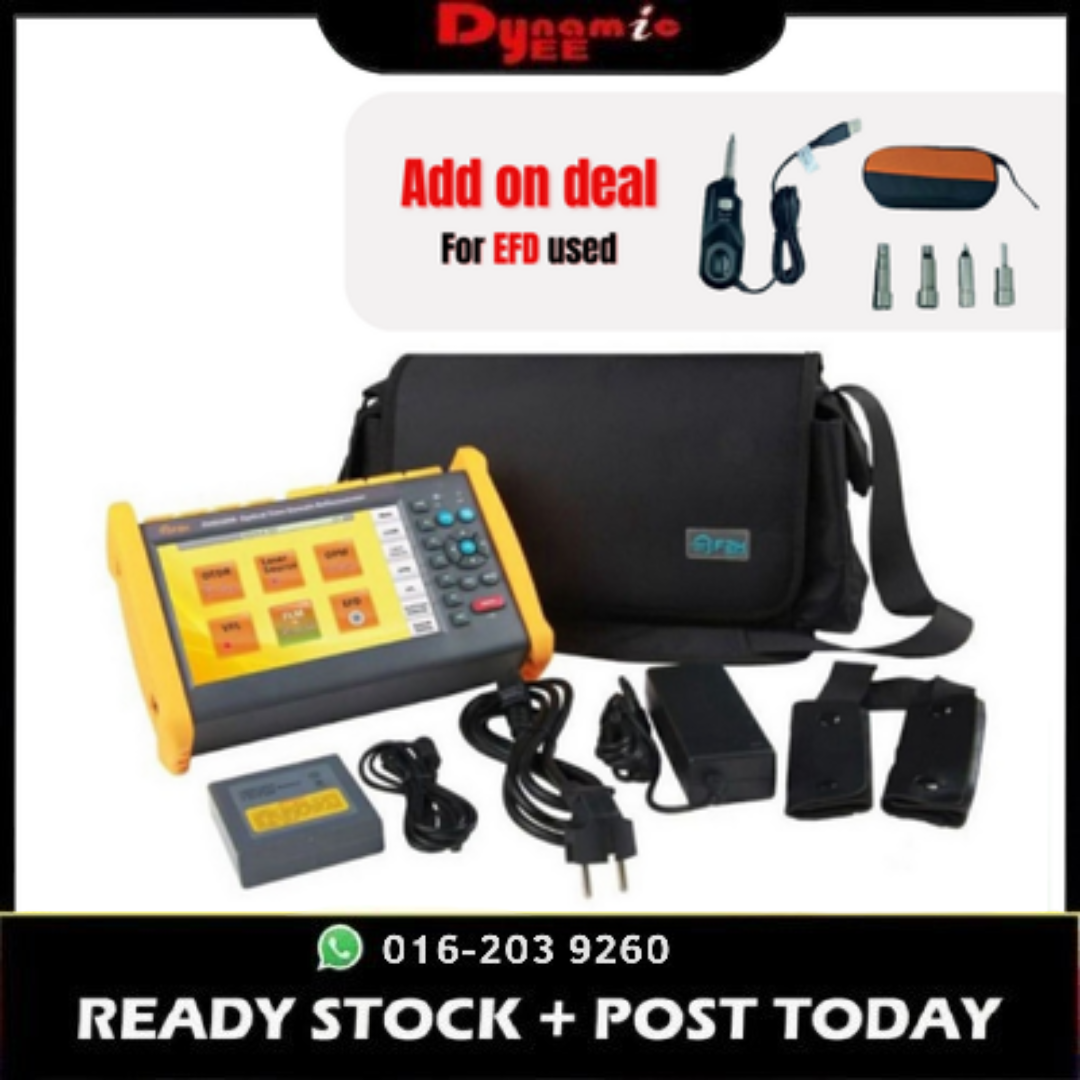

GrandWay FHO5000 D26 OTDR 1310nm/1550nm Optical Time Domain Reflectometer OT201 OFP101

(162 customer reviews)

RM1,900.00 – RM5,200.00

SKU: OT201 Category:

FHO5000 D26 optical time domain reflectometer (1310nm/1550nm)
VFL=10mW

One year local warranty

– Purpose of Measurement
OTDR shows the back-scatter light power of the optical signal relative to the distance. With this information, the OTDR could
measure a series of important information of an optical fiber such as the quality of the line, distance of the line and etc.

-Content of Measurement
Event position—a broken point or the end of the tested fiber.
Optical attenuation coefficient of a optical fiber.
Single event loss, such as the loss of a connection or a macro bending. Or the loss of a end-to-end line on the tested
optical fiber.

-Analyze of Curve
OTDR can auto analyze a tested trace, the position process shows below:
Get the reflection events generated by connectors or mechanical splicer.
Non-reflection events(usually it is splicing points or macro bending).
End: the first point which the loss of it is over the threshold would be scanned as the end of a trace.
Events list: event type, loss, reflection and distance.

FHO5000 OTDR Use rechargeable Li-ion battery.

Precautions= attention to the following:
– Keep OTDR dry and clean store at room temperature(15℃ ).
-Charge it monthly if you don’t use it for a long time(more than one month ).
-Keep Optical port clean by alcohol soaked cotton and recover dust cap after use.
-Clean optical port and connector at fixed period .

Display= 7inchTFT-LCD(touch screen is optional)
Working temperature= -10~+50°C
Storage temperature= -20~+75°C
Humidity= 500times
Power=DC9~12V 4A
Charging time=4-5hours

Shock resistance=Bear 1.2m free fall

====================

 FIM-18

====================

The FIM-18 Hand held Fiber Probe is a portable, video microscope used to inspect fiber optic terminations. More specifically, it is used to inspect hard-to-reach connectors that are installed on the “backside” of patch panels or inside hardware devices. It eliminates the need to access the backside of patch panels or disassemble hardware device prior to inspection.

Resolution Ratio : 1.0um

Output : USB Signal

Weight : 1KG

Work/Storage : -20°C~+50°C / -30°C~+60°C

25-U-M (2.5mm UPC Male) : FC/SC/ST/E2000 patch cord UPC termination

125-U-M (1.25mm UPC Male) : LC/MU patch cord UPC termination

25-A-M (2.5mm APC Male) : FC/SC/ST/E2000 patch cord APC termination

125-A-M (1.25mm APC Male) : LC/MU patch cord APC termination

25-U-F (2.5mm UPC) : FC/SC/ST/E2000 UPC bulkhead

LC-U-F (LC UPC Female) : LC UPC bulkhead

SC-A-F (SC APC Female) : SC APC bulkhead

FC-A-F (FC APC Female) : FC APC bulkhead

LC-A-F (LC APC Female) : LC APC bulkhead

Package list :

Probe x1

Bag x1

Structure/Part : 25-U-M | 125-U-M | FC/SC-U-F | LC-U-F-01

Weight 3.00 kg
Dimensions N/A
GrandWay

FHO5000 D26, FHO5000 D35, Inspection Probe
