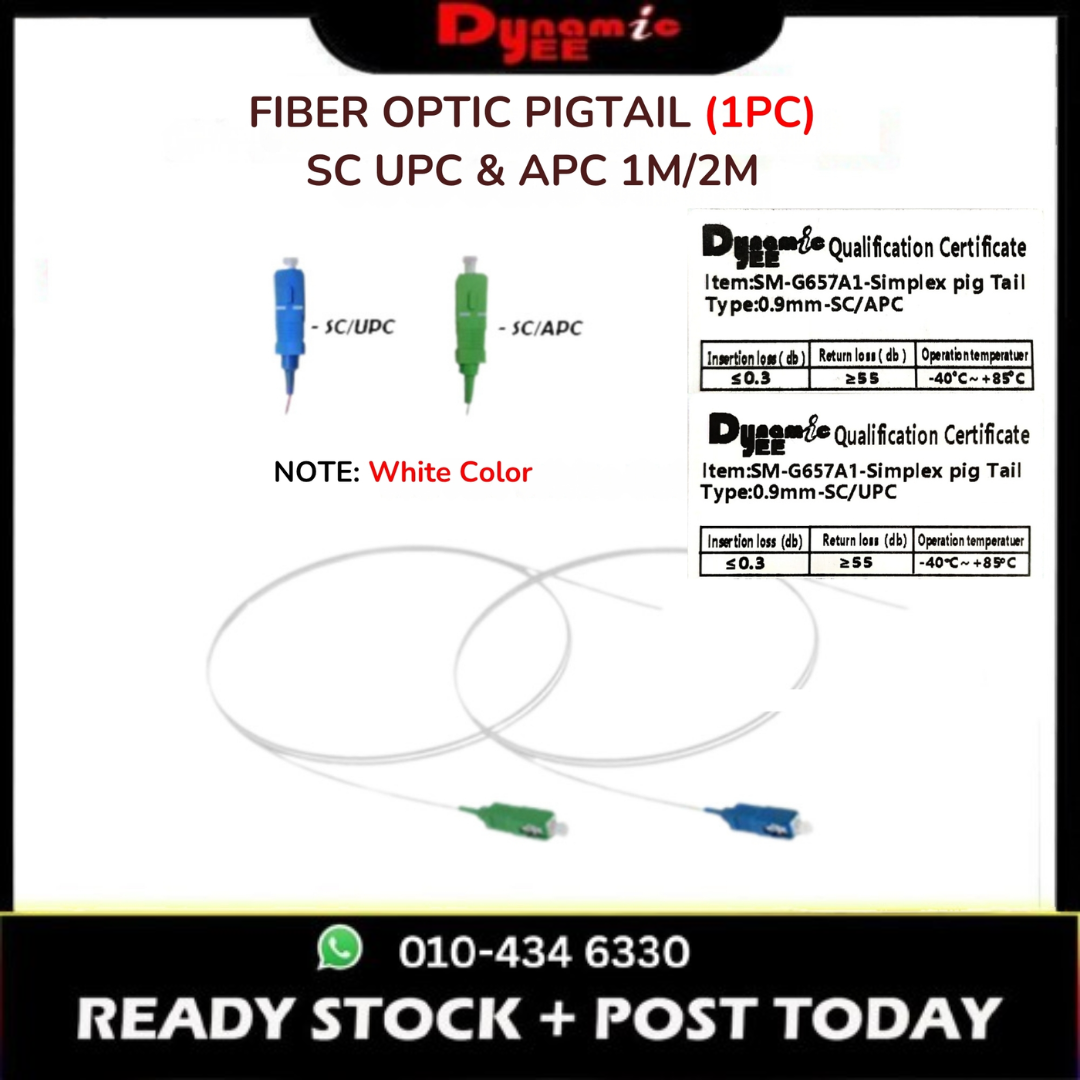

Fiber Optic Pigtail 0.9mm SC/UPC & SC/APC (1 meter, 2 meter) PT101

Rated 4.55 out of 5 based on 49 customer ratings
49 reviews

Price range: RM1.20 through RM1.50

- +
SKU: PT101 Category:

Features:

•    Suitable for applications in Telecommunications, TM Unifi, Maxis Fiber, Time Fiber, LAN, FTTH, Optic fiber sensors, Testing instruments and etc.

•    Low insert loss & • High return loss

•    Perfect interchangeability & High Speed

•    Singlemode Fiber Optic  Splice Shrinkable Pigtail c/w SCUPC Premium Quality Connector

•    Connector Type : SC/UPC (Blue Colour), SC/APC (Green Colour)

•    Fiber Type : 9/125um Singlemode G652D Grade1

•    Cable Type & Size : Simplex , 0.9mm

•    Colour : White

•    Length :1meter & 2meter

•    Compliance  : RoHS, Telco Passed, 100% tested for Insertion loss and return loss.

•    Each pigtail is packaged individually and individually identified for traceability, a test certificate is supplied for each assembly

Insertion loss ≤ 0.3db

Return loss ≥ 55db

 Operating temperature: -40°C ~ +85°C
