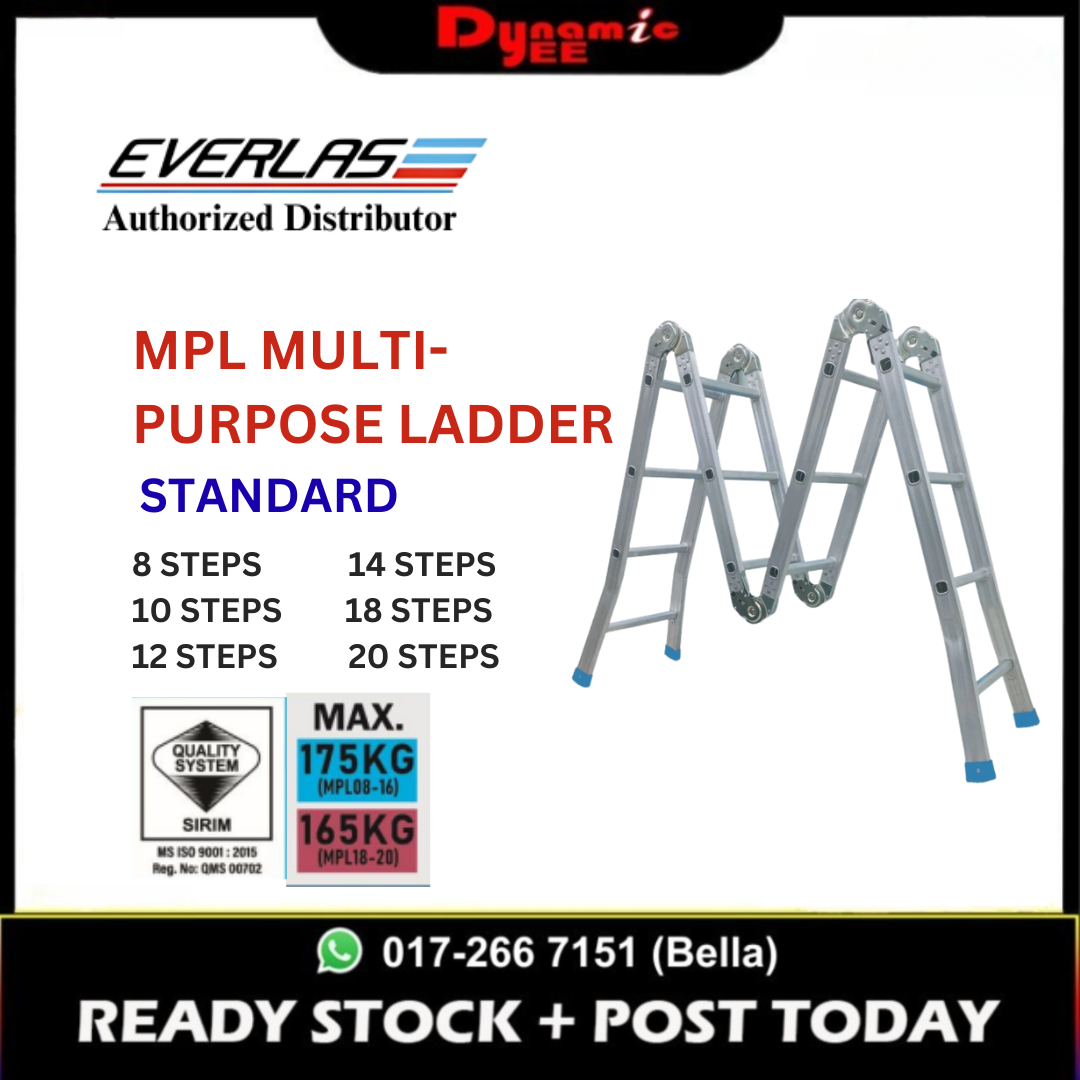

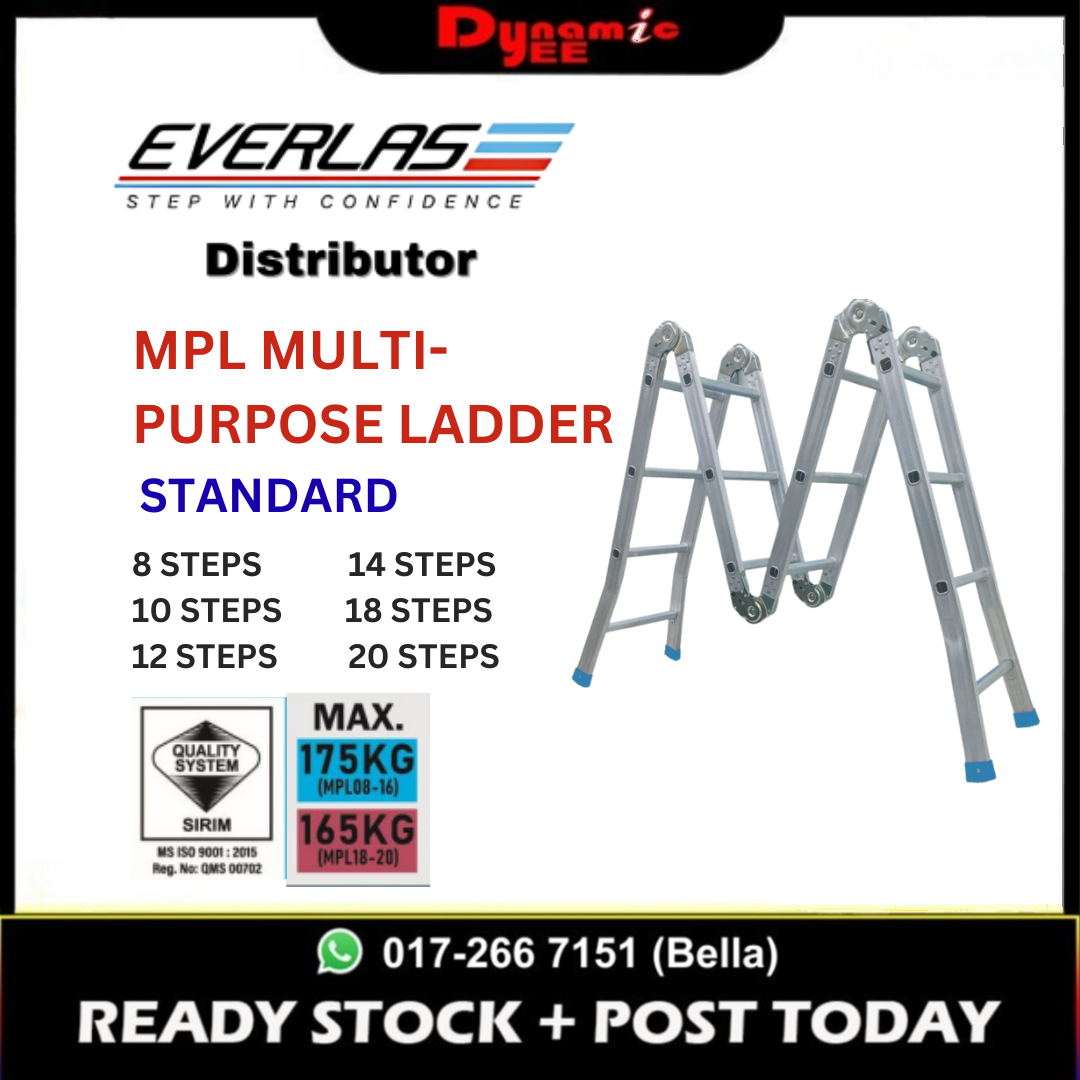

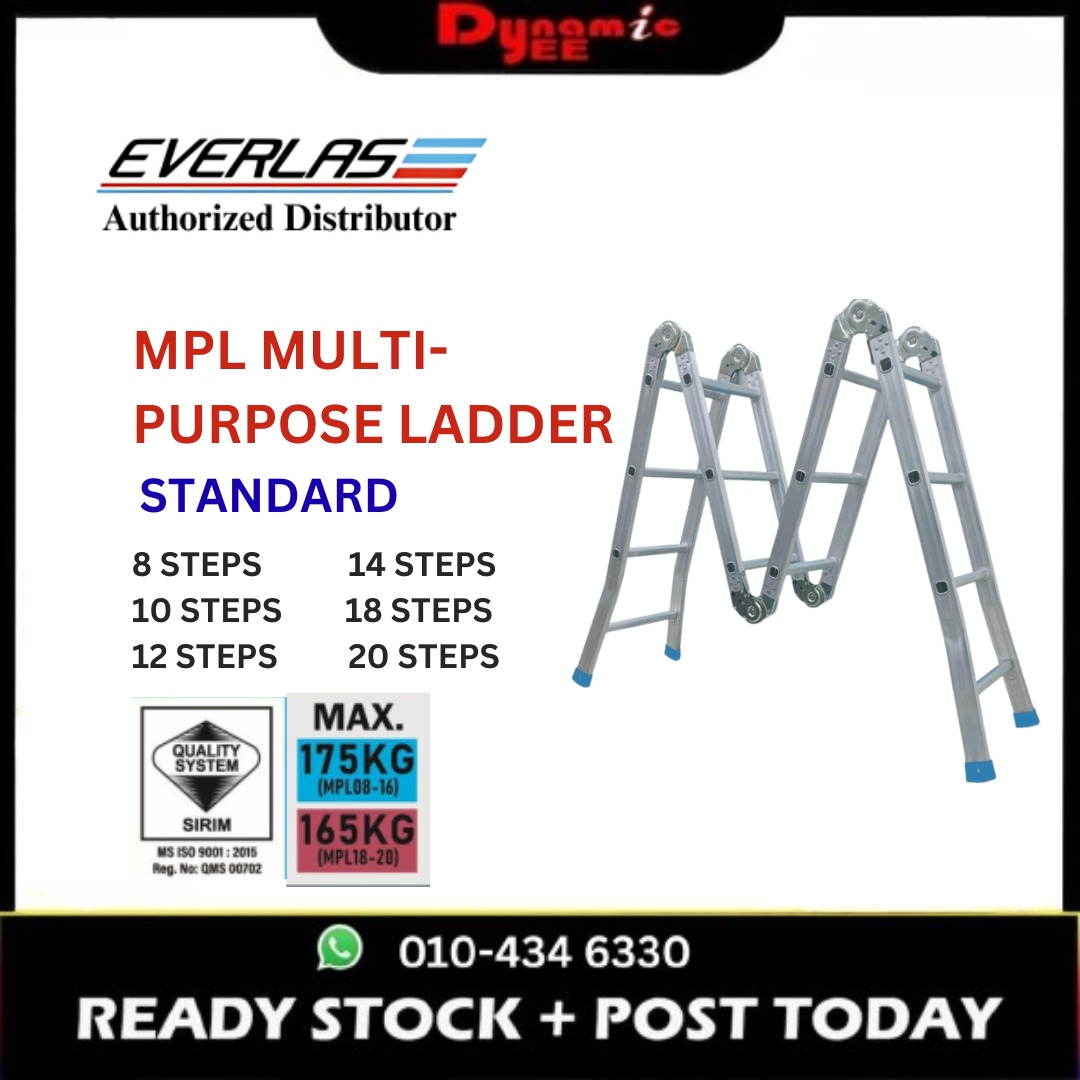

EVERLAS MPL Multi-Purpose Ladder

MPL08 | MPL10 | MPL12 | MPL14 | MPL16 | MPL18 | MPL20
EN131 | Heavy Duty | Made in Malaysia

A tough and flexible ladder built for contractors, telecom installers, warehouse operations, maintenance teams and renovation work.

Switch configurations in seconds — A-frame, straight extension, platform mode, stair mode and more.

---

Key Features

✔ Multi-configuration design
✔ Fast-locking safety hinges
✔ Industrial-grade aluminium box-section stiles
✔ Anti-slip rungs
✔ Wide foot caps for stability
✔ Compact fold for easy storage
✔ Made in Malaysia
✔ EN131 compliant (selected models)
✔ Load rating up to 165–175kg (refer to ladder label)
✔ Certificate of Compliance from EVERLAST ALUMINIUM (M) SDN. BHD.

---

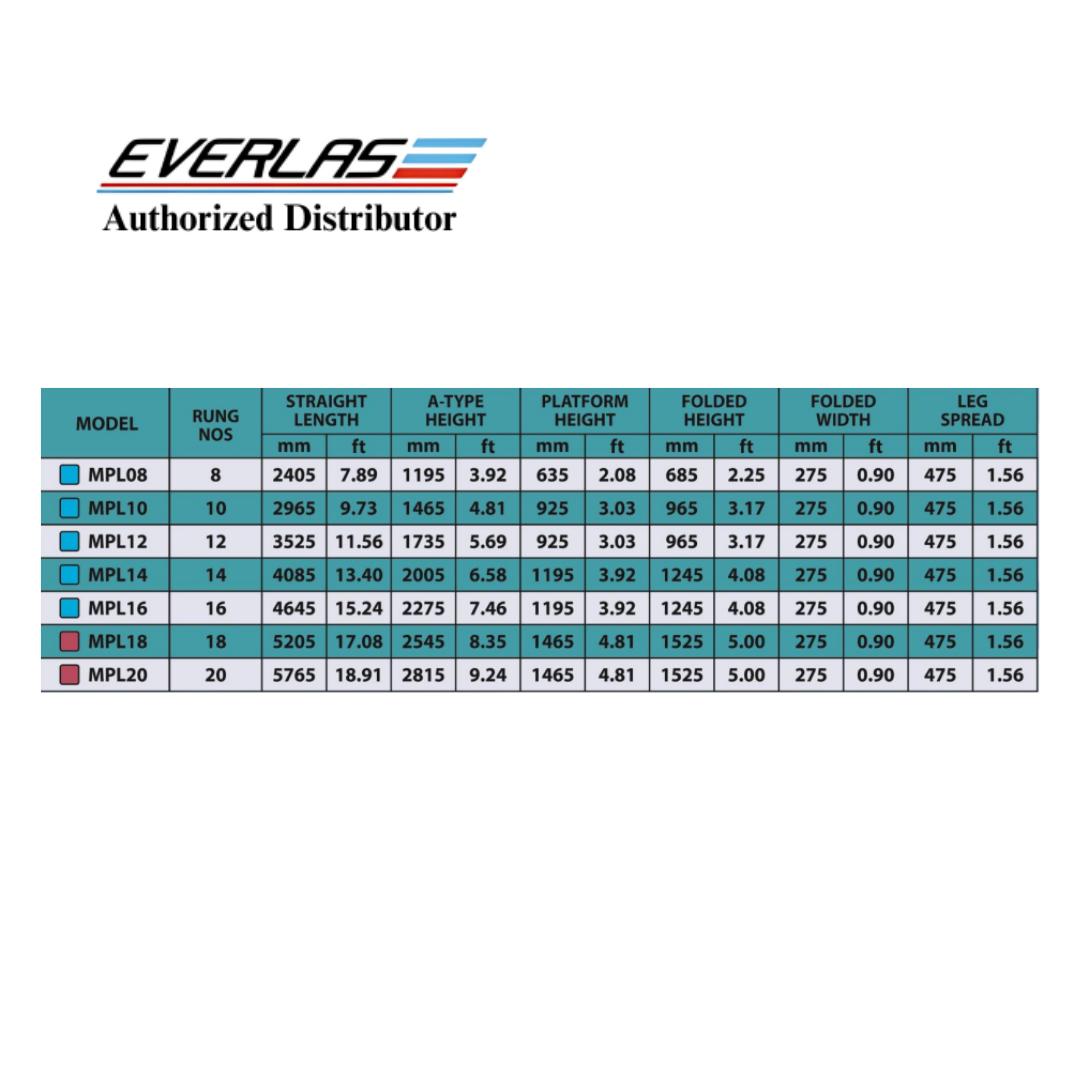

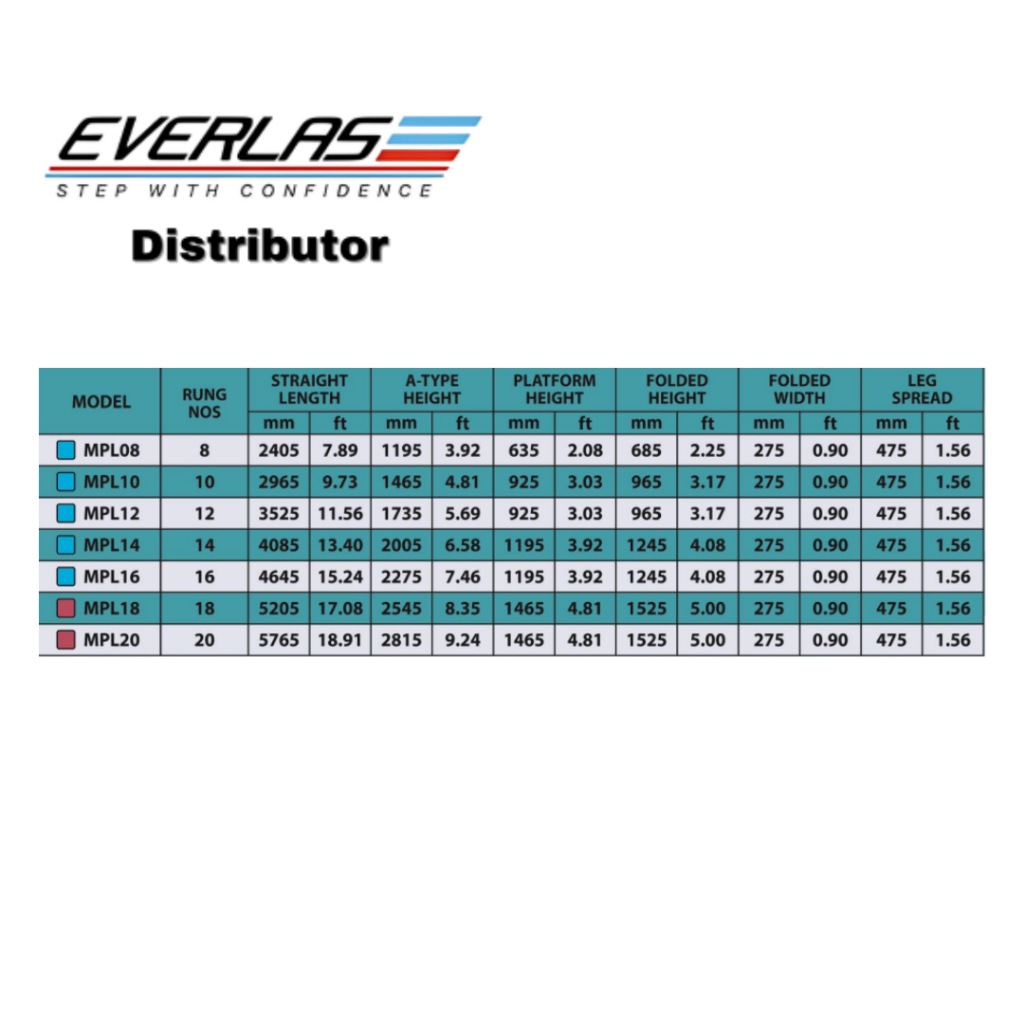

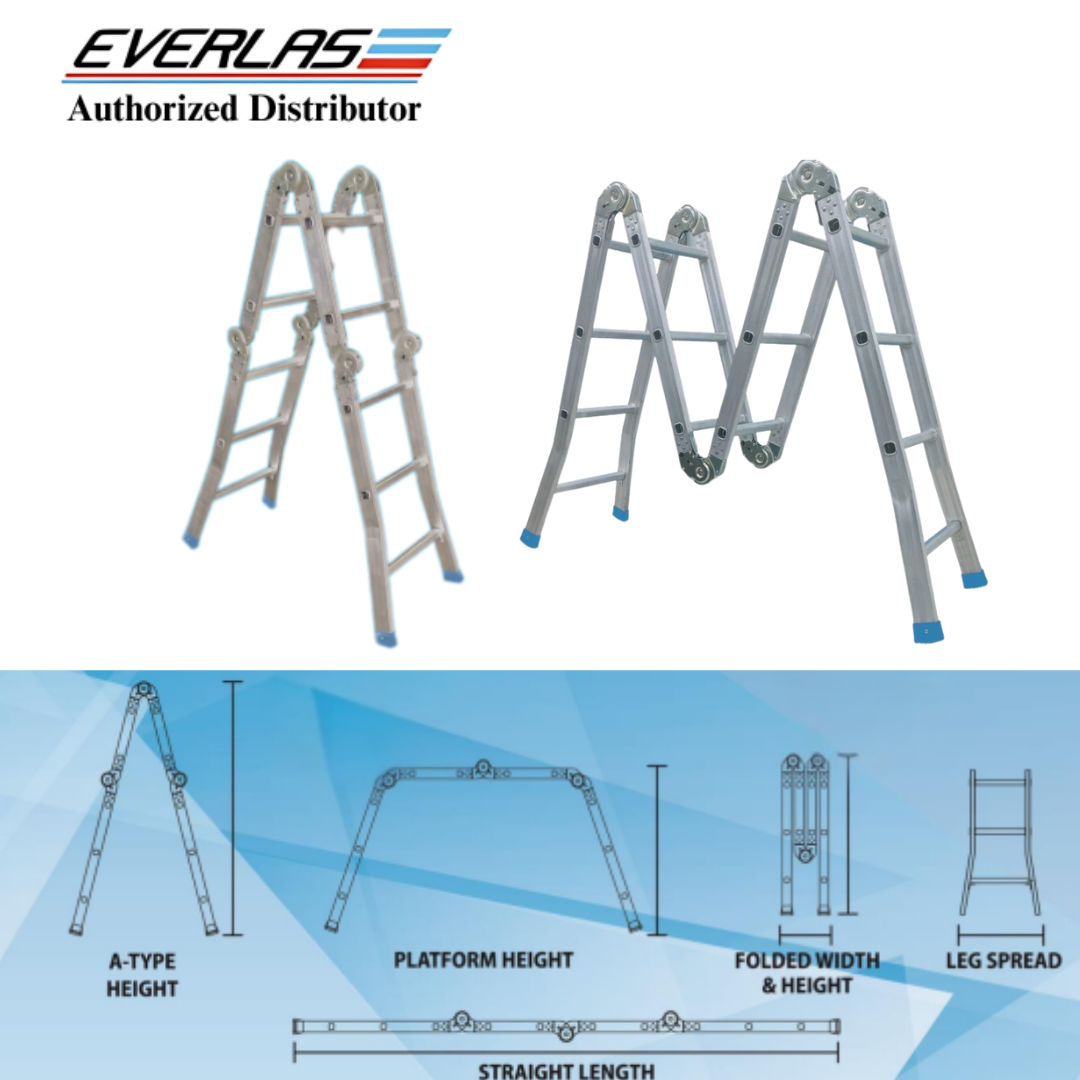

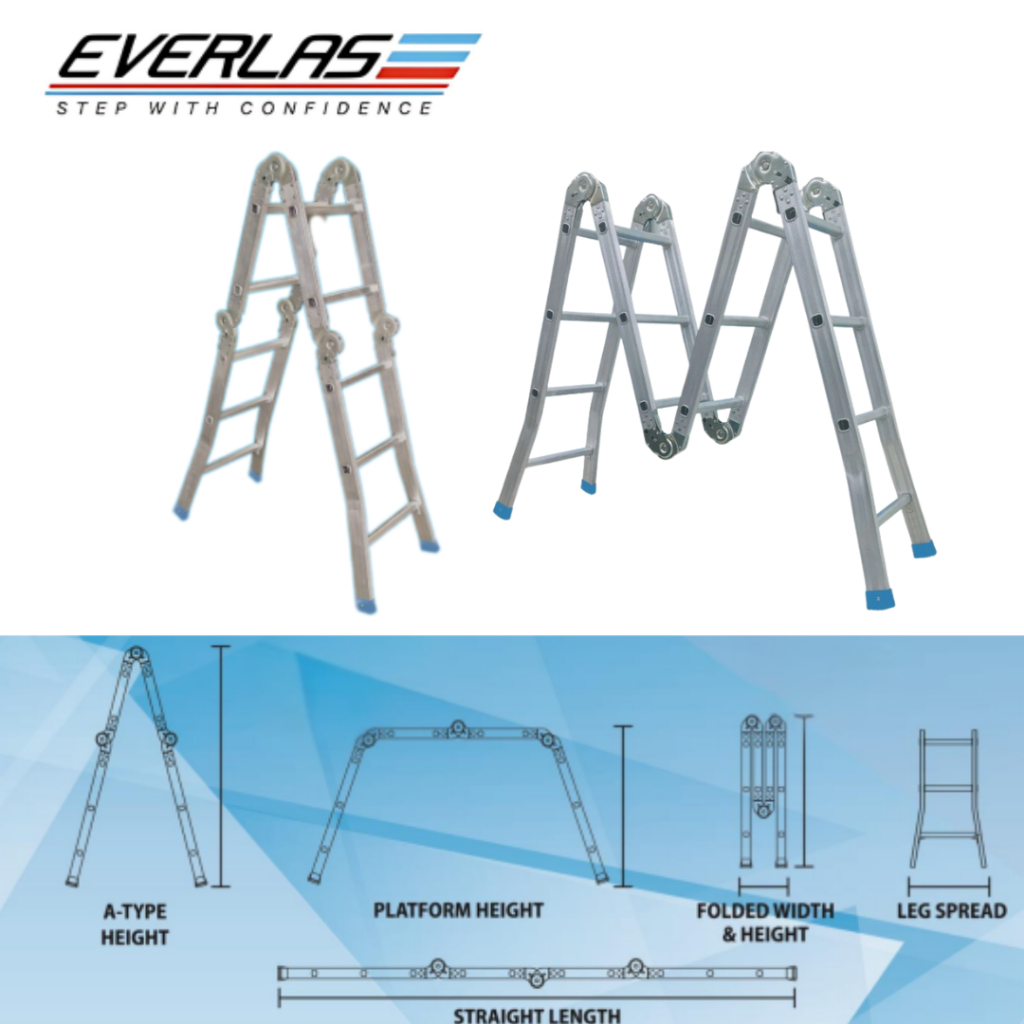

OFFICIAL SIZE SPECIFICATIONS

🔹 MPL08 (8 Rungs)

• Straight Length: 2405mm (7.89ft)
• A-Type Height: 1195mm (3.92ft)
• Platform Height: 635mm (2.08ft)
• Folded Height: 685mm (2.25ft)
• Folded Width: 275mm (0.90ft)
• Leg Spread: 475mm (1.56ft)

---

🔹 MPL10 (10 Rungs)

• Straight Length: 2965mm (9.73ft)
• A-Type Height: 1465mm (4.81ft)
• Platform Height: 925mm (3.03ft)
• Folded Height: 965mm (3.17ft)
• Folded Width: 275mm (0.90ft)
• Leg Spread: 475mm (1.56ft)

---

🔹 MPL12 (12 Rungs)

• Straight Length: 3525mm (11.56ft)
• A-Type Height: 1735mm (5.69ft)
• Platform Height: 925mm (3.03ft)
• Folded Height: 965mm (3.17ft)
• Folded Width: 275mm (0.90ft)
• Leg Spread: 475mm (1.56ft)

---

🔹 MPL14 (14 Rungs)

• Straight Length: 4085mm (13.40ft)
• A-Type Height: 2005mm (6.58ft)
• Platform Height: 1195mm (3.92ft)
• Folded Height: 1245mm (4.08ft)
• Folded Width: 275mm (0.90ft)
• Leg Spread: 475mm (1.56ft)

---

🔹 MPL16 (16 Rungs)

• Straight Length: 4645mm (15.24ft)
• A-Type Height: 2275mm (7.46ft)
• Platform Height: 1195mm (3.92ft)
• Folded Height: 1245mm (4.08ft)
• Folded Width: 275mm (0.90ft)
• Leg Spread: 475mm (1.56ft)

---

🔹 MPL18 (18 Rungs)

• Straight Length: 5205mm (17.08ft)
• A-Type Height: 2545mm (8.35ft)
• Platform Height: 1465mm (4.81ft)
• Folded Height: 1525mm (5.00ft)
• Folded Width: 275mm (0.90ft)
• Leg Spread: 475mm (1.56ft)

---

🔹 MPL20 (20 Rungs)

• Straight Length: 5765mm (18.91ft)
• A-Type Height: 2815mm (9.24ft)
• Platform Height: 1465mm (4.81ft)
• Folded Height: 1525mm (5.00ft)
• Folded Width: 275mm (0.90ft)
• Leg Spread: 475mm (1.56ft)

---

Perfect For

• Contractors & renovation
• M&E installation
• Telco / FTTx
• Warehouse access
• Facility maintenance

---

Safety Reminder

✔ Use on firm, level ground
✔ Ensure hinges are fully locked
✔ Do not exceed printed load rating
✔ One user at a time
✔ Follow EN131 usage guidelines
