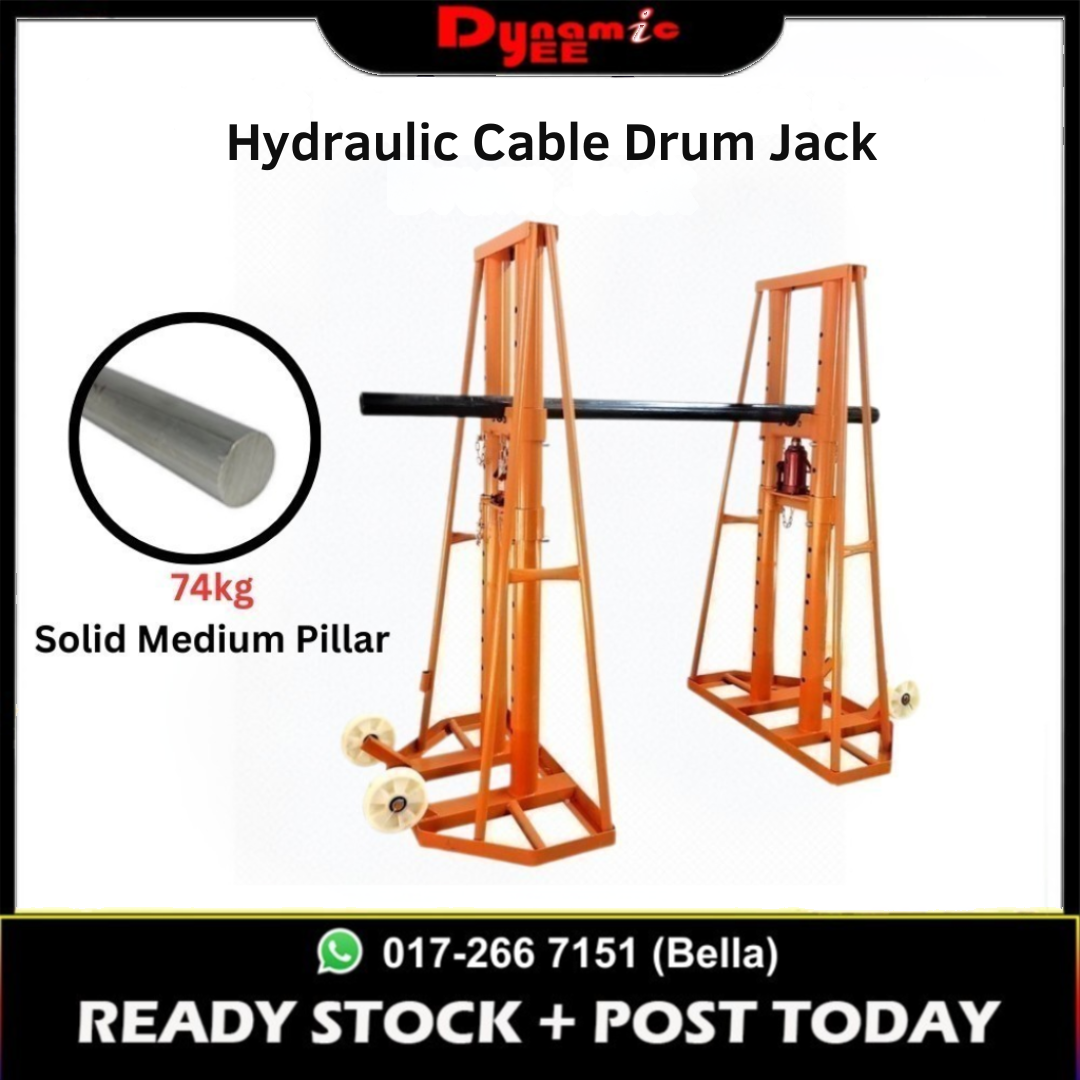

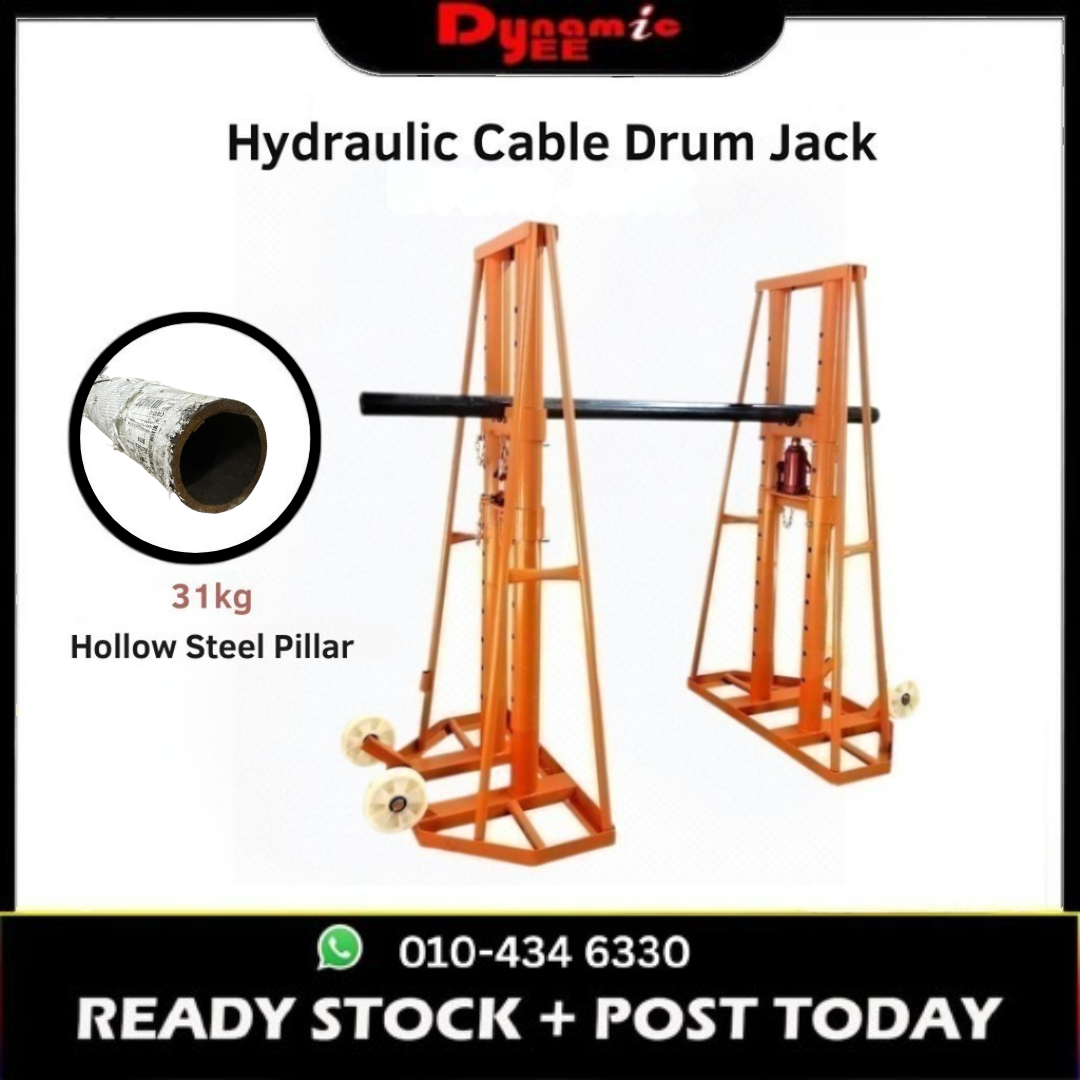

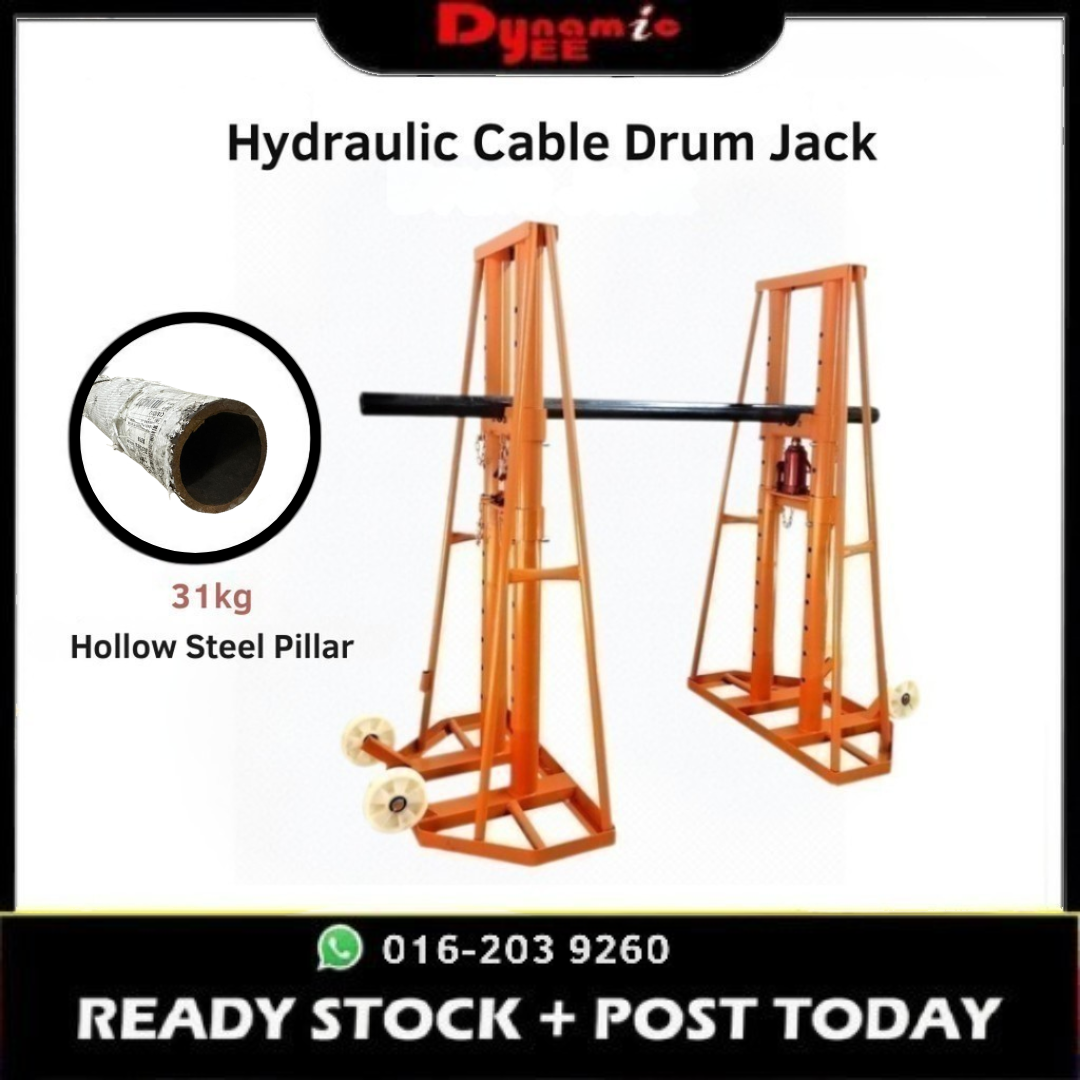

Hydraulic cable rack optical fiber portal-type pay-off stand rack holder small spiral pay-off bracket
Color classification: 3 tons spiral wire rack sets, 5 tons hydraulic wire rack sets, 10 tons hydraulic wire rack sets, 5 tons door set (with 8 tons Jack), thickened 5 tons door set, A set of 8-ton Portal (with 10-ton jack), a set of 8-ton thickened Portal, a set of 10-ton Portal (with 12-ton jack), a set of 10-ton thickened portal, thickened 13 tons set (alloy steel bars), thickened 15 tons set without horizontal bars, thickened 20 tons set without horizontal bars.
Color classification: 3 tons spiral wire rack sets, 5 tons hydraulic wire rack sets, 10 tons hydraulic wire rack sets, 5 tons door set (with 8 tons Jack), thickened 5 tons door set, A set of 8-ton Portal (with 10-ton jack), a set of 8-ton thickened Portal, a set of 10-ton Portal (with 12-ton jack), a set of 10-ton thickened portal, thickened 13 tons set (alloy steel bars), thickened 15 tons set without horizontal bars, thickened 20 tons set without horizontal bars.
SHIPPING DIMENSIONS:
- 5 TONS
1. FRAMES DIMENSION:
- WIDTH = 41cm
- LENGTH = 81cm
- HEIGHT = 153cm

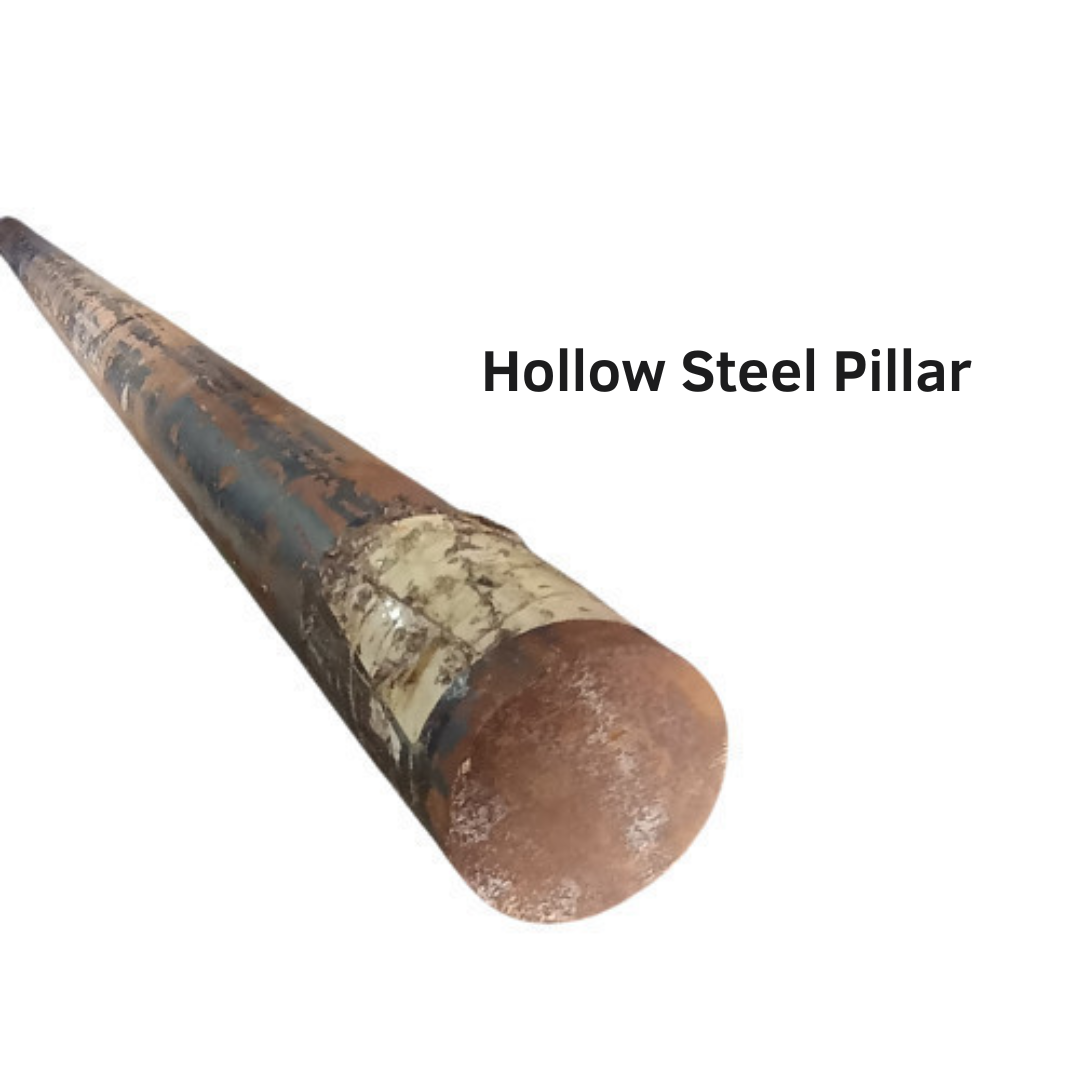

2. HOLLOW STEEL PILLAR DIMENSION:
- LENGTH =200cm
- THICKNESS = 6mm
- DIAMETER = 62mm (INNER). 74mm (OUTTER)
- 8 TONS
1. FRAMES DIMENSION:
- WIDTH = 41cm
- LENGTH = 81cm
- HEIGHT = 153cm
2. HOLLOW STEEL PILLAR DIMENSION:
- LENGTH = 230cm
- THICKNESS = 7mm
- DIAMETER = 68mm (INNER). 89mm (OUTTER)
- 10 TONS
1. FRAMES DIMENSION:
- WIDTH = 51cm
- LENGTH = 100cm
- HEIGHT = 184cm
2. HOLLOW STEEL PILLAR DIMENSION:
- LENGTH = 230cm
- THICKNESS = 7mm
- DIAMETER = 68mm (INNER). 89mm (OUTTER)
READY TO USE (UNPACKED/ASSEMBLED) DIMENSIONS:
- 5 TONS FRAMES DIMENSION:
- WIDTH = 41cm
- LENGTH = 81cm
- HEIGHT = 153cm
- STEEL PILLAR LENGTH = 200cm
- 8 TONS FRAMES DIMENSION:
- WIDTH = 41cm
- LENGTH = 81cm
- HEIGHT = 153cm
- STEEL PILLAR LENGTH = 230cm
- 10 TONS FRAMES DIMENSION:
- WIDTH = 51cm
- LENGTH = 100cm
- HEIGHT = 184cm
- STEEL PILLAR LENGTH = 230cm
| Carrying Capacity | Frame Size (L × W × H) | Hollow Steel Pillar Length | Pillar Thickness | Pillar Inner / Outer Diameter | Reference Height | Applicable Cable Reel Diameter | Jack Tonnage | Approx. Weight |
|---|---|---|---|---|---|---|---|---|
| 5 Ton | 81 × 41 × 153cm | 200cm | 6mm | 62mm / 74mm | 1.53m | ≤2.5m | 8T | 135kg |
| 8 Ton | 81 × 41 × 153cm | 230cm | 7mm | 68mm / 89mm | 1.53m | ≤2.5m | 10T | 135kg |
| 10 Ton | 100 × 51 × 184cm | 230cm | 7mm | 68mm / 89mm | 1.84m | ≤3.2m | 12T | 165kg |
