Cable Tractor Pulling Pushing Machine Optical Cable Tractor Machine 3000N 4200N OCT101

Specification:

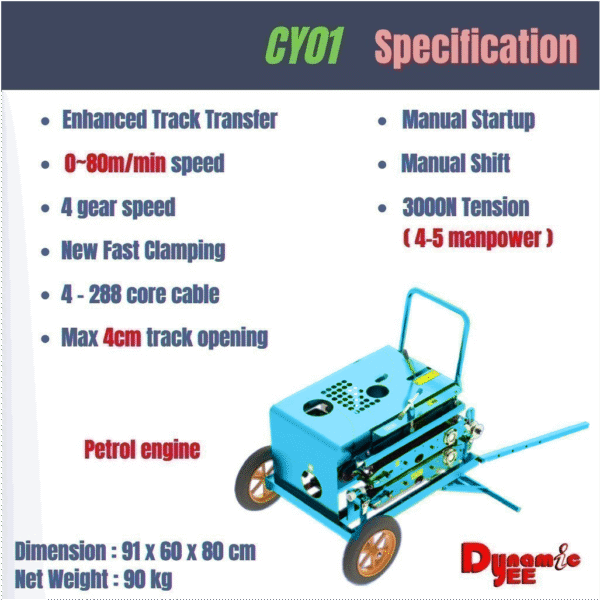

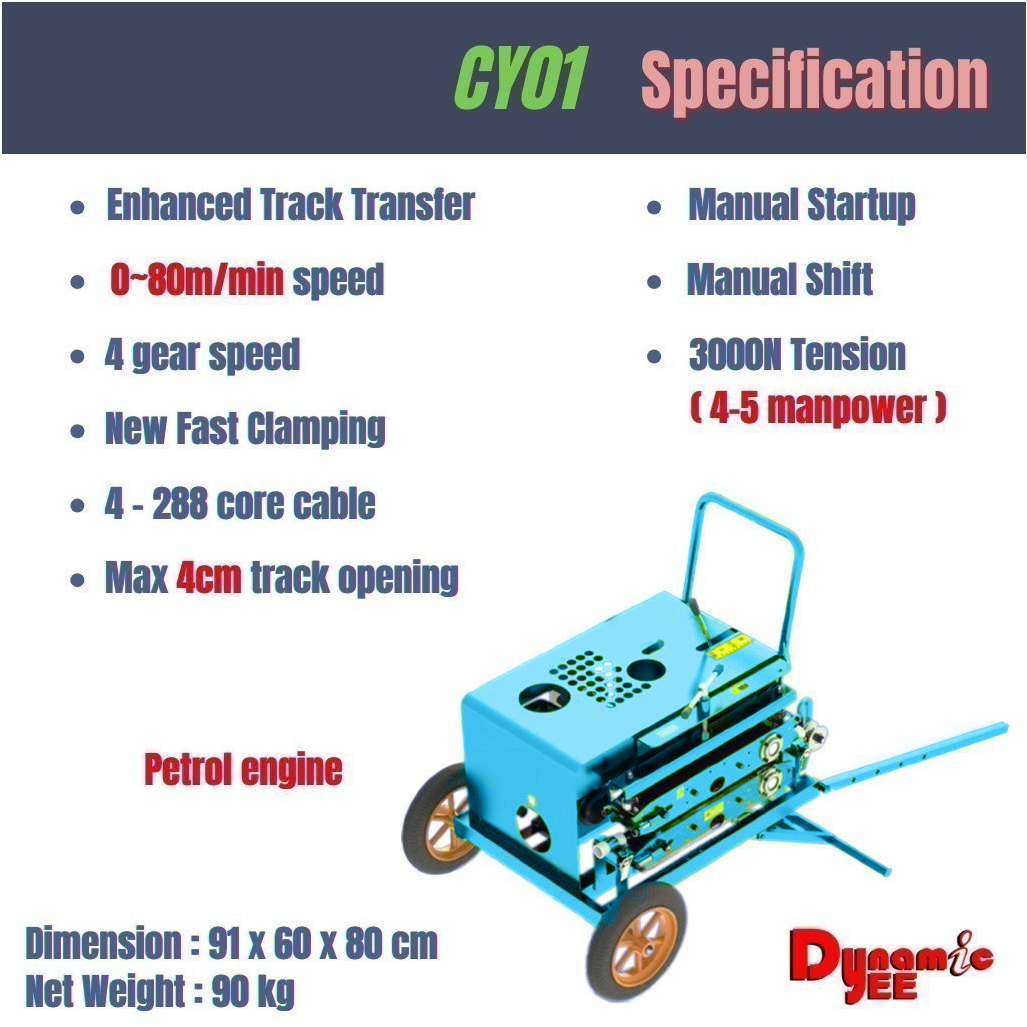

==== CY01 ====

Fuel: Gasoline

Output tension: 3000N (4-5 manpower)

Control Mode: Manual Shift

Transfer Mode: Enhanced Track Transfer

Transmission Speed: 0~80m/min

Speed Adjustment: 4 gear

Clamping Method: New Fast Clamping

Maximum Track Opening: 4cm

Applicable Cable: 4 ~ 288 cores (Fiber Optic Cable/Steel Strand）



Dimensions: 91x60x80cm

Net Weight: 90kg

==============

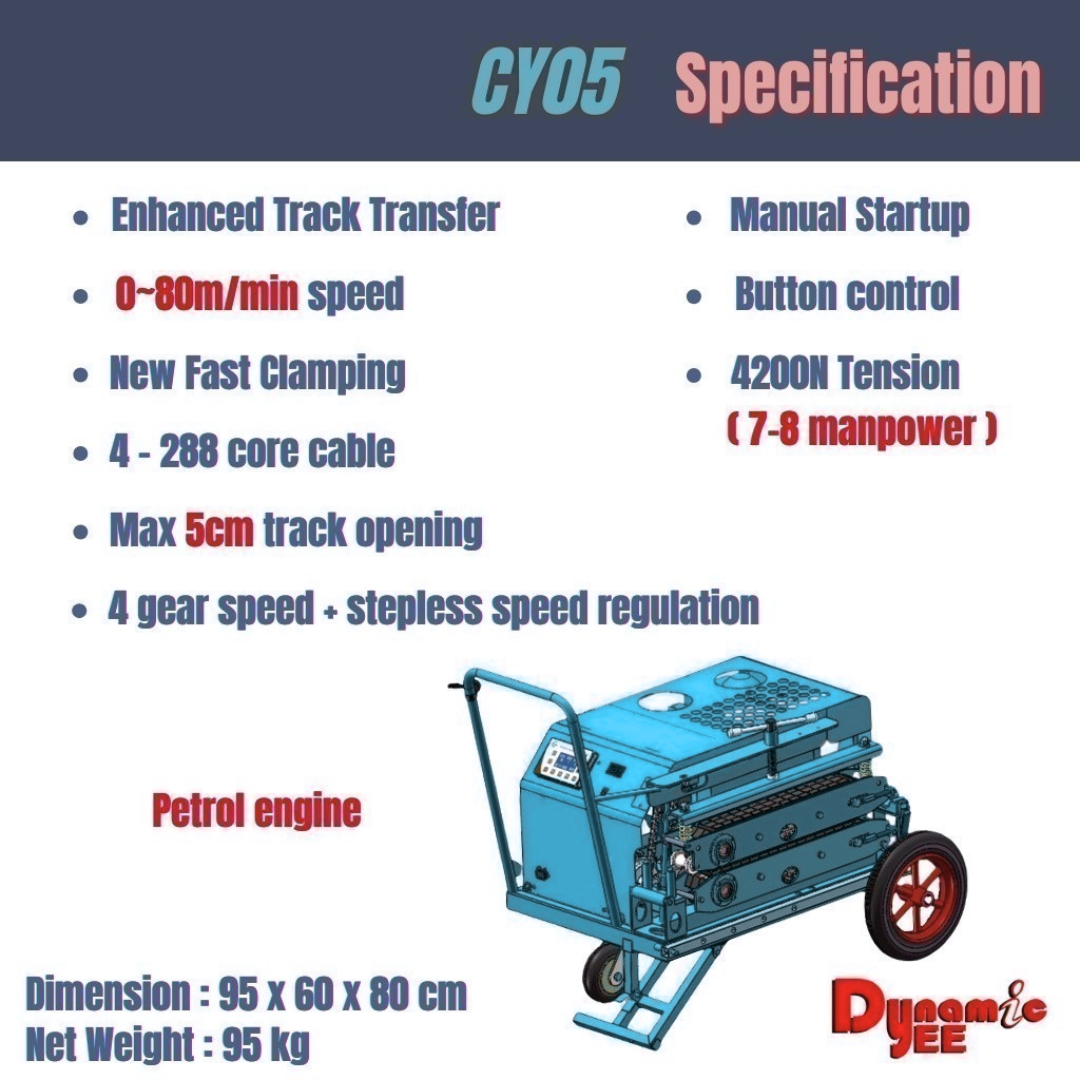

==== CY05 =====

Fuel: Gasoline

Output tension: 4200N (7-8 man power)

Control Mode: Button Control

Transfer Mode: Enhanced Track Transfer

Transmission Speed: 0~80m/min

Speed Adjustment: 4 gear + Stepless speed regulation

Clamping Method: New Fast Clamping

Maximum Track Opening: 5cm

Applicable Cable: 4 ~ 288 cores (Fiber Optic Cable/Steel Strand）



Dimensions: 95x60x80cm

Net Weight: 95kg

==============



Under Warranty Parts:

Model: CY01

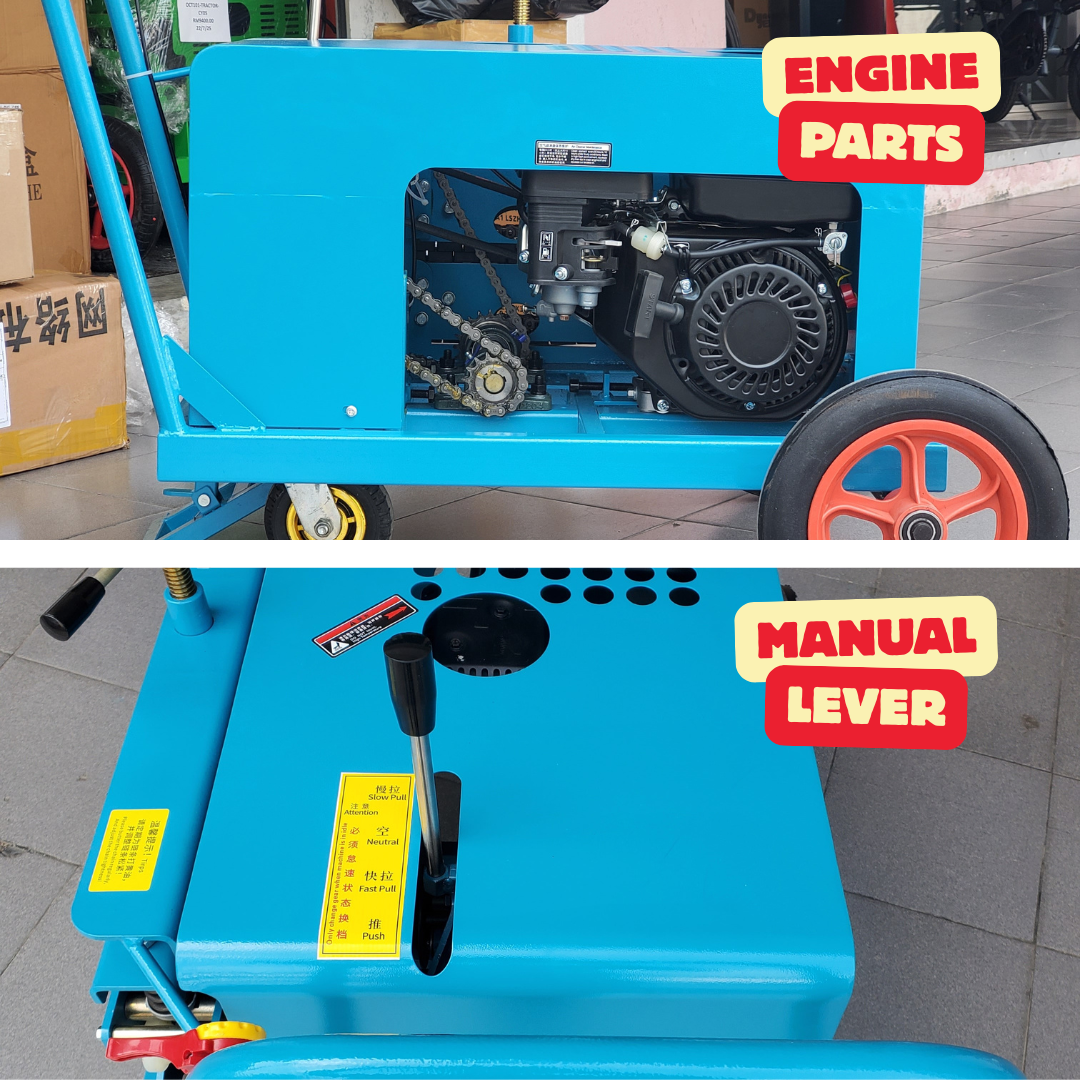

1. Engine

2. Gearbox

Model: CY05

1. Engine

2. Gearbox

3. Button Board

!!! P.S. WARRANTY CLAIM PROCESS !!!

For Optical Cable Tractor Pulling & Pushing Machine warranty claims, customers may choose either of the following options:

Option 1: Send the machine directly to us for checking and repair.
Our team will inspect the machine and advise accordingly.

Option 2: Send the machine to a nearby repair/service shop for checking only.
Any checking/diagnostic fee charged by the third-party shop will be borne by the customer.

If the issue is confirmed to be caused by a faulty part covered under warranty, we will provide replacement for the affected warranty-covered part.

Warranty-covered parts:

• Engine

• Gearbox

• Button Board

If the customer does not wish to bear third-party checking fees, the machine can be sent directly to us for inspection.

Important Note:
Please contact us before sending the machine for warranty claim so we can guide you on the correct checking process. Warranty claim approval is subject to inspection and confirmation of the faulty part.

!!! P.S. PROSES TUNTUTAN WARANTI !!!

Untuk tuntutan waranti Optical Cable Tractor Pulling & Pushing Machine, pelanggan boleh memilih salah satu pilihan berikut:

Pilihan 1: Hantar mesin terus kepada kami untuk pemeriksaan dan pembaikan.
Pihak kami akan membuat pemeriksaan dan memberi maklum balas lanjut.

Pilihan 2: Hantar mesin ke kedai servis/repair berdekatan untuk pemeriksaan sahaja.
Sebarang caj pemeriksaan/diagnosis yang dikenakan oleh kedai pihak ketiga adalah di bawah tanggungan pelanggan.

Jika kerosakan disahkan berpunca daripada komponen yang termasuk dalam senarai waranti, pihak kami akan menggantikan komponen waranti yang rosak tersebut.

Komponen yang termasuk dalam waranti:

• Engine

• Gearbox

• Button Board

Sekiranya pelanggan tidak mahu menanggung caj pemeriksaan di kedai luar, pelanggan boleh menghantar mesin terus kepada kami untuk pemeriksaan.

Nota Penting:
Sila hubungi kami terlebih dahulu sebelum menghantar mesin untuk tuntutan waranti supaya kami boleh memberi panduan proses pemeriksaan yang betul. Kelulusan tuntutan waranti adalah tertakluk kepada pemeriksaan dan pengesahan kerosakan.

Agent in Malaysia – Dynamic EE Zone Sdn Bhd

*** Local – Ready Stock ***
