BELDEN AP700009 RJ45 Connector CAT6A STP Shielded 100 Ohm Straight Male Plug LAN Network Modular Plug RJ209

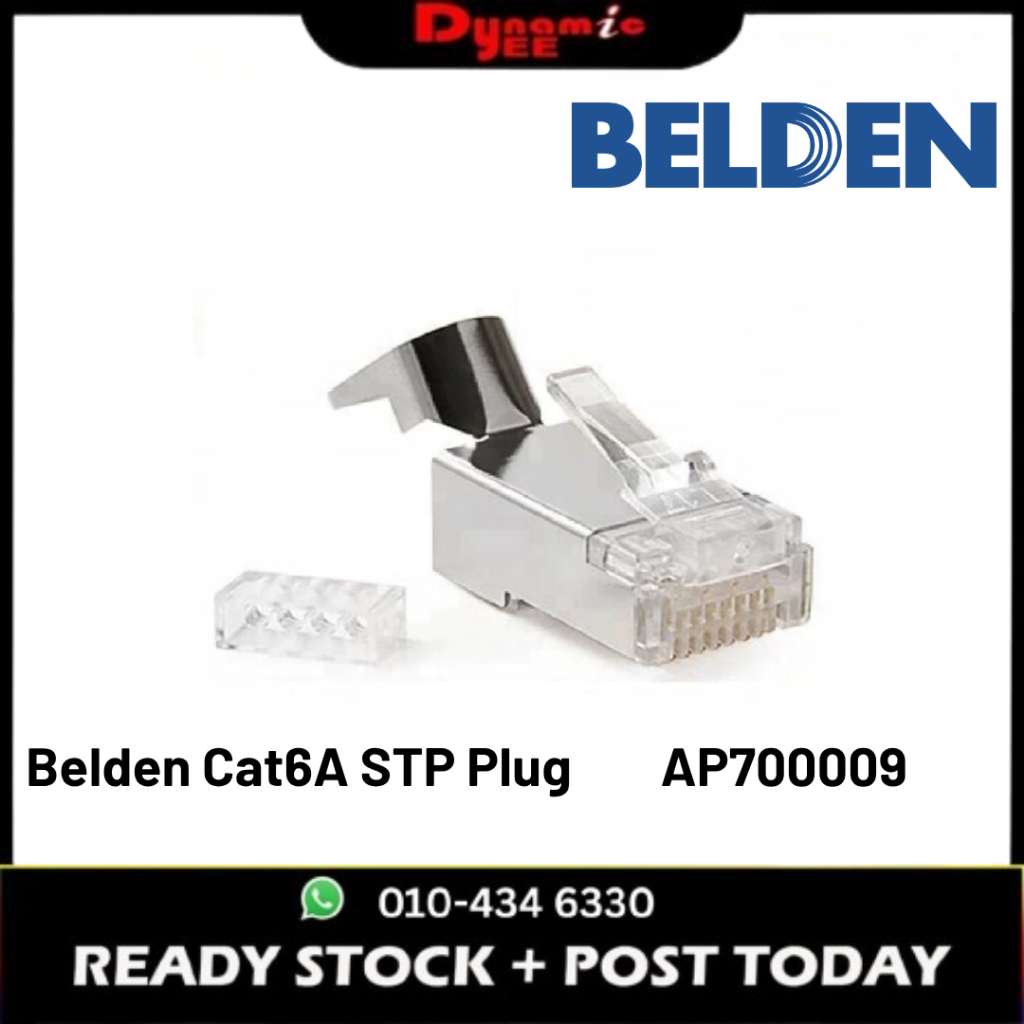

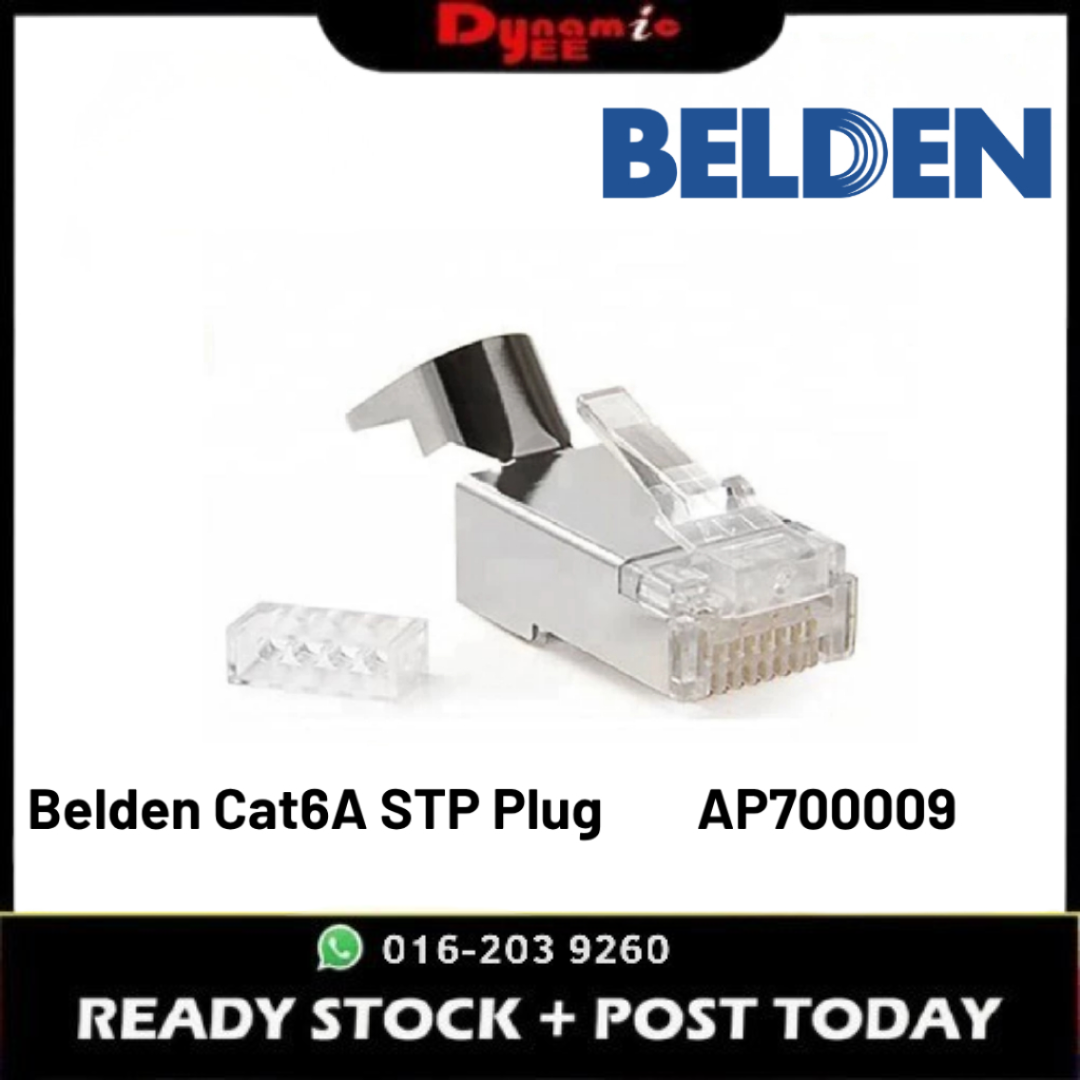

BELDEN AP700009 RJ45 CONNECTOR – CAT6A STP SHIELDED STRAIGHT MALE PLUG

Specifications:

Brand: BELDEN
Model: AP700009
Category: CAT6A
Connector: RJ45 / 8P8C
Type: STP Shielded
Contact: 3-Prong
Cable Size: 23–26 AWG
Cable Type: Solid / Stranded
Insulated Conductor Ø: 1.05–1.15mm
Max Cable OD: <8.0mm
Impedance: 100 Ohm
PoE: Supports PoE / 802.3af
Compatibility: ✅ CAT6A STP/FTP
✅ CAT6 STP/FTP – if cable dimensions match
⚠️ CAT5e/CAT6 UTP – check cable dimensions before purchase
❌ 22AWG not supported

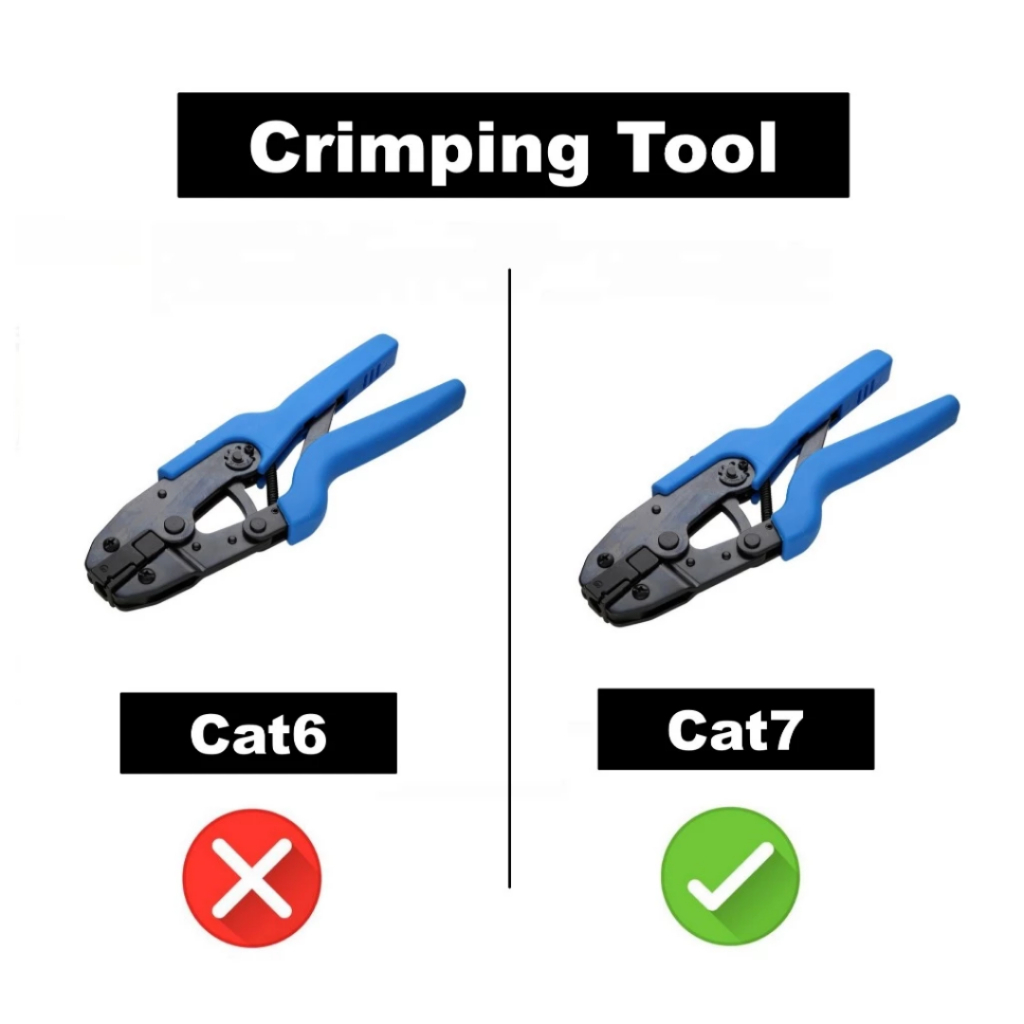

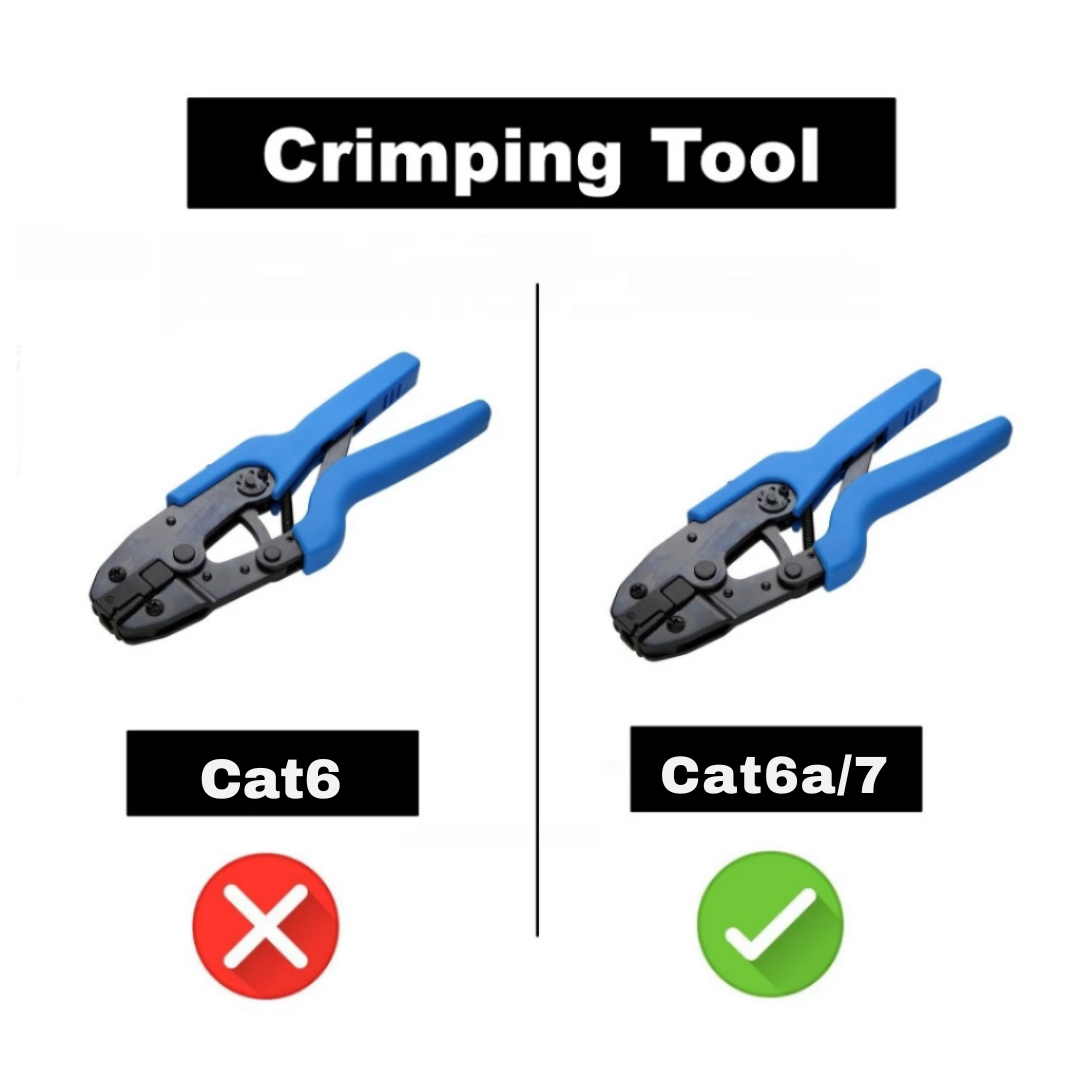

Recommended Crimper:
BELDEN AP100005 CAT6/CAT6A STP Crimping Tool
⚠️ Not all RJ45 crimpers are compatible. Please check the crimper die/type before use.

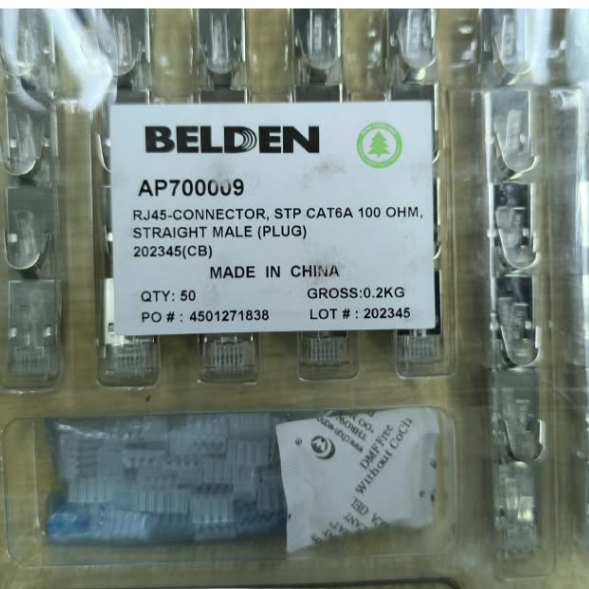

📦 PACKAGE CONTENT

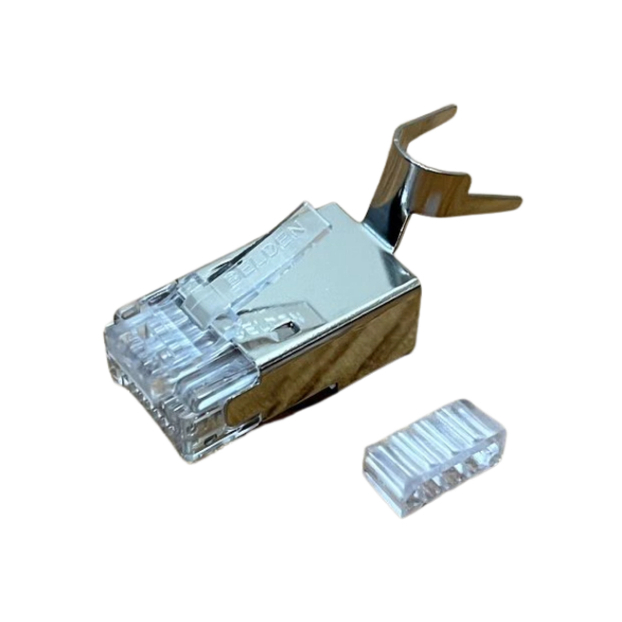

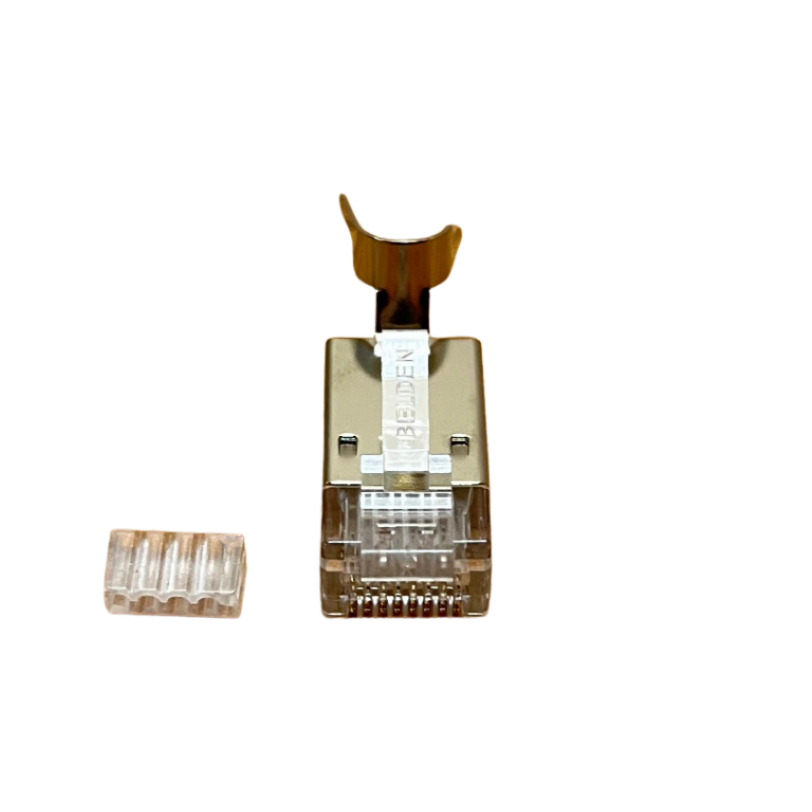

BELDEN AP700009 RJ45 CAT6A STP Connector
Quantity: 1PCS Of Connector
