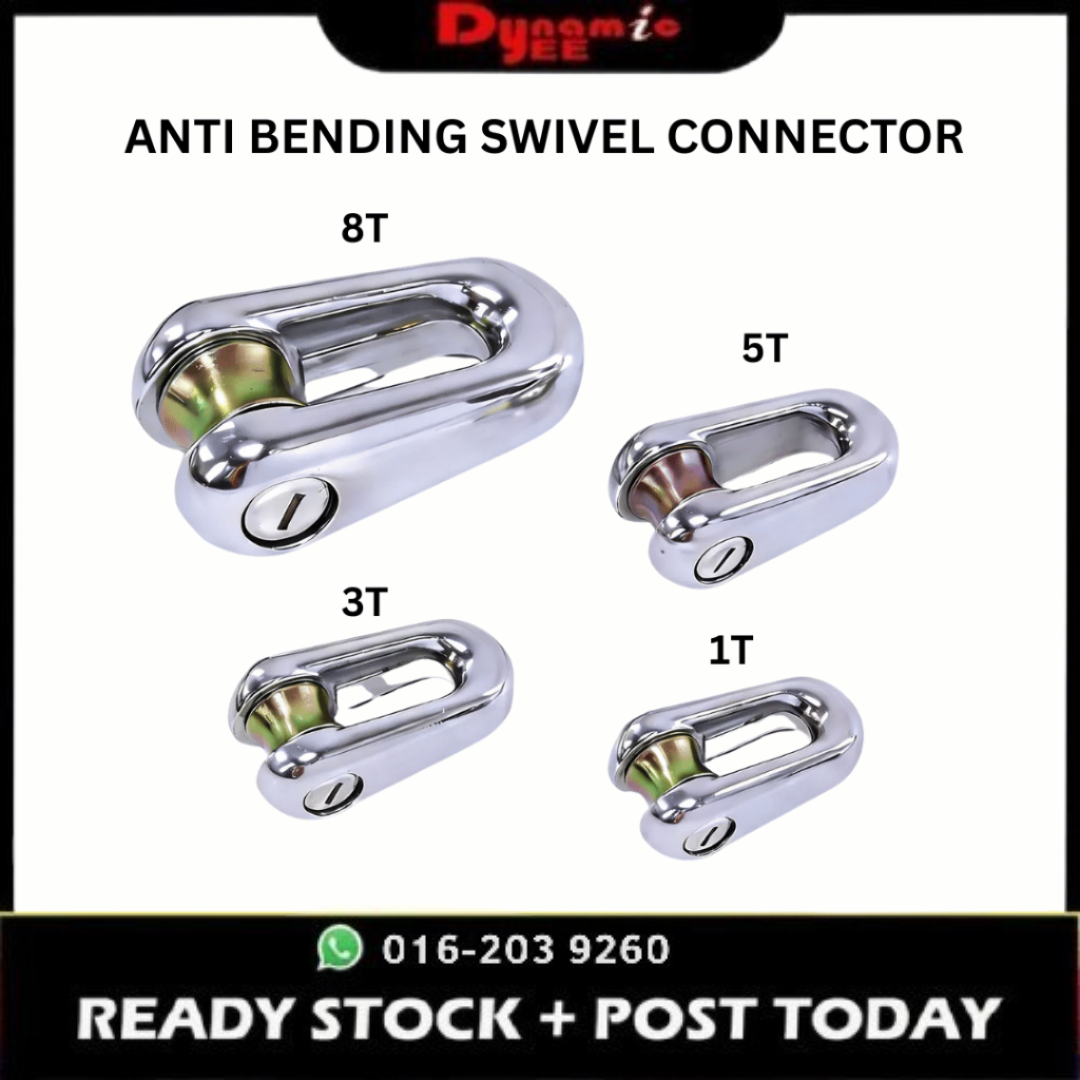

ANTI-BENDING SWIVEL CONNECTOR Cable Pulling Swivel Joint Wire Rope Connector ——RC201
Product Description
The RC201 Anti-Bending Swivel Connector is a heavy-duty cable pulling accessory designed for connecting pulling ropes, wire ropes and cable pulling equipment during cable installation and traction work.
Its compact U-shaped design helps the connector pass smoothly through cable pulleys, corners, tensioning machines and pulling equipment while reducing excessive bending and stress on the connected rope. This type of anti-bending connector is commonly used for cable pulling and overhead line stringing applications.
Available in 4 load capacities: 1 Ton, 3 Ton, 5 Ton and 8 Ton.
⭐ Key Features
✔ Heavy-Duty Construction
Made from high-strength metal construction for demanding cable pulling and traction applications.
✔ Anti-Bending Design
Special U-shaped profile helps reduce excessive bending and stress on the pulling rope during operation.
✔ Suitable for Cable Pulling
Designed for connecting pulling ropes / anti-twisting wire ropes during cable installation work.
✔ Smooth Passage Through Pulley Systems
Compact profile allows the connector to travel through corners, pulleys, pulling machines and tensioning equipment.
✔ Removable Pin Design
Allows convenient connection and removal of the pulling rope.
✔ Multiple Load Options
Choose from 1T / 3T / 5T / 8T according to your application.
📋 Specifications
| Type | Rated Load | Length | Opening |

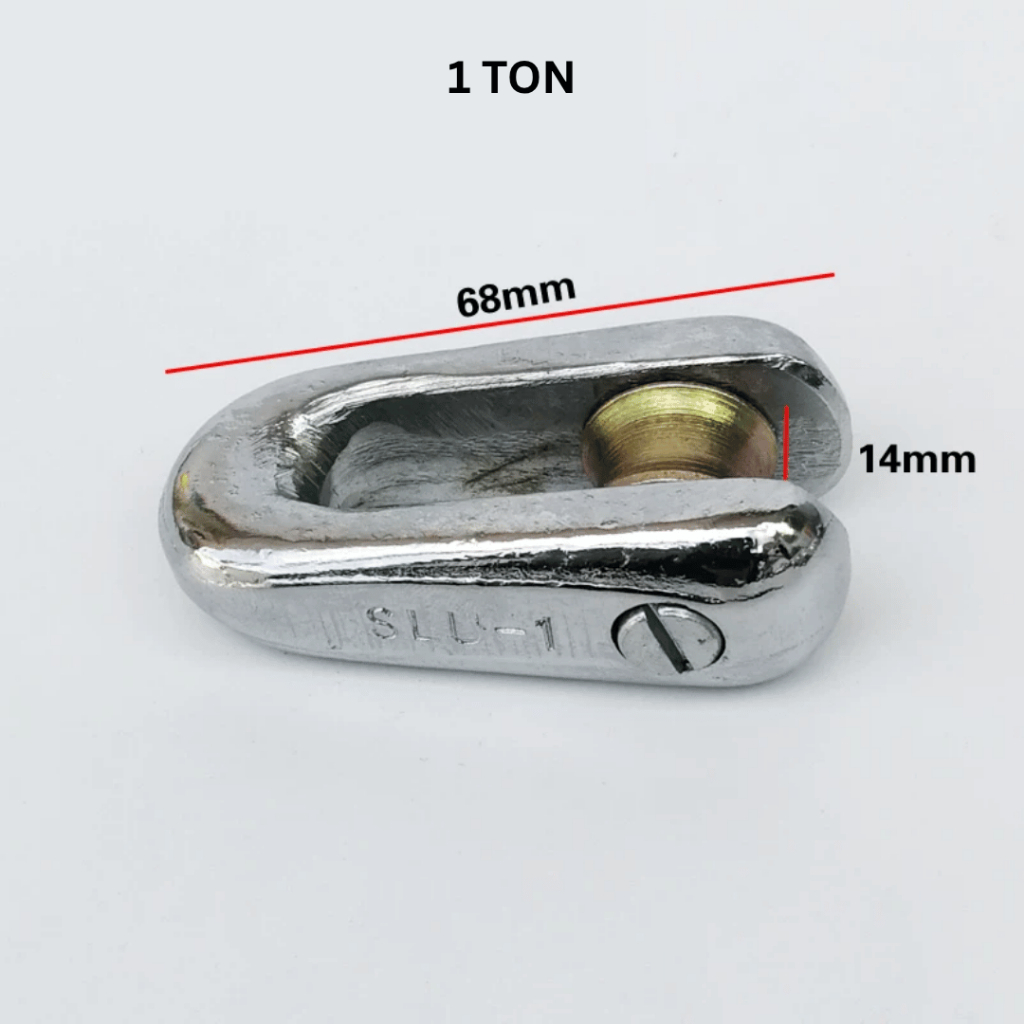

| **1 Ton** | 10kN | **68mm** | **14mm** |

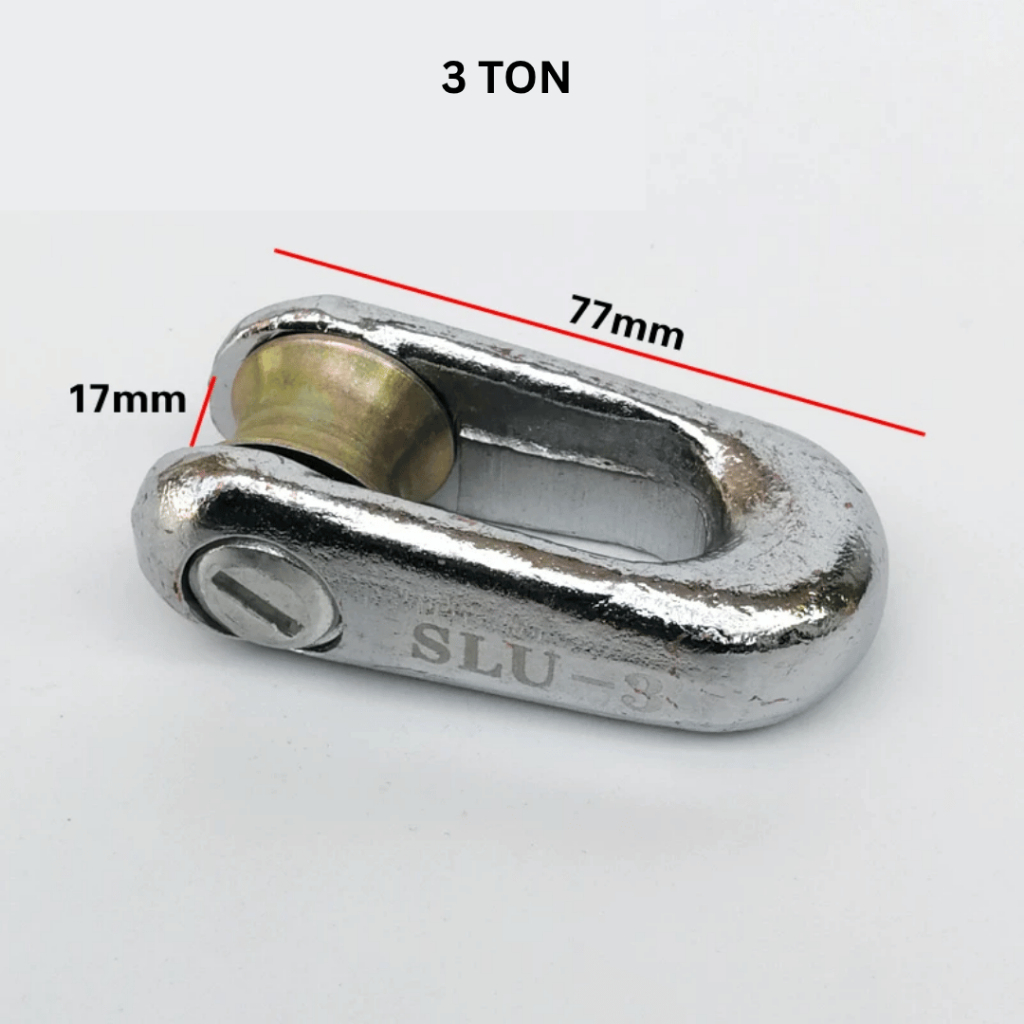

| **3 Ton** | 30kN | **77mm** | **17mm** |

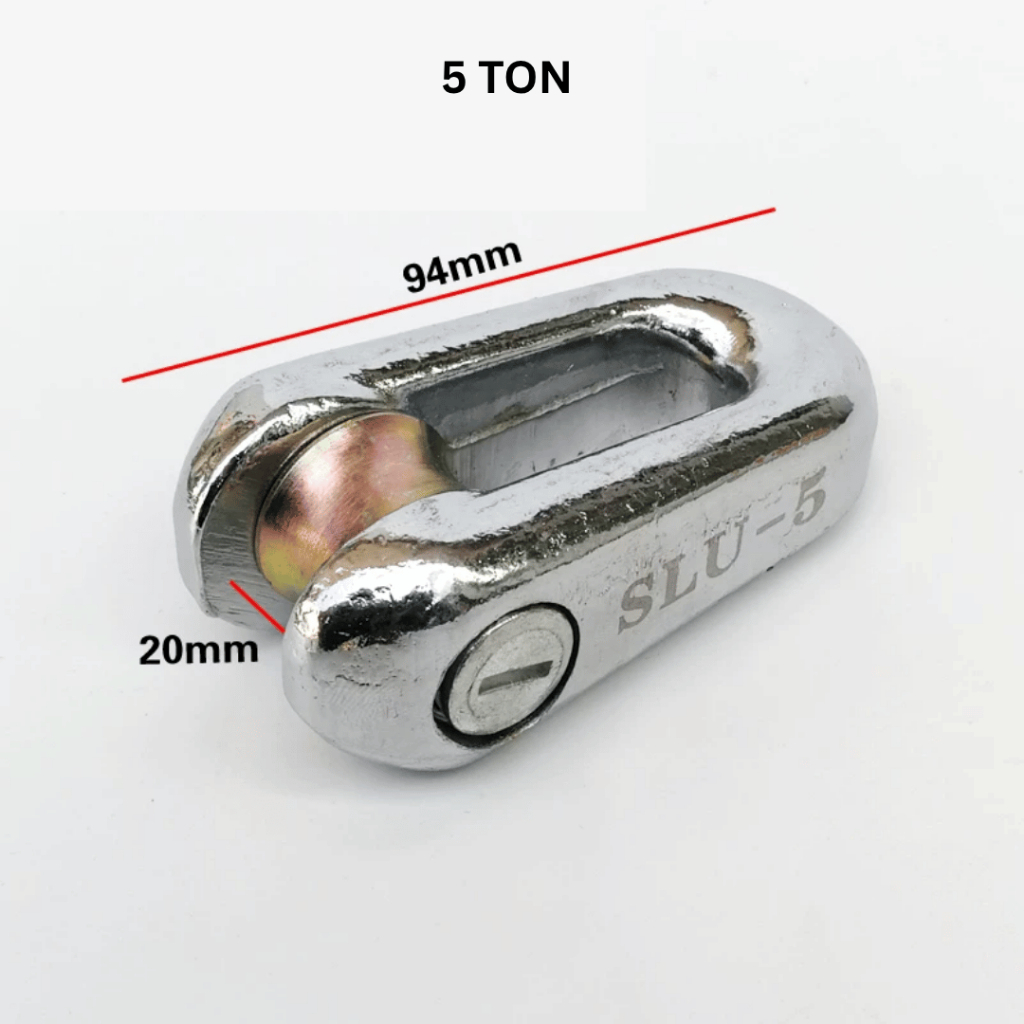

| **5 Ton** | 50kN | **94mm** | **20mm** |

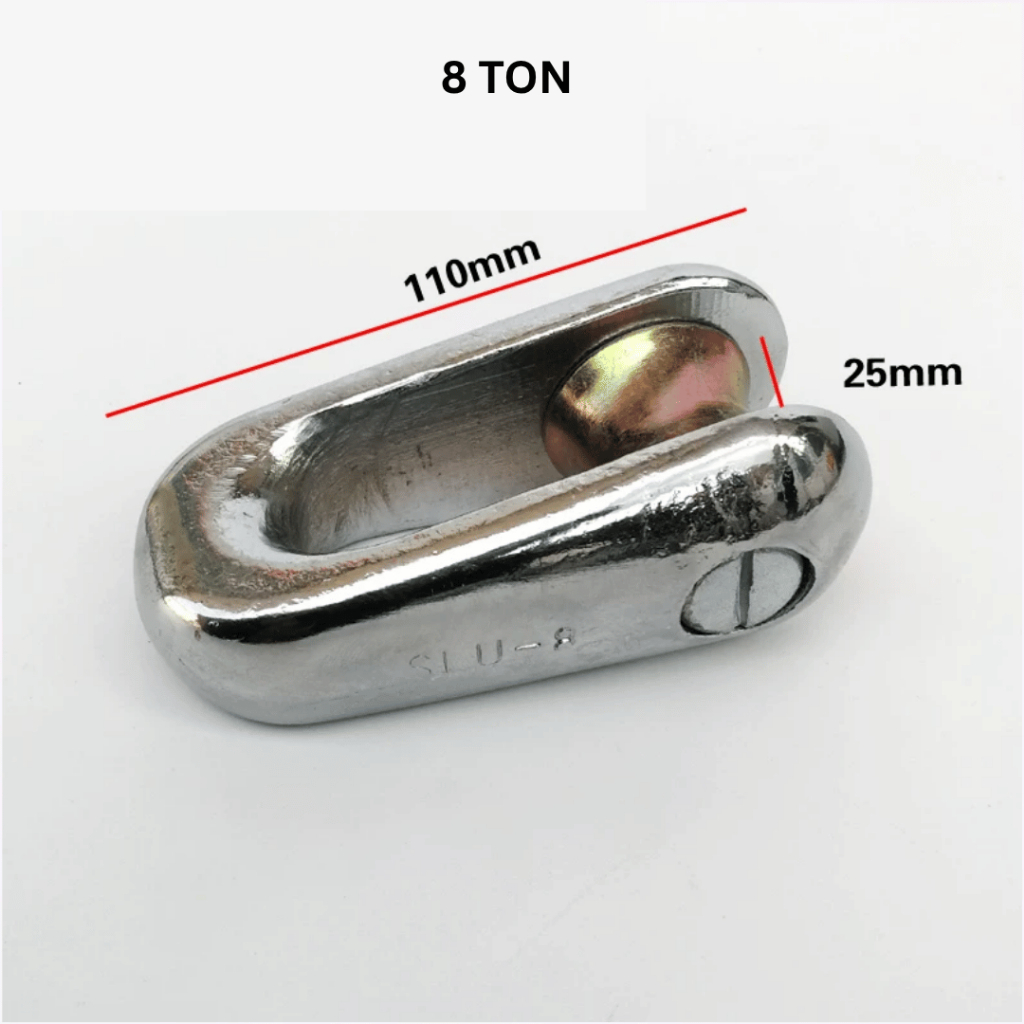

| **8 Ton** | 80kN | **110mm** | **25mm** |
Product Code: RC201
Product Type: Anti-Bending Connector
Available Sizes: 1 Ton / 3 Ton / 5 Ton / 8 Ton
The 10kN, 30kN, 50kN and 80kN ratings correspond to this SLU-type anti-bending connector family.
🛠 Suitable Applications
Cable pulling installation
Electrical cable laying
Fiber optic cable installation
Pulling rope connection
Anti-twisting wire rope connection
Cable pulley systems
Overhead line construction
Power transmission projects
Cable tensioning & traction work
Construction and maintenance work
📦 Package Includes
1 × Anti-Bending Swivel Connector RC201
Please select your required capacity:
1 TON / 3 TON / 5 TON / 8 TON
