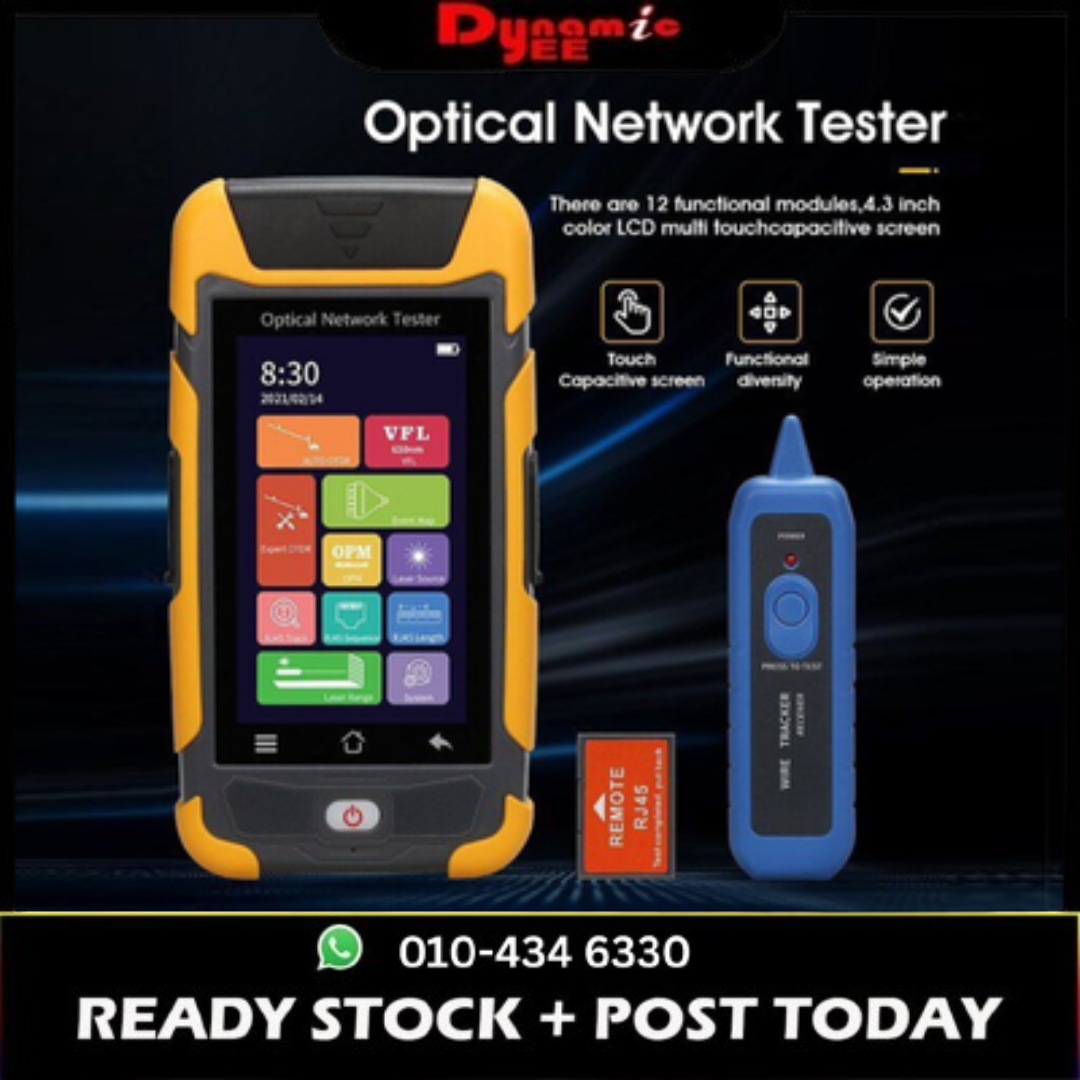

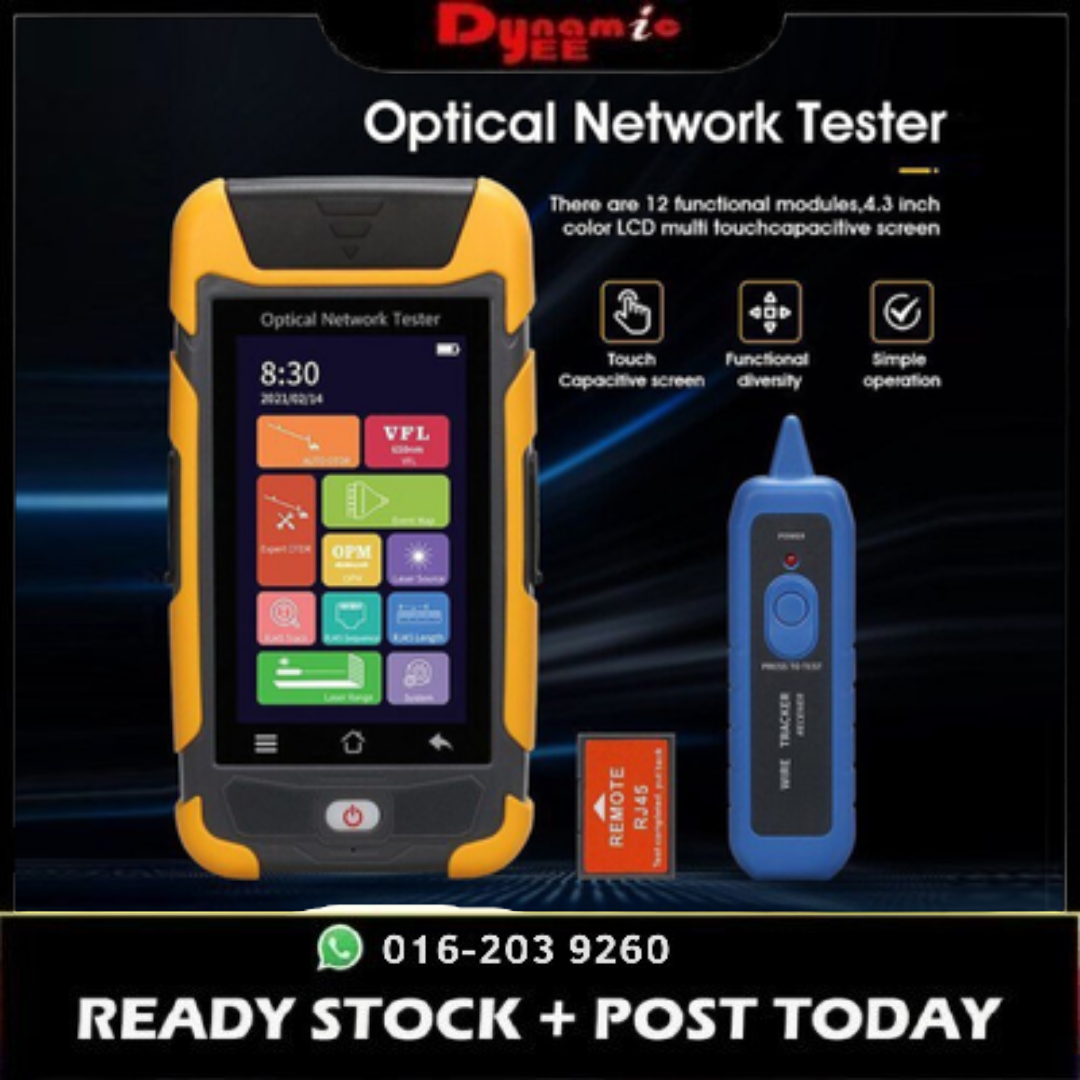

12 IN 1 Mini OTDR 1625U (Live Network Test)
Description:
The 12 IN 1 Mini OTDR 1625U is a versatile fiber testing device designed for live network testing on single-mode (SM) fibers at 1625nm. It combines multiple essential fiber tests in one handheld unit.
Features:
Auto OTDR Expert: Automatic analysis and event mapping.
OTDR Event Map: Visual representation of events for quick diagnostics.
Real Time Testing & High-Accuracy Testing: Quickly detects fiber breaks, losses, splices, and connection points
Optical Power Meter (OPM): Measures optical signal power levels.
Optical Light Source (OLS): Generates stable optical signals.
Insertion Loss (IL): Measures signal power loss through a fiber.
Visual Fault Locator (VFL): Identifies faults and breaks in the fiber.
RJ45 Cable Tracking: Tracks RJ45 cables for network maintenance.
RJ45 Cable Sequence: Verifies the sequence of RJ45 cables.
RJ45 Cable Length: Measures the length of RJ45 cables.
Space Distance: Calculates distance between test points.
LED Light: Provides illumination in low-light conditions.
Technical Specifications:
Wavelength: 1625nm
Dynamic Range: 26dB
Testing Range: 1.2m to 90km
Additional Features:
Combines essential fiber tests in one device (OPM, OLS, VFL, etc.).
Easy-to-understand OTDR analysis with event lists.
Ratification of PON circuit or firing problem.
Field-upgradable for extended functionality.
All-day battery life.
12 IN 1 Mini OTDR 1310/1550 (Non-Live Test)
Description:
The 12 IN 1 Mini OTDR 1310/1550 is designed for non-live network testing on single-mode (SM) fibers at 1310nm and 1550nm. It combines multiple essential fiber tests in one handheld unit.
Features:
Auto OTDR Expert: Automatic analysis and event mapping.
OTDR Event Map: Visual representation of events for quick diagnostics.
Optical Power Meter (OPM): Measures optical signal power levels.
Optical Light Source (OLS): Generates stable optical signals.
Insertion Loss (IL): Measures signal power loss through a fiber.
Visual Fault Locator (VFL): Identifies faults and breaks in the fiber.
RJ45 Cable Tracking: Tracks RJ45 cables for network maintenance.
RJ45 Cable Sequence: Verifies the sequence of RJ45 cables.
RJ45 Cable Length: Measures the length of RJ45 cables.
Space Distance: Calculates distance between test points.
LED Light: Provides illumination in low-light conditions.
Technical Specifications:
Wavelength: 1310/1550nm
Dynamic Range: 28/26dB
Testing Range: 1.2m to 90km
Additional Features:
Combines essential fiber tests in one device (OPM, OLS, VFL, etc.).
Easy-to-understand OTDR analysis with event lists.
Ratification of PON circuit or firing problem.
Field-upgradable for extended functionality.
All-day battery life.
Description:
The 12 IN 1 Mini OTDR 1625U is a versatile fiber testing device designed for live network testing on single-mode (SM) fibers at 1625nm. It combines multiple essential fiber tests in one handheld unit.
Features:
Auto OTDR Expert: Automatic analysis and event mapping.
OTDR Event Map: Visual representation of events for quick diagnostics.
Real Time Testing & High-Accuracy Testing: Quickly detects fiber breaks, losses, splices, and connection points
Optical Power Meter (OPM): Measures optical signal power levels.
Optical Light Source (OLS): Generates stable optical signals.
Insertion Loss (IL): Measures signal power loss through a fiber.
Visual Fault Locator (VFL): Identifies faults and breaks in the fiber.
RJ45 Cable Tracking: Tracks RJ45 cables for network maintenance.
RJ45 Cable Sequence: Verifies the sequence of RJ45 cables.
RJ45 Cable Length: Measures the length of RJ45 cables.
Space Distance: Calculates distance between test points.
LED Light: Provides illumination in low-light conditions.
Technical Specifications:
Wavelength: 1625nm
Dynamic Range: 26dB
Testing Range: 1.2m to 90km
Additional Features:
Combines essential fiber tests in one device (OPM, OLS, VFL, etc.).
Easy-to-understand OTDR analysis with event lists.
Ratification of PON circuit or firing problem.
Field-upgradable for extended functionality.
All-day battery life.
12 IN 1 Mini OTDR 1310/1550 (Non-Live Test)
Description:
The 12 IN 1 Mini OTDR 1310/1550 is designed for non-live network testing on single-mode (SM) fibers at 1310nm and 1550nm. It combines multiple essential fiber tests in one handheld unit.
Features:
Auto OTDR Expert: Automatic analysis and event mapping.
OTDR Event Map: Visual representation of events for quick diagnostics.
Optical Power Meter (OPM): Measures optical signal power levels.
Optical Light Source (OLS): Generates stable optical signals.
Insertion Loss (IL): Measures signal power loss through a fiber.
Visual Fault Locator (VFL): Identifies faults and breaks in the fiber.
RJ45 Cable Tracking: Tracks RJ45 cables for network maintenance.
RJ45 Cable Sequence: Verifies the sequence of RJ45 cables.
RJ45 Cable Length: Measures the length of RJ45 cables.
Space Distance: Calculates distance between test points.
LED Light: Provides illumination in low-light conditions.
Technical Specifications:
Wavelength: 1310/1550nm
Dynamic Range: 28/26dB
Testing Range: 1.2m to 90km
Additional Features:
Combines essential fiber tests in one device (OPM, OLS, VFL, etc.).
Easy-to-understand OTDR analysis with event lists.
Ratification of PON circuit or firing problem.
Field-upgradable for extended functionality.
All-day battery life.
This OTDR is able to print the report. OTDR report can only be printed out by using OT analyse & print software. This software can only run in PC or laptop, mobile device (smartphone) are not suitable (as for now). The format for the result is in .SOR
This OTDR Comes with a Calibration Certificate
Warranty Information:
1 Year Local Warranty (Warranty starts on the date of the Delivery Order [DO] or Invoice, which ever applicable)
