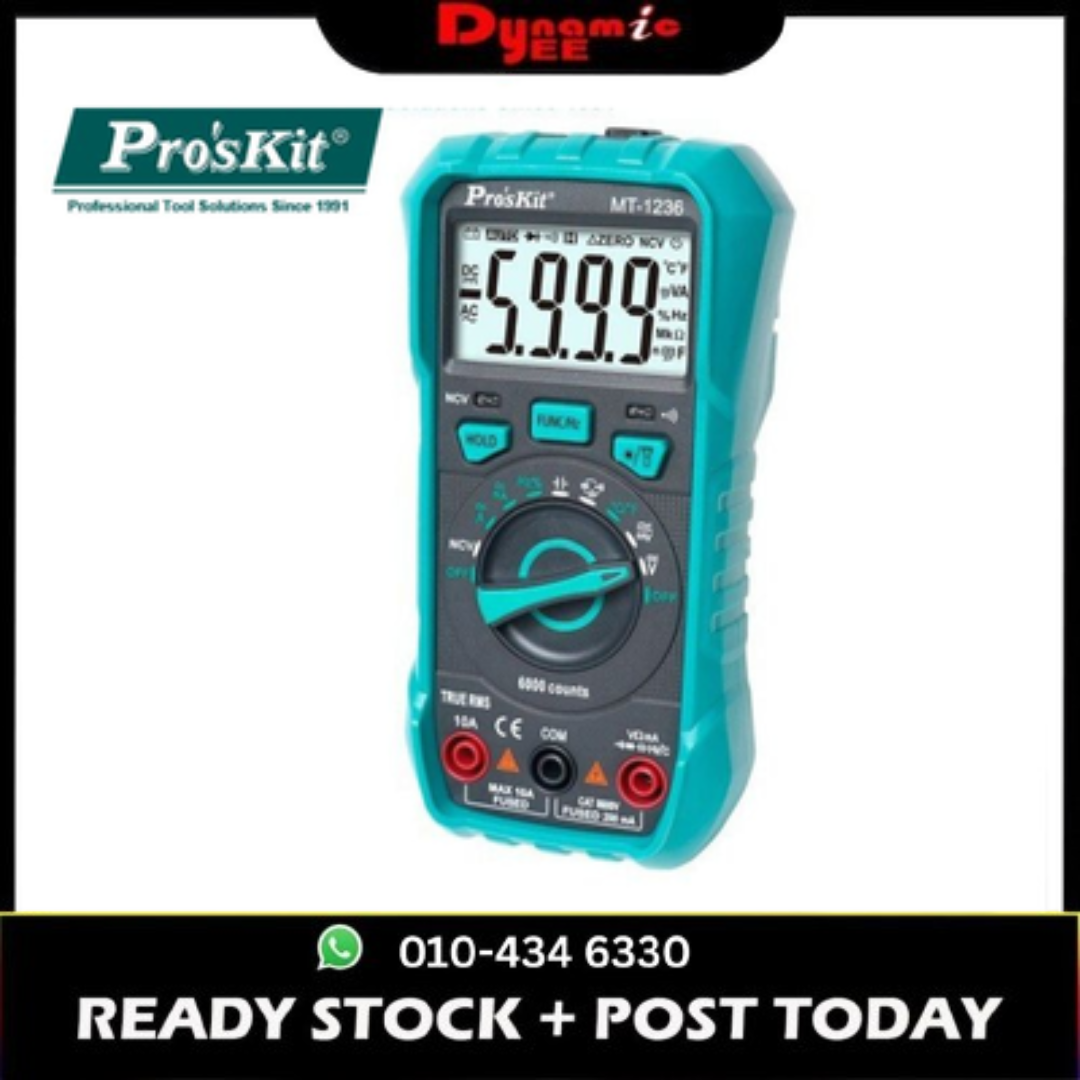

PRO’SKIT TRUE-RMS Digital Multimeter MT-1236

-Full function

-Accurate value

-ACV ACA true RMS measurment

-Overload protection

Full function

For ACA, ACV, DCA, DCV, frequency, duty cycle, diode test and more

Accurate value

W/ACV ACA true RMS measurment

Overload protection

Ensures user safety

Item #:MT-1236 true RMS digital multimeter

LCD Display :3 5/6 5999 counts

DCV: 600mv/6V/60V/600V ±(0.8% + 5D)

ACV: 600mv/6V/60V/600V ±(1% + 4D) TRUE-RMS

DCA: 60ma/600mA ±(1.2% + 5 D), 10a ±(3.0% + 5D)

ACA: 60ma/600mA ±(1.5% + 5 D), 10a ±(3.0% + 5D) TRUE-RMS

Frequency :9.999Hz/99.99Hz/999.9Hz/9.999kHz/99.99kHz/999.9kHz/9.999MHz ±(1.2% + 5D)

Duty cycle: 1% ~ 99% ±(2.5% + 5 D)

Temperature:

-20 ~ 1300 ℃ ±(1.0% + 3D)

-4℉ ~ 2372 ℉ ±(0.5% + 2D)

ResistanceΩ :600Ω/6K/600K/6M/60mΩ ±(0.8% + 5D), 100mf ±(4% + 10D)

Capacitance: 60nf/600nf/6UF/60UF/600UF/6mf ±(4% + 5D)

Temperature(℃/℉):

-20℃ ~ 1000 ℃ ±(1% + 3D)

-4℉ ~ 2372 ℉ ±(1% + 3D)

Buzzer continuity: ≤ 30Ω , buzzer beeps

Diode test: Y

NCV detection: Y

Data hold; Y

LED light: Y

LCD backlight: Y

Analog bar: Y

Low battery indication: Y

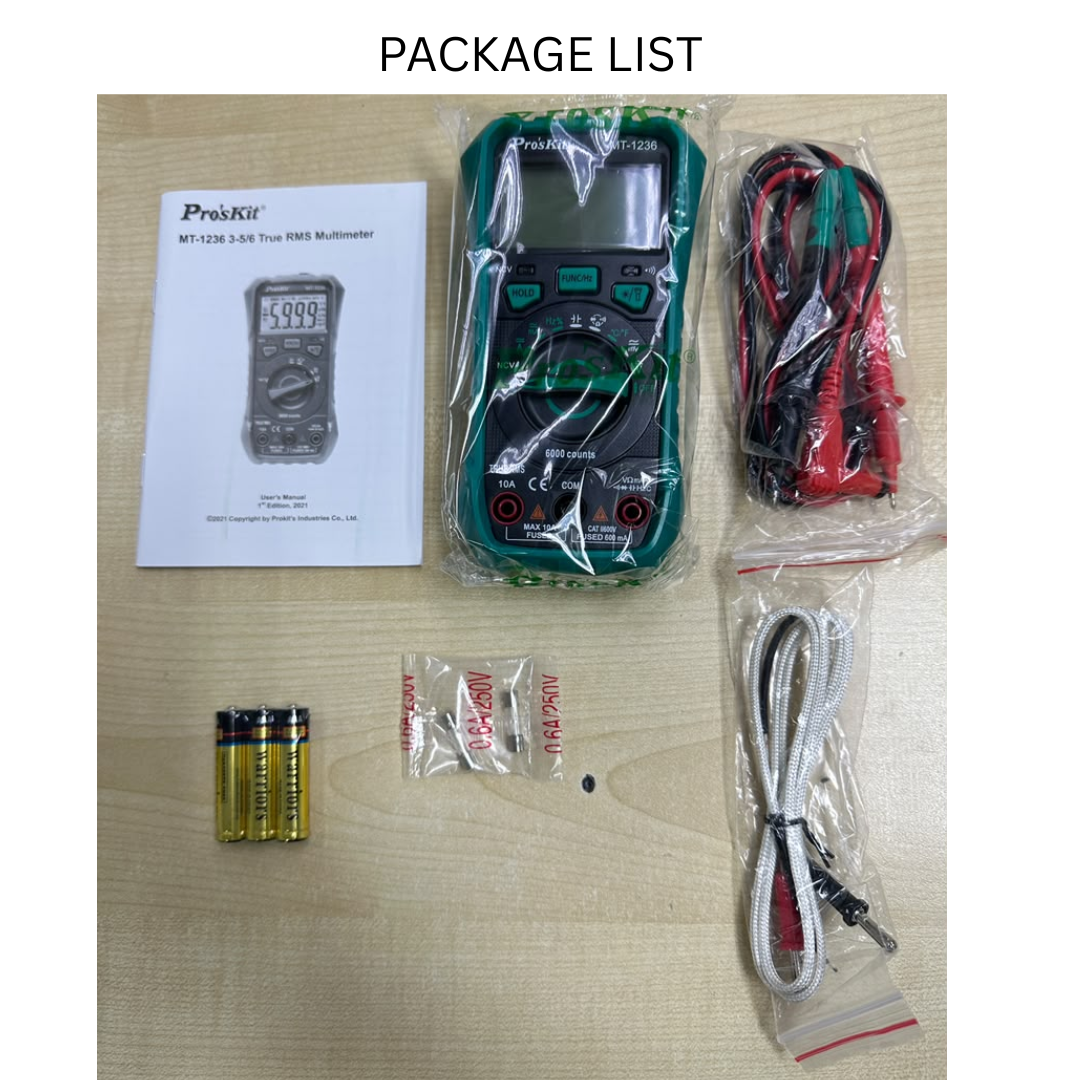

Accessories:Test lead, K-type thermocouple, manual

Power :1.5V AAA x 3PCs

Dimension :148mm x 79mm x 48mm

Weight :210g(without battery)
