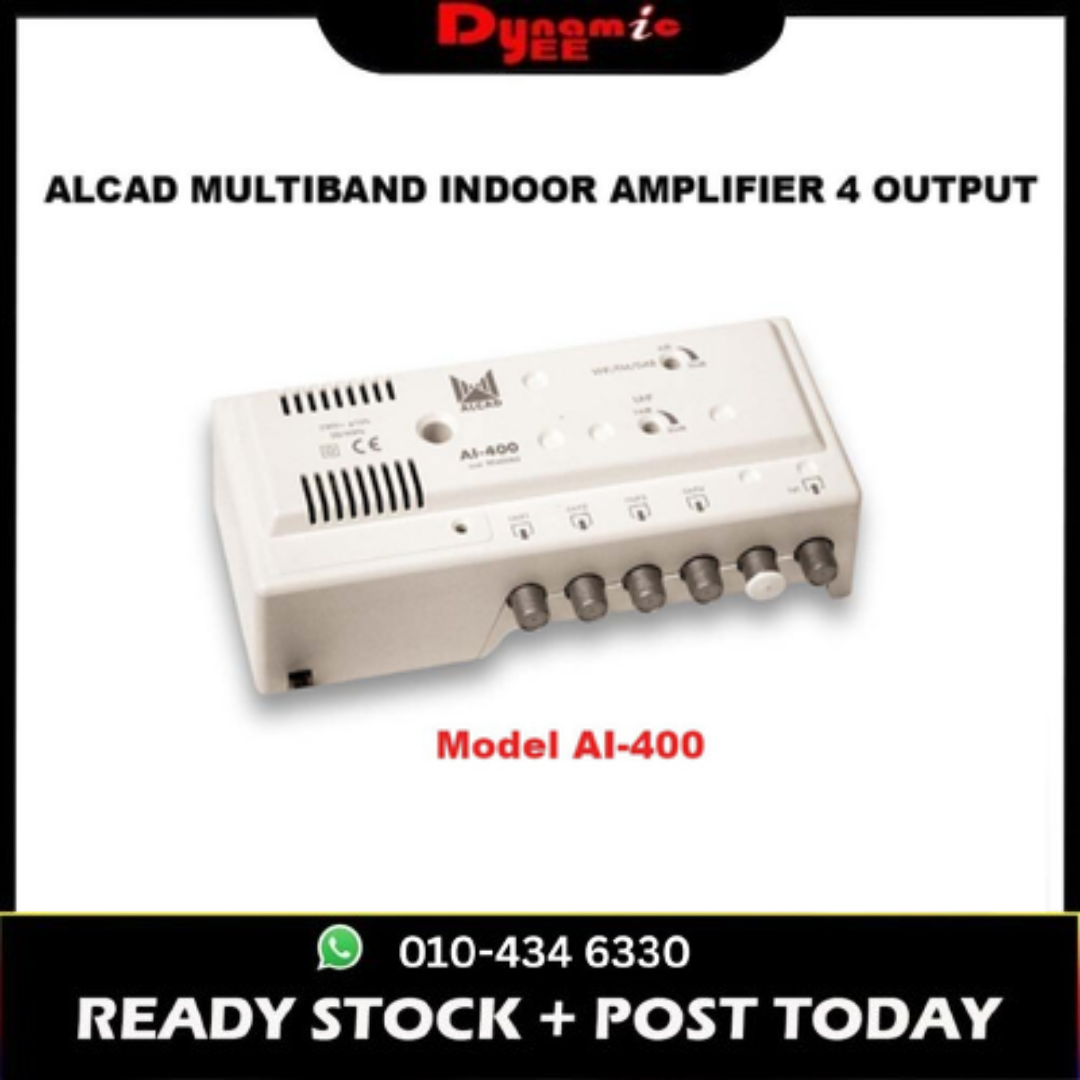

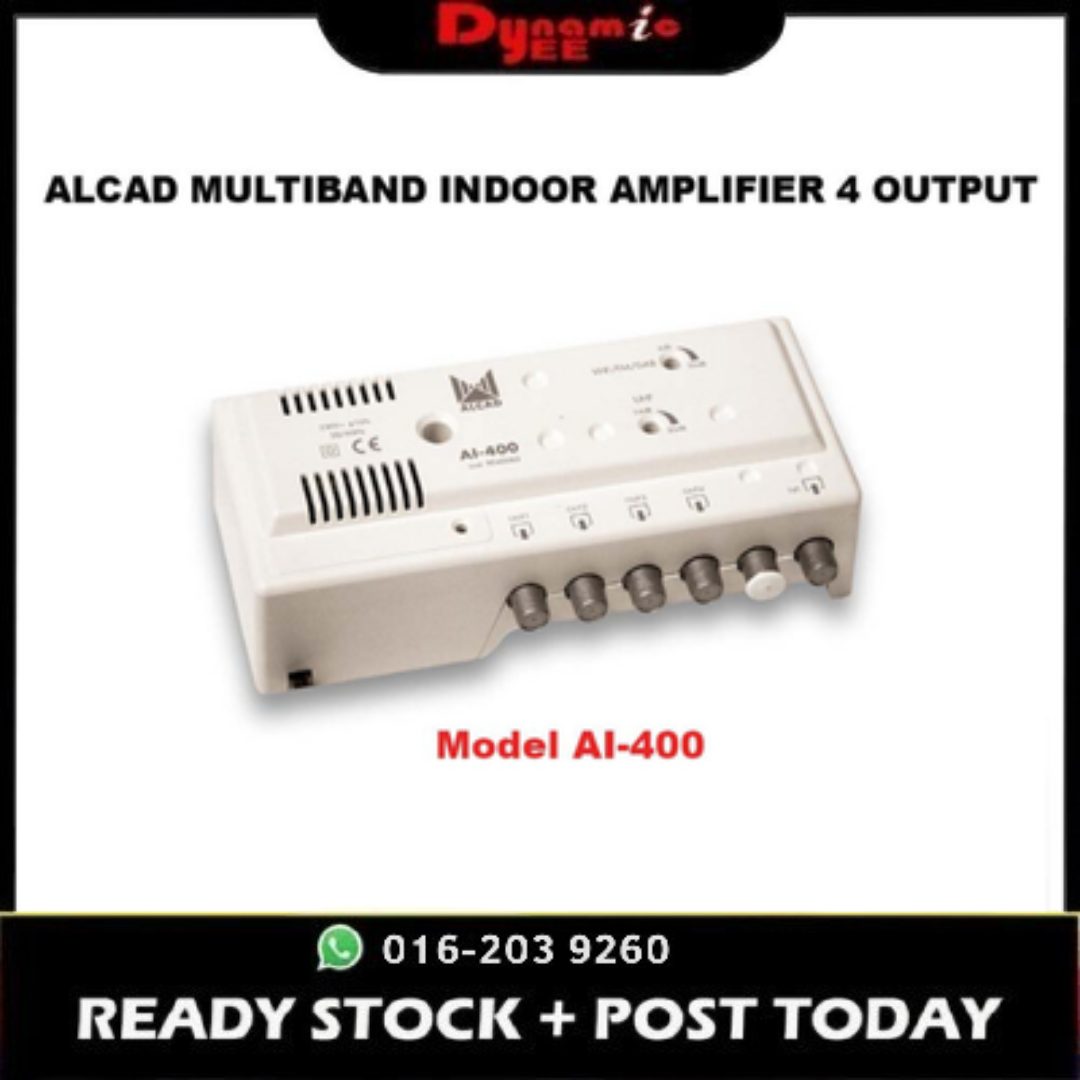

Broadband apartment amplifier for terrestrial TV, with built-in power supply unit. It amplifies the VHF and UHF bands separately and has an independent gain control for each band. It includes four outputs to make the distribution to 4 or more televisions. The outputs are equal or unbalanced.
Applications
Designed to enlarge analogue and digital terrestrial TV installations within an apartment or house. It amplifies the TV signal so a distribution with several new outlets can be made from the signal of one TV outlet or from the coaxial cable entering the house. The levels are easily adjusted by means of the two gain controls.
Characteristics
Made from ABS plastic, with an internal zamak chassis which gives maximum shielding. The power supply unit is insulated from the rest of the high frequency circuit, complying with the safety regulations for the installer and the user. Fixed to the wall by means of the supplied screws and wall-plugs. F type connectors.
Specifications:
Brand: ALCAD
Model : AI-400
Output : 4
Frequency range : UHF 470-862 MHz , VHF 47-318MHz
Gain : UHF28 ±2.0db , VHF20 ±1.0db
Flatness response : UHF ±1.8 , VHF ±0.8
Gain adjustment : UHF 12 , VHF 16
Output level : dBµV 102 99 86 86 81 82
Isolation between outputs : 10
return loss I/0 : 10
Chroma – luminance delay : <11 ns
Noise figure : UHF 3.3 ±0.3 , VHF 4.2 ±0.2
Main Voltage : 7, 2
Operating temperature : -10..+65°C
Protection index : IP 20
