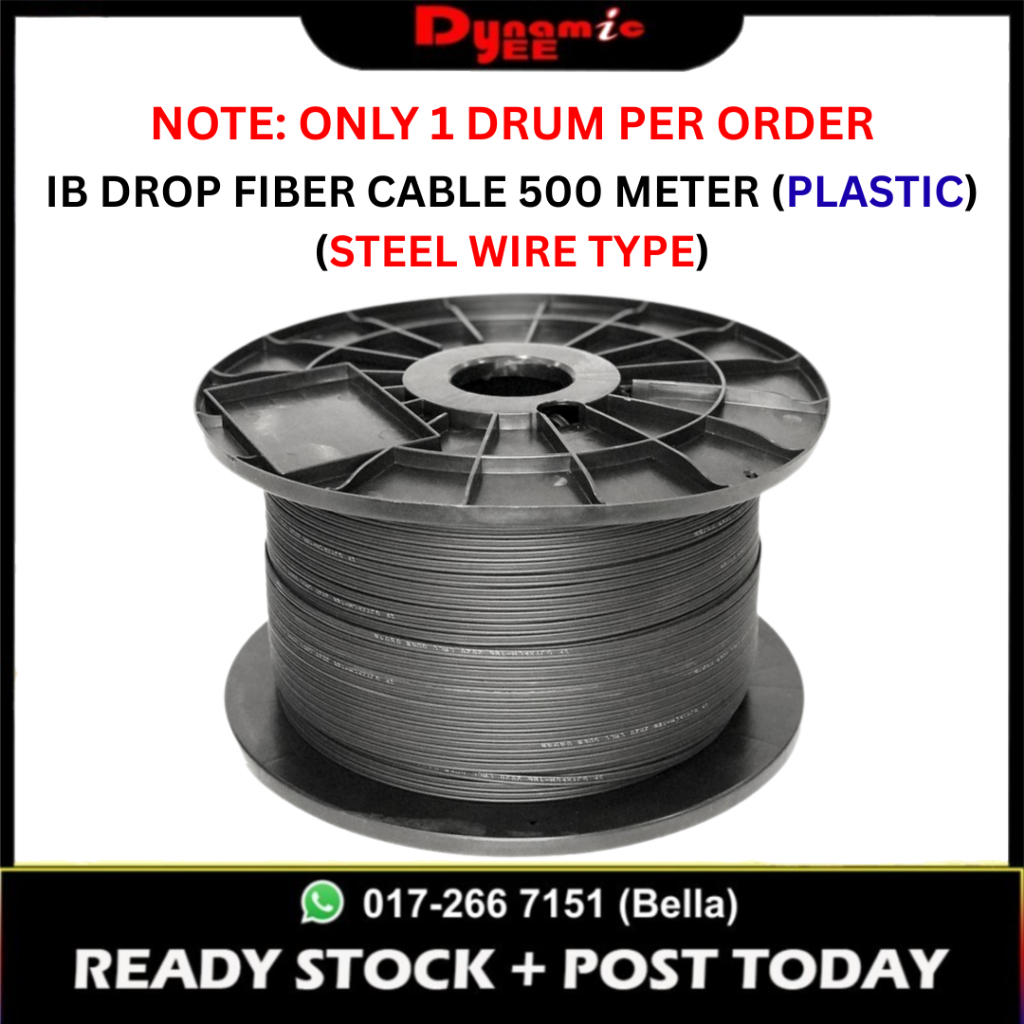

FTTH 1 Core Outdoor IB Drop Fiber Cable (steel wire type) (White Core) 500m GJYXCH -1B6a2 G657A2 IB701

FTTH 1-Core Outdoor IB Drop Fiber Cable (Steel-Wire Type) — White Core | 500 m
Model: GJYXCH-1B6a2 (G.657A2) | SKU: IB701

Highlights
IB (Integrated Bearer) steel-wire messenger for extra tensile strength & pole/wall runs
1-core, G.657A2 bend-insensitive fiber — tighter bends, stable loss for FTTH drops
Outdoor rated: UV-resistant jacket; suitable for aerial/wall/duct routes
Figure-8 style for easy clamping; clean separation from messenger when terminating
White fiber core for quick identification during splicing/termination

Typical Specs (summary)
Fiber type: Single-mode G.657A2 (ITU-T), 9/125 μm
Construction: Figure-8 IB drop with steel-wire messenger
Core count: 1 core (white)
Outer jacket: Outdoor UV-resistant (drop cable grade)

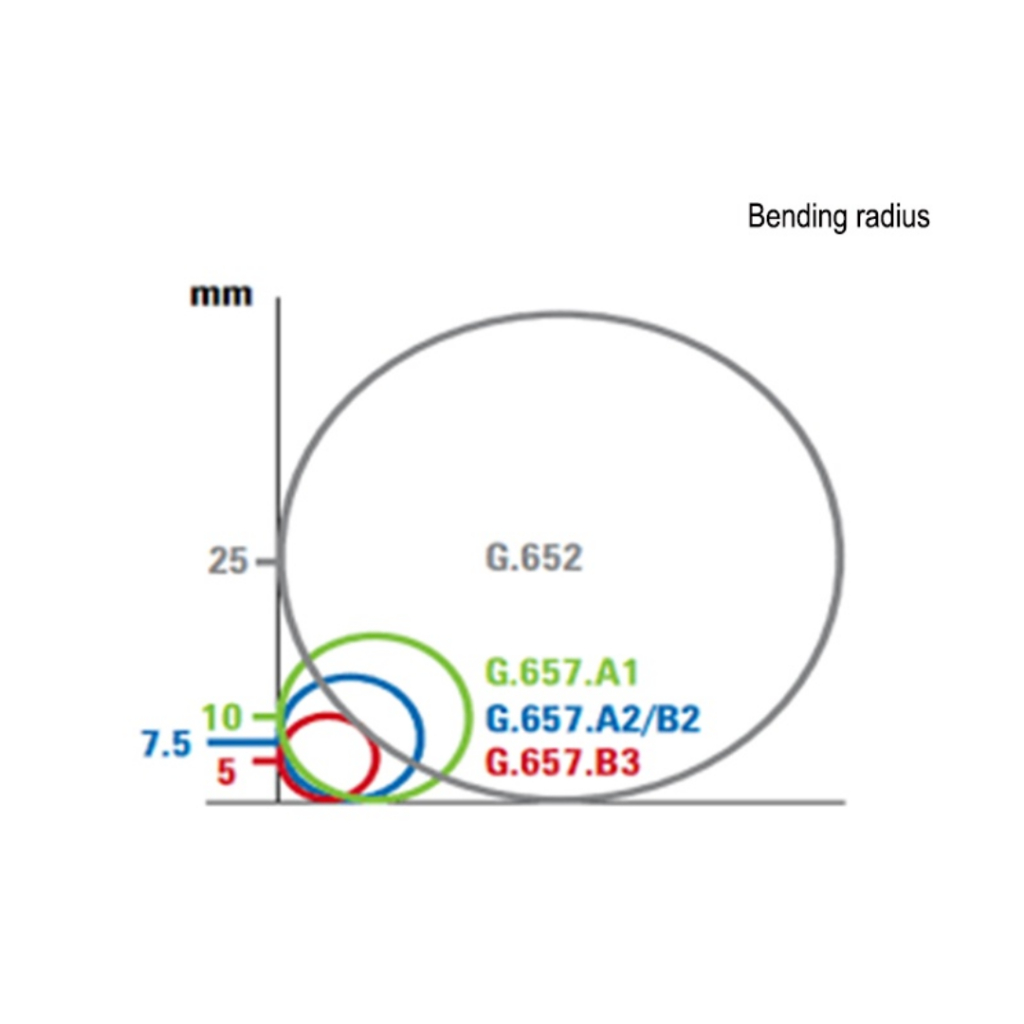

Min. bend radius: tight-bend compliant (G.657A2 class)
Length: 500 m per drum/coil

Applications
FTTH last-mile subscriber drops
Aerial span to façade entry, wall/duct routing
CCTV/SMATV single-fiber runs (with appropriate optics)

Compatibility
Works with standard SC/APC or SC/UPC pigtails/adapters (use matching connectors)
Terminate via mechanical splice or fusion splice to pigtails
